Omron NYB1E-C13C6 [197/276] Caution
![Omron NYB1E-C1006 [197/276] Caution](/views2/1872506/page197/bgc5.png)

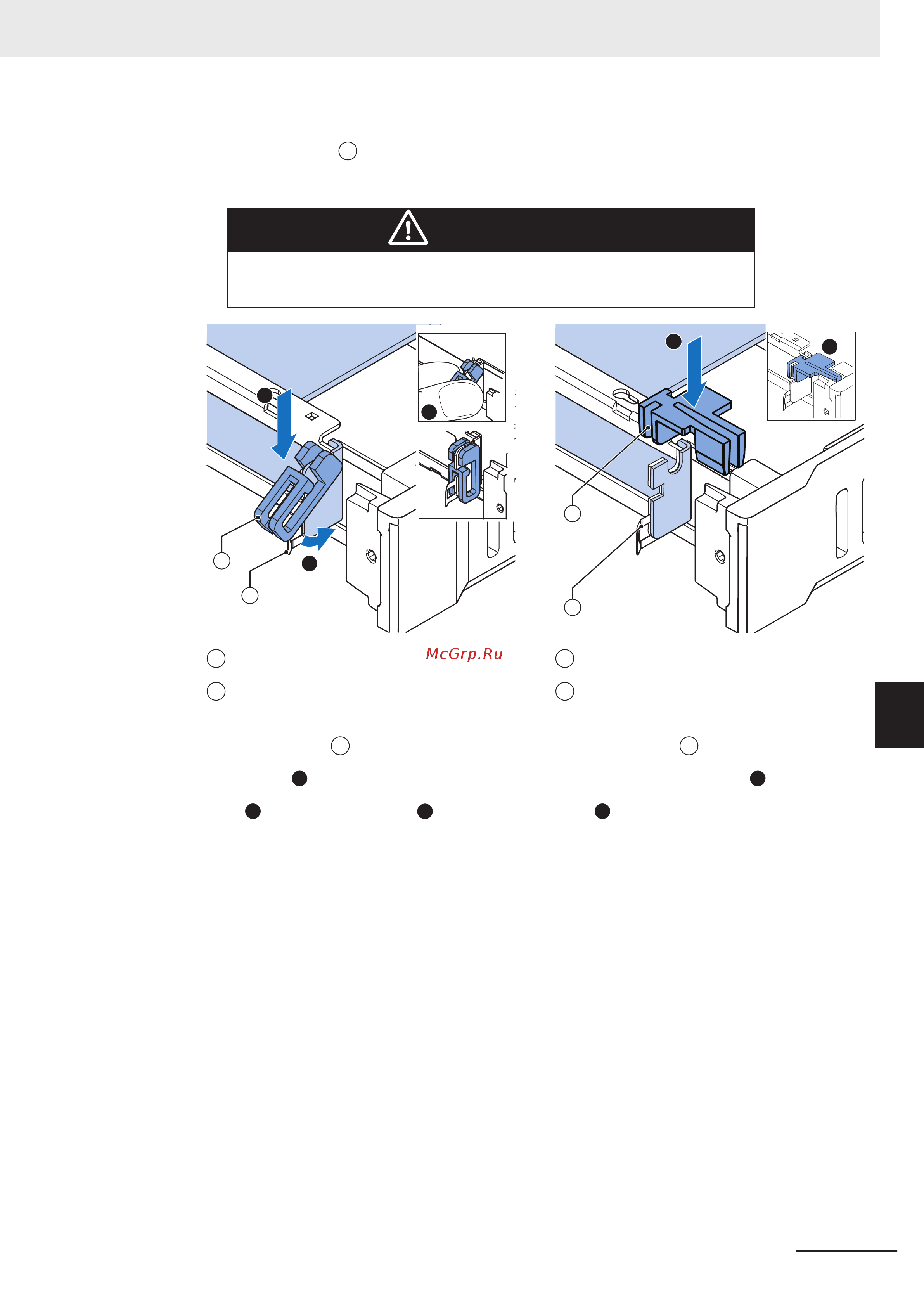

8 Place the Card Clip
A
in the PCIe Card and PCIe Drawer.
There are two types of Card Clips available. Use the steps applicable to your type.
CAUTION
When installing or removing a PCIe card, avoid touching the sharp edges
of the sheet metal frame tab. Injury may result.
1
3
2
B
A
1
2
A
B
A
Card Clip
B
Sheet metal frame tab
Place the Card Clip
A
in the PCIe Card and
PCIe Drawer
1
, grip the Card Clip on the
sides
2
and then rotate the Clip
3
to lock it
in place.
A
Card Clip
B
Sheet metal frame tab
Place the Card Clip
A
in the PCIe Card and
PCIe Drawer and push it down
1
to lock it in
place
2
.
7 Maintenance
7-19
NY-series Industrial Box PC Hardware User's Manual (W553)
7-2 Corrective Maintenance
7
7-2-6 Replace the PCIe Card
