7-2-6
Replace the PCIe Card
Use the following procedure to replace the PCIe Card.
Prepare:
•
The PCIe Card
Additional Information
Refer to 4-1-8 PCIe Card Specifications on page 4-14 for PCIe specifications.
• The PCIe Card mounting materials: Card Clip and Card Support
These are supplied with the Industrial Box PC.
T
o replace the PCIe Card:
1 Power OFF the system.
2 Unmount the Box PC.

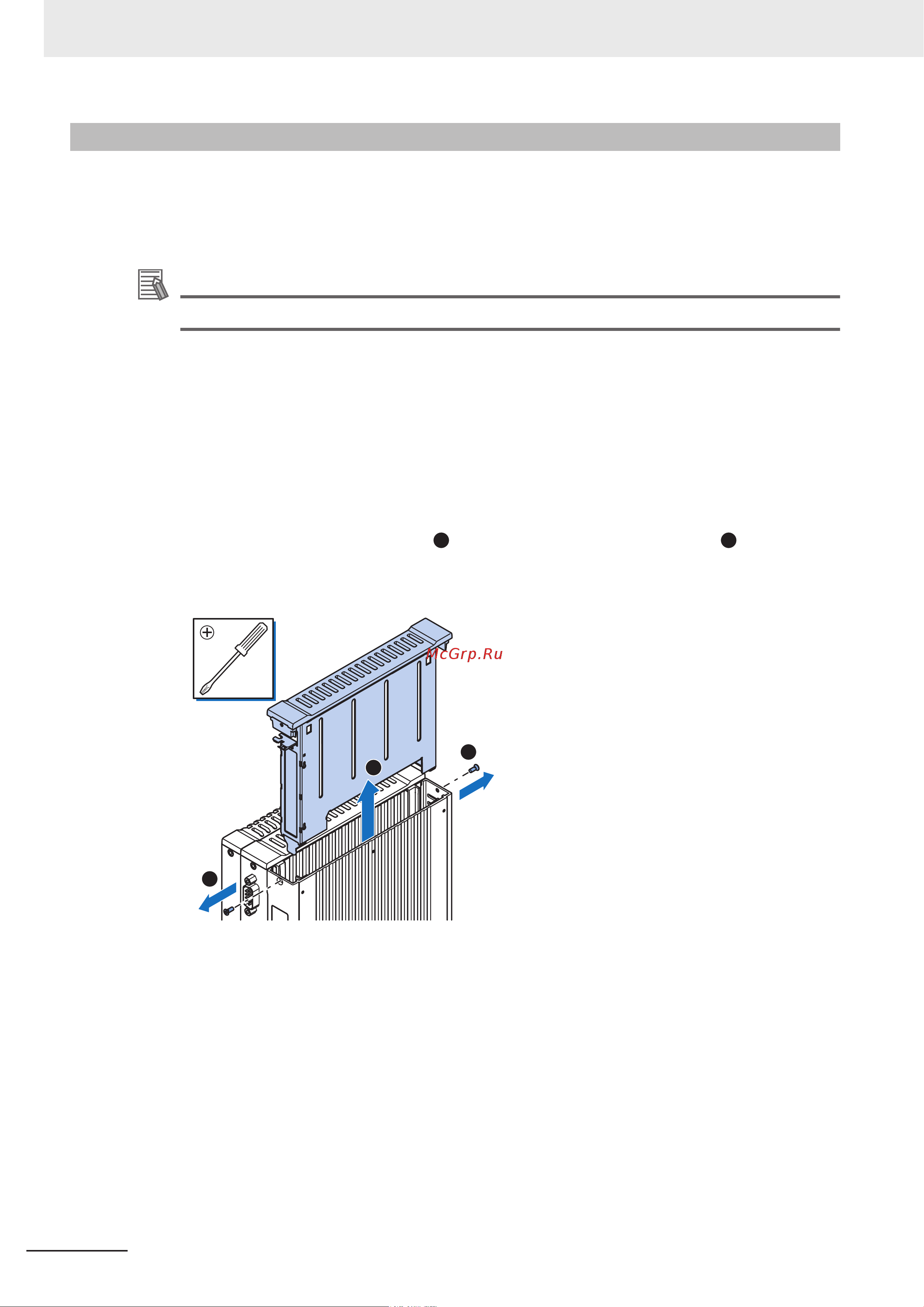

3 Remove the two crosshead screws
1
indicated with "open" and then pull up
2
the PCIe
Drawer.
The indent at the side of the drawer will help you to pull the drawer from the Box PC.
2
1
1
7 Maintenance
7-16
NY-series Industrial Box PC Hardware User's Manual (W553)
