6-4
React to Windows Messages
Windows uses the Windows Action Center icon
A
in the system tray area
B
of Windows to present
Warnings and Errors.
AB
A B
Windows 10 Windows 7

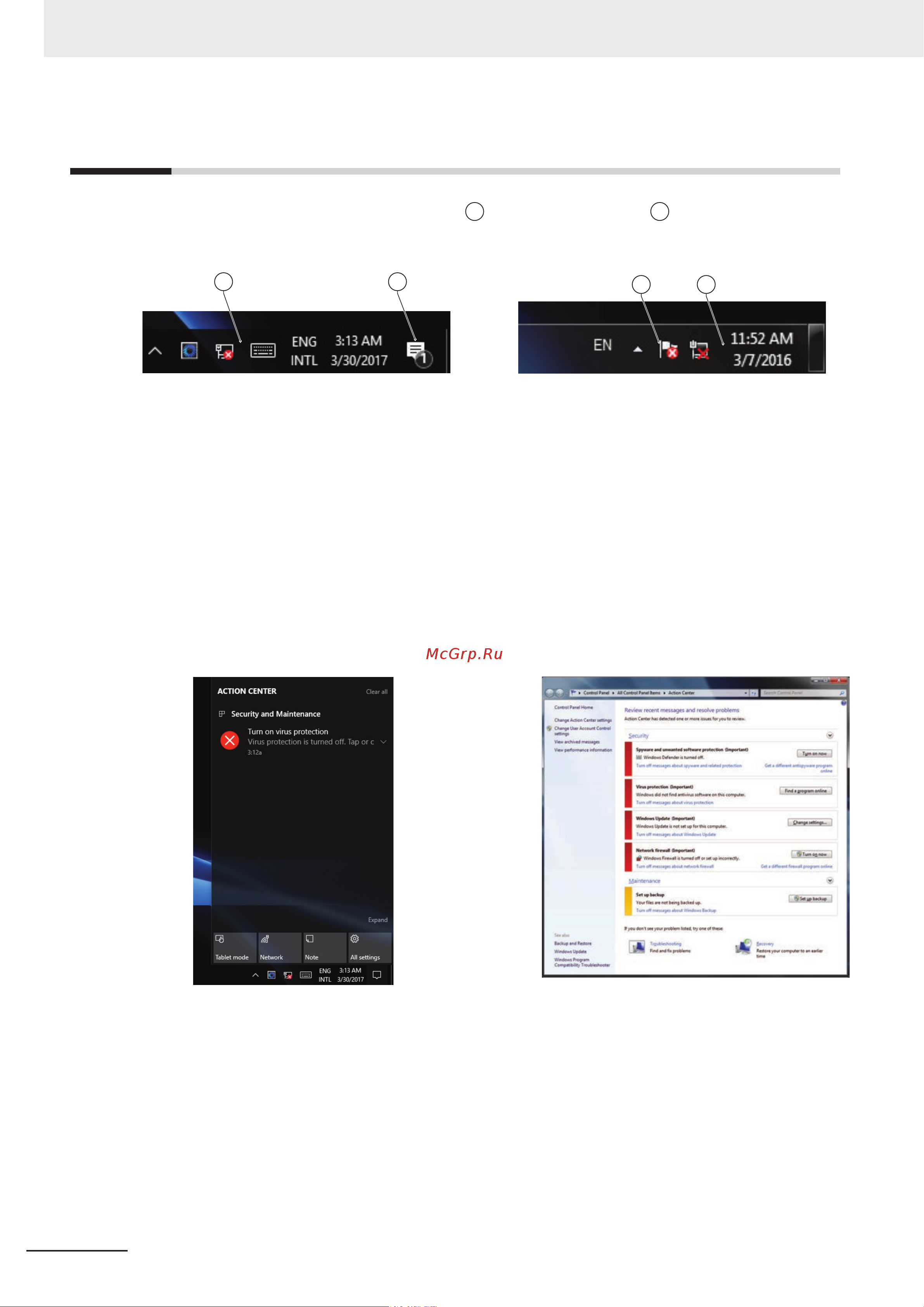

Check the Windows Action Center icon for a Warning or Error symbol.
A Warning or Error symbol displayed on the Windows Action Center
icon indicates a Windows mes-
sage.
To react to a Windows message:
1 Open the Windows Action Center.
• For Windows 10: Click the Windows Action Center icon.
•
For Windows 7: Right-click the Windows Action Center icon and select Open Action Center
from the pop-up window.
A pop-up window will appear.
Windows 10 Windows 7
2 Read the message available in the window.
3 Perform the actions until each Warning or Error is resolved.
The Windows messages for the Industrial Box PC are resolved.
