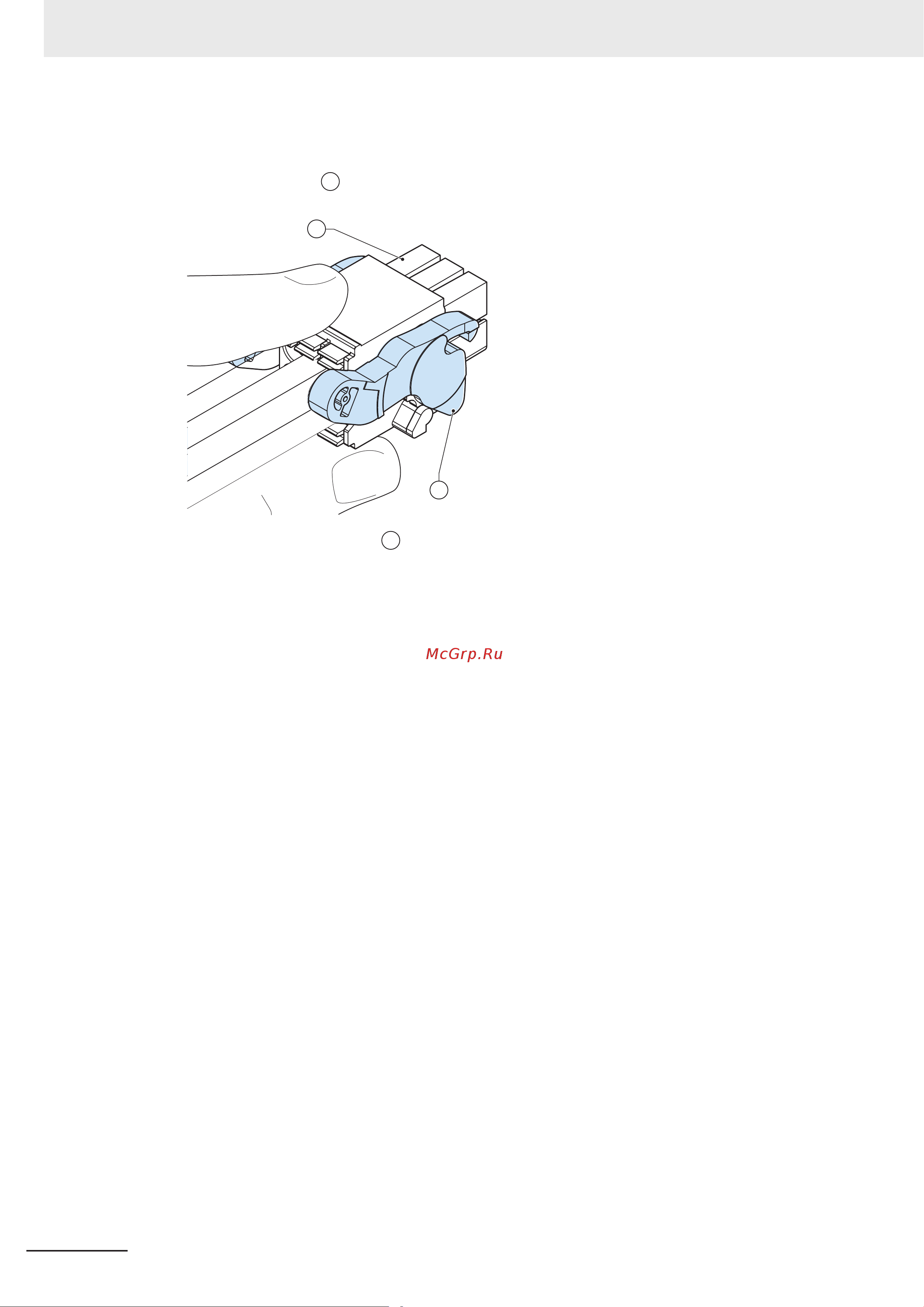

3 Connect the I/O connector.
Hold the black part
A
when inserting the connector, this enables the auto-locking mechanism.
B
A
Do not tilt the orange levers
B
because this will unlock the connector.
4 Connect an external monitor such as the Industrial Monitor.
Connect the monitor to the DVI connector and tighten the fastening screws or use the optional
NYML connector.
For an Industrial Panel PC
and for several other IPC configurations this is optional.
5 Connect all remaining connectors and tighten the fastening screws when applicable.
6 Connect the USB ports to peripheral devices .
7 Connect the Box PC to the Ethernet interface connector(s).
The Box PC is connected.
5 Installation
5-44
NY-series Industrial Box PC Hardware User's Manual (W553)
