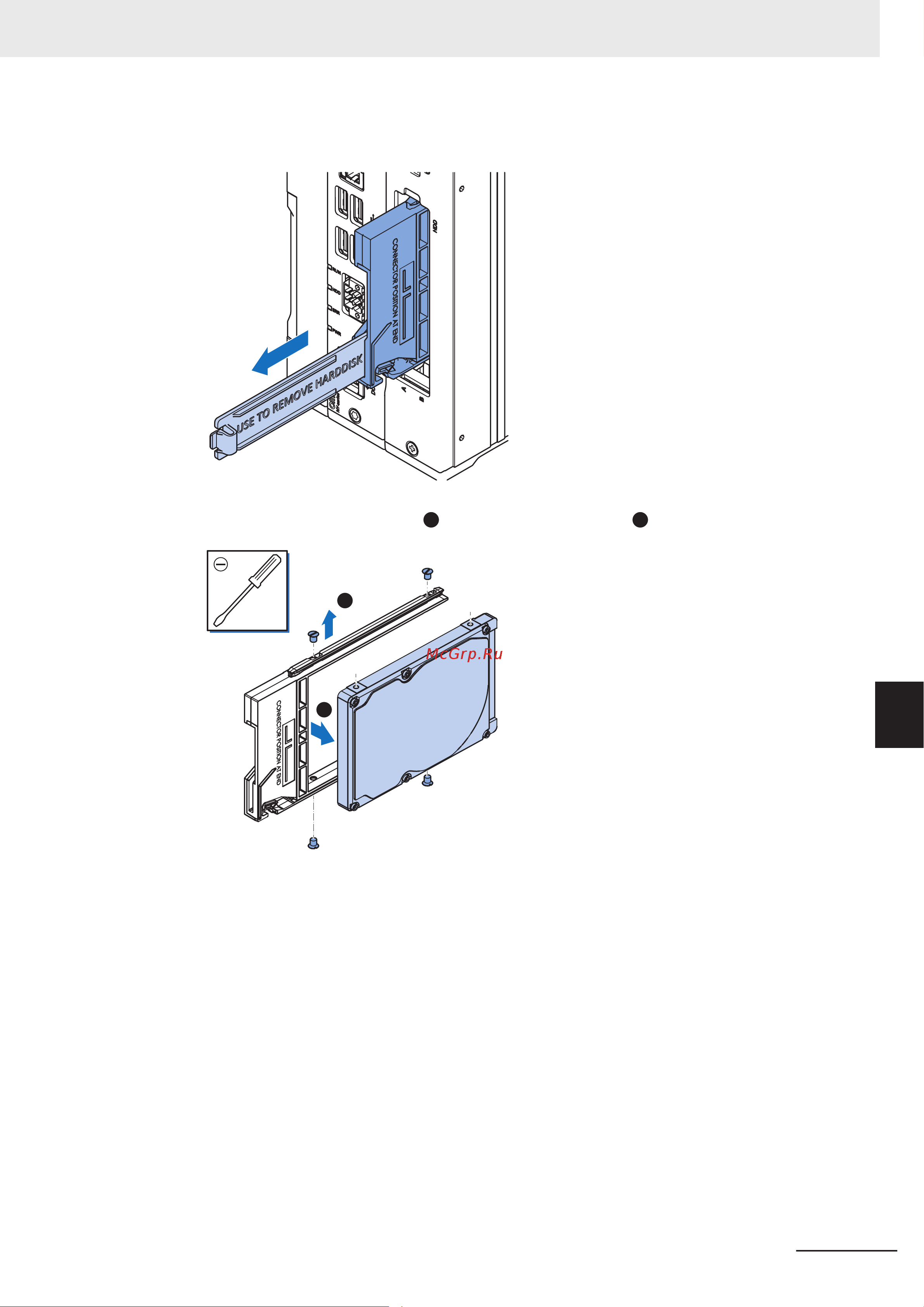

5 Remove the drive bracket from the Box PC using the drive cover.
6 Remove the 4 mounting screws
1
and then remove the drive
2
from the drive bracket.
1
2
7 Maintenance
7-13
NY-series Industrial Box PC Hardware User's Manual (W553)
