Omron NYB1E-C13C6 [128/276] Installation
![Omron NYB1E-C13C6 [128/276] Installation](/views2/1872506/page128/bg80.png)

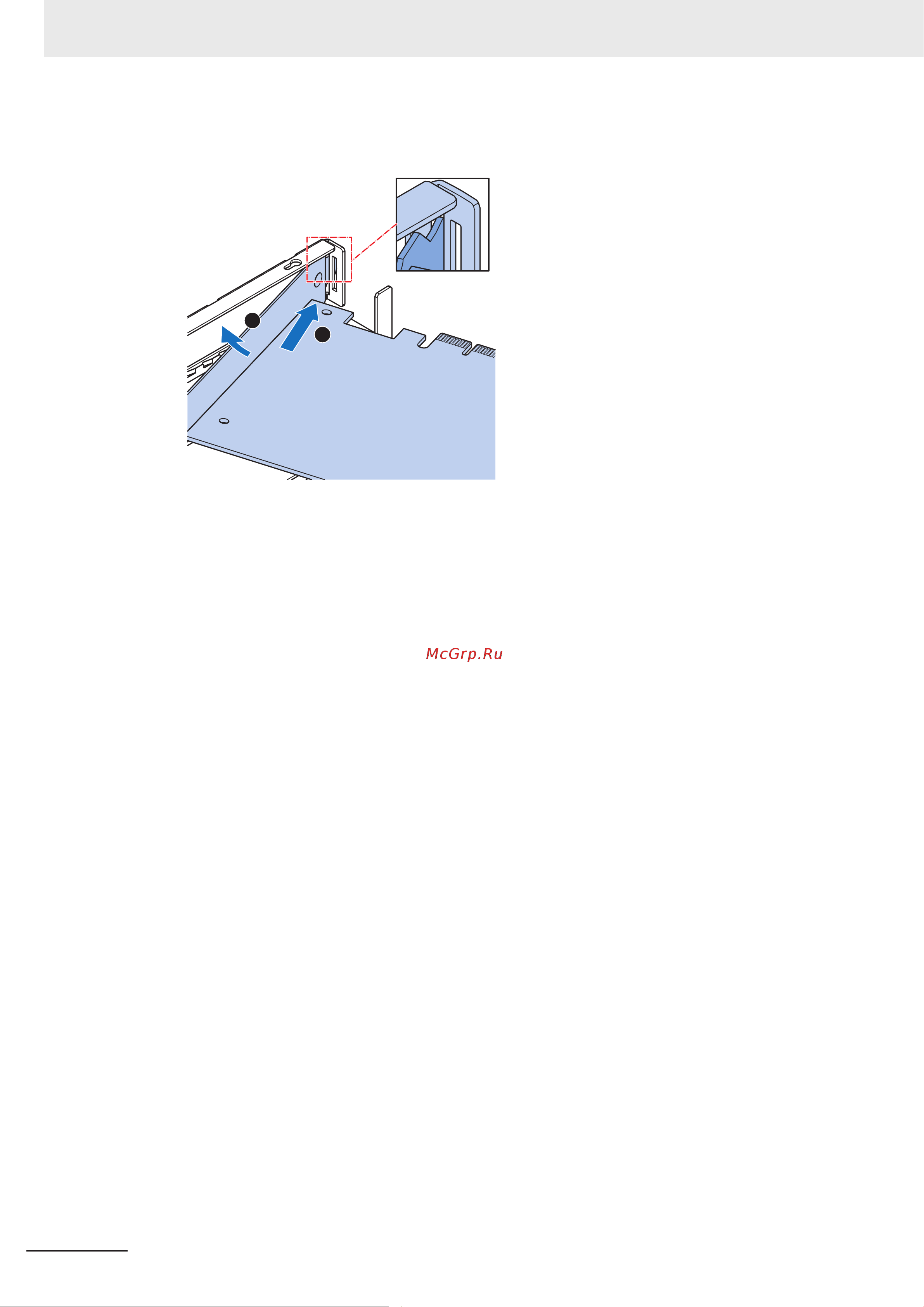

5 Place the PCIe Card in the PCIe Drawer.
1
2
Ensure to insert the PCIe Card in the correct opening.
Ensure the thin sheet metal frame is positioned between the PCIe Card and the PCIe Drawer
to ensure a good conductive contact.
5 Installation
5-12
NY-series Industrial Box PC Hardware User's Manual (W553)
