4-2-7

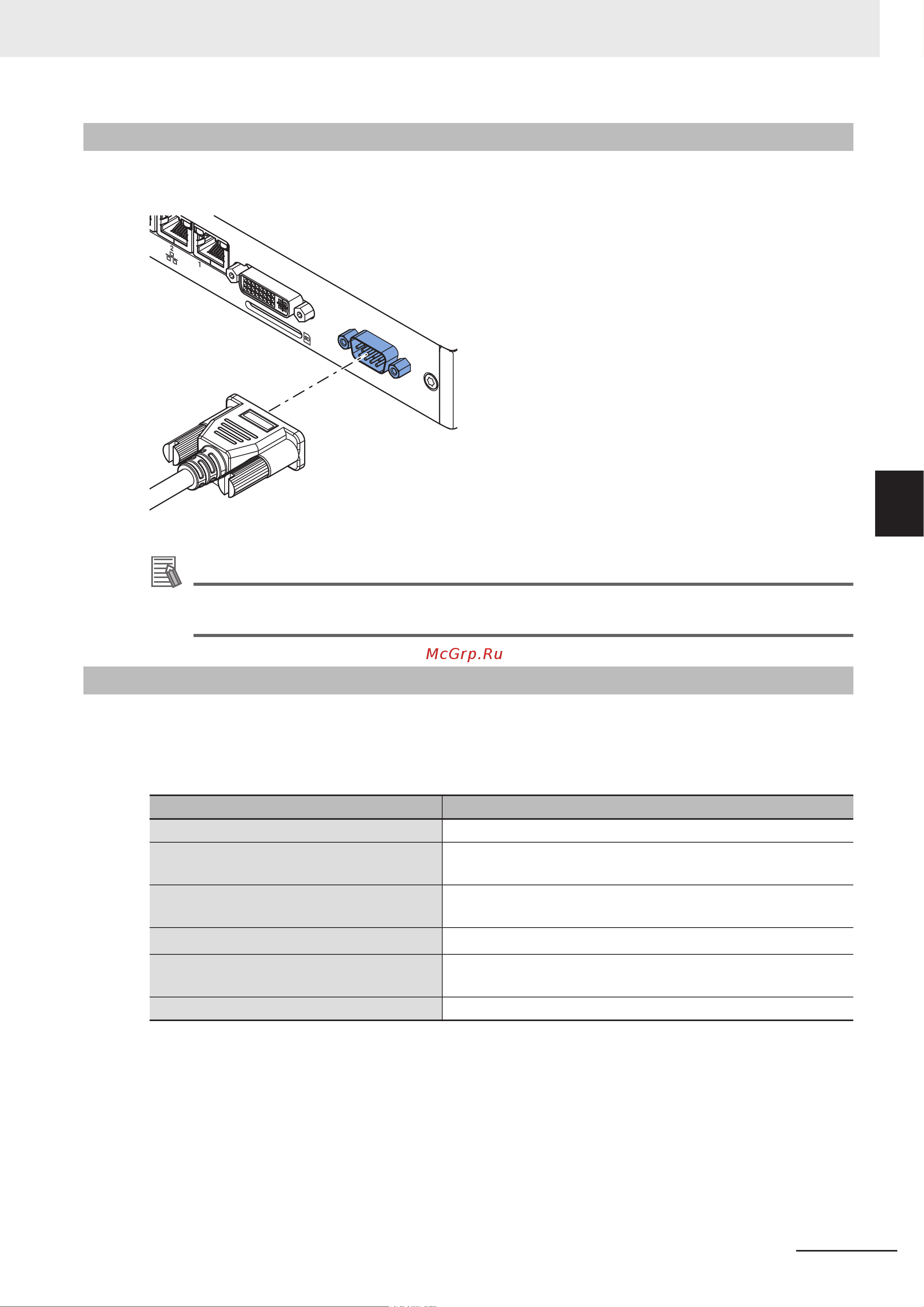

RS-232C Connector Specifications
The optional RS-232C interface on the Box PC uses a standard SUBD9 connector.
The RS-232C interface is not isolated from the internal
Box PC's components.
Additional Information
• Refer to 5-4-2 Ground on page 5-29 for grounding details.
•
Refer to A-3 RS-232C Connector Pin Details on page A-70 for pin details.
4-2-8
NY Monitor Link Connector Specifications
The optional NY Monitor Link connector connects an OMRON Industrial Monitor with an OMRON In-
dustrial PC that has an NY monitor link connector.
The NY Monitor Link communication is a combination of video and USB information.
Item Specifications
Connector type RJ45
Transmission media Twisted pair cable of category 6A or higher (double-shielded
straight cable with copper braiding and aluminum foil)
Maximum cable length between Industrial
PC and Industrial Monitor
100 m
Topology
Line (direct) connection only
*1
Video resolution 1,280 x 800 pixels at 60 Hz (12", 15")
1,920 x 1,080 pixels at 60 Hz (19")
Data throughput rate 280 Mbps max.
*1. Use a direct connection between the OMRON Industrial PC and the OMRON Industrial Monitor.
Do not use:
• Ethernet switches
• Ethernet hubs
• Daisy chain connections
The NY Monitor Link connector locks automatically to prevent unintentional disconnection.
4 Specifications
4-29
NY-series Industrial Box PC Hardware User's Manual (W553)
4-2 Connector Specifications
4
4-2-7 RS-232C Connector Specifications
