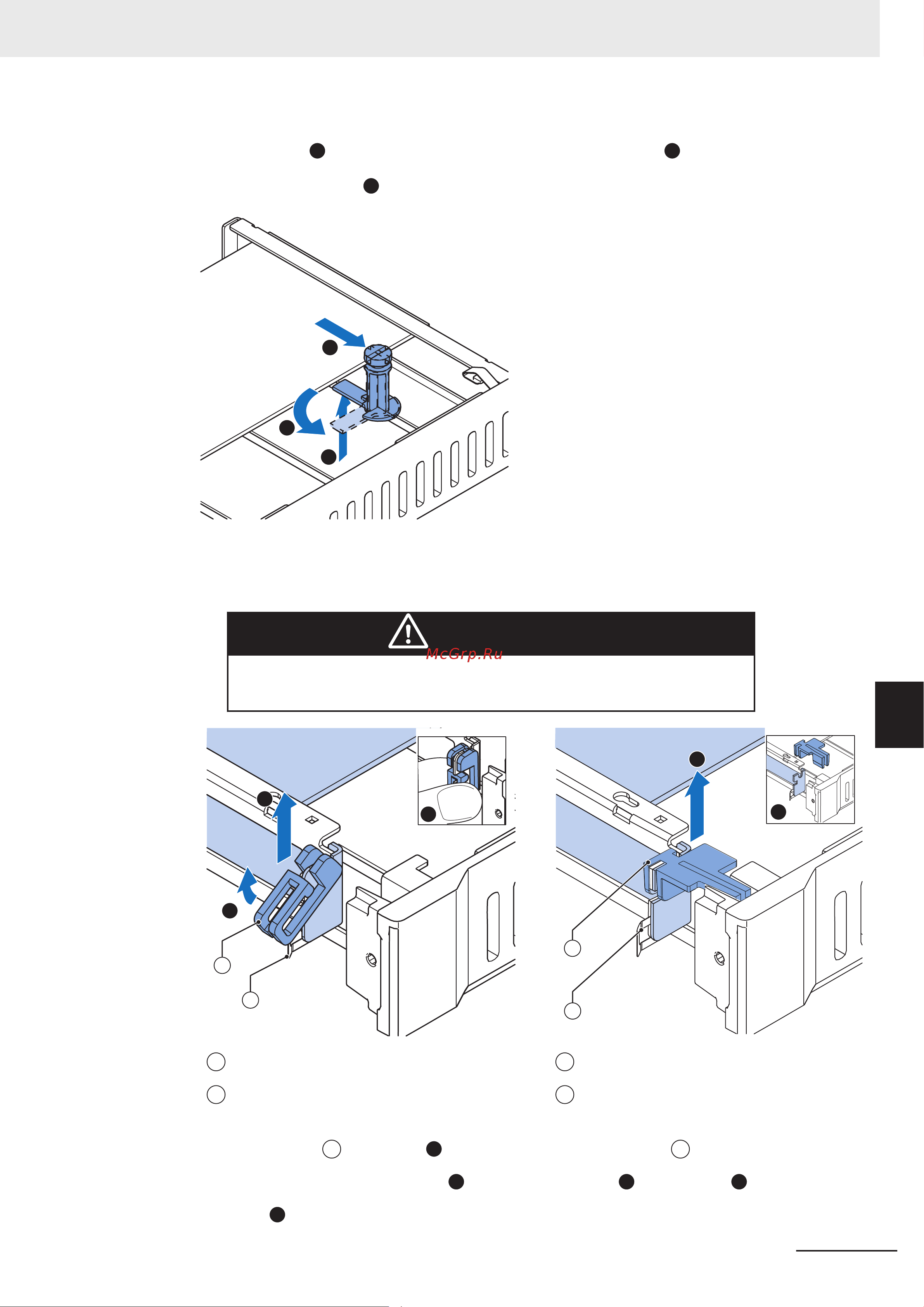

4 Push the notch
1
at the bottom of the Card Support up and rotate
2
the Card Support.
Slide the Card Support
3
away from the card to create space and to remove it.
2
1
3
5 Remove the Card Clip from the PCIe Drawer.
There are two types of Card Clips available. Use the steps applicable to your type.
CAUTION
When installing or removing a PCIe card, avoid touching the sharp edges
of the sheet metal frame tab. Injury may result.
3
2
1
B
A
1
2
A
B
A
Card Clip
B
Sheet metal frame tab
Grip the Card Clip
A
on the sides
1
. Pull
the middle of the Card Clip to unlock it
2
and
remove it
3
from the PCIe Drawer.
A
Card Clip
B
Sheet metal frame tab
Grip the Card Clip
A
on the sides. Lift the
Card Clip
1
and remove it
2
from the PCIe
Drawer.
7 Maintenance
7-17
NY-series Industrial Box PC Hardware User's Manual (W553)
7-2 Corrective Maintenance
7
7-2-6 Replace the PCIe Card
