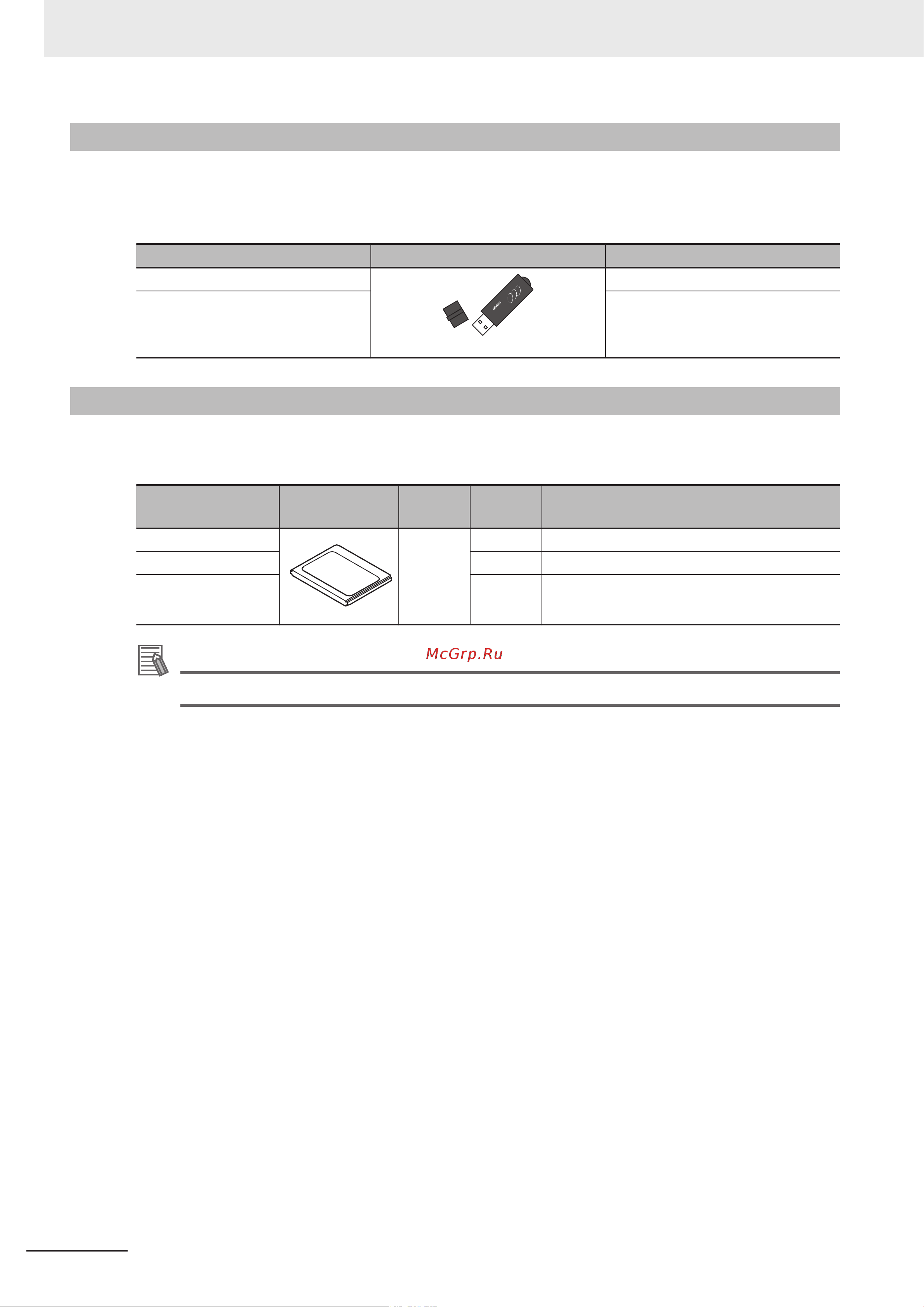

3-10-3
USB Flash Drives
USB Flash Drive details are provided below.
OMRON is not responsible for the operation, performance, or write life of any other brand of USB
Flash Drives.
Model Appearance Capacity
FZ-MEM2G
FZ-MEM2G
2 GB
FZ-MEM8G 8 GB
3-10-4
CFast Cards
CFast Card details are provided below.
OMRON is not responsible for the operation, performance, or write life of any other CFast Card.
Model Appearance
Storage
type
Capacity Details
NY000-AT00
CF
a
s
t
CFast
Card
64 GB Innodisk DECFA-64GM41BW1DC
NY000-AT01 128 GB Innodisk DECFA-A28M41BW1DC
NY000-AT02 256 GB Innodisk DECFA-B56M41BW1DC
Additional Information
Refer to CFast Card Specifications on page 4-13 for CFast Card specifications.
3 Hardware
3-24
NY-series Industrial Box PC Hardware User's Manual (W553)
