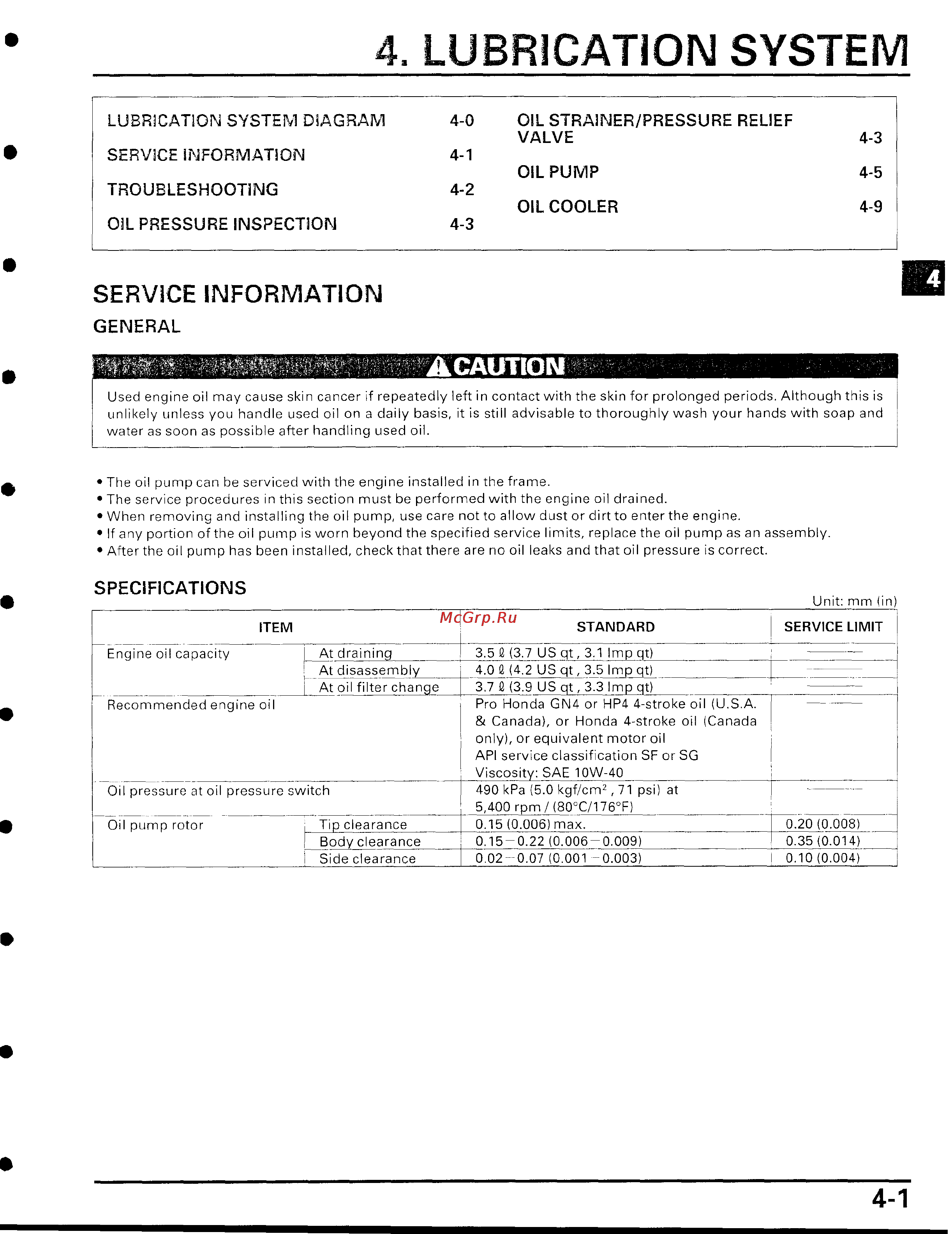

LUBRICATION SYSTEM DIAGRAM
~
4-0
~
OIL STRAINER/PRESSURE RELIEF
VALVE
~
4-3
SERVICE INFORMATION
~
4-1
OIL PUMP
TROUBLESHOOTING
~
4-2
OIL COOLER
OIL PRESSURE INSPECTION
~
4-3
4-5
4-9
SERVICE INFORMATION
GENERAL
L
R CATION SYSTEM
7P
;
AkCAUTION
PI,
Used engine oil may cause skin cancer if repeatedly left in contact with the skin for prolonged
periods
. Although this is
unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and
water as soon as possible after handling used oil
.
•
~
The oil pump can be serviced with the engine installed in the frame
.
•
~
The service procedures in this section must be performed with the engine oil drained
.
•
~
When removing and installing the oil pump, use care not to allow dust or dirt to enter the engine
.
•
~
If any portion of the oil pump is worn beyond the specified service limits, replace the oil pump as an assembly
.
•
~
After the oil pump has been installed, check that there are no oil leaks and that oil pressure
is correct
.
SPECIFICATIONS
ITEM
STANDARD
Unit
: mm (in)
SERVICE LIMIT
Engine oil capacity
~
At draining
~
3
.5 Q (3
.7 US qt, 3
.1
Imp qt)
At disassembly
~
4
.0 Q
(4
.2 US qt,
3
.5 Imp qt)
At
oil filter change
~
3
.7 Q (3
.9 US qt, 3
.3 Imp qt)
~
-
~
Recommended engine oil
~
Pro Honda GN4 or HP4 4-stroke oil
(U
.S
.A
.
& Canada), or Honda 4-stroke oil (Canada
only), or equivalent motor oil
API service classification SF or SG
_~
Viscosity
: SAE 1OW-40
~
Oil pressure at oil pressure switch
~
490 kPa (5 .0 kgf/cm
2
,
71 psi) at
~
5,400 rpm / (80°C/176°F)
~
Oil pump rotor
~
T
Tip clearance
~
0
.15 (0
.006) max
.
~
0
.20 (0
.008)
_
Body clearance
~
0
.15
-
0
.22 (0
.006
-
0
.009)
~
0
.35 (0
.014)
I
Side clearance
~
0
.02-0
.07 (0
.001
-
0
.003)
~
1
0
.10 (0
.004)
~
