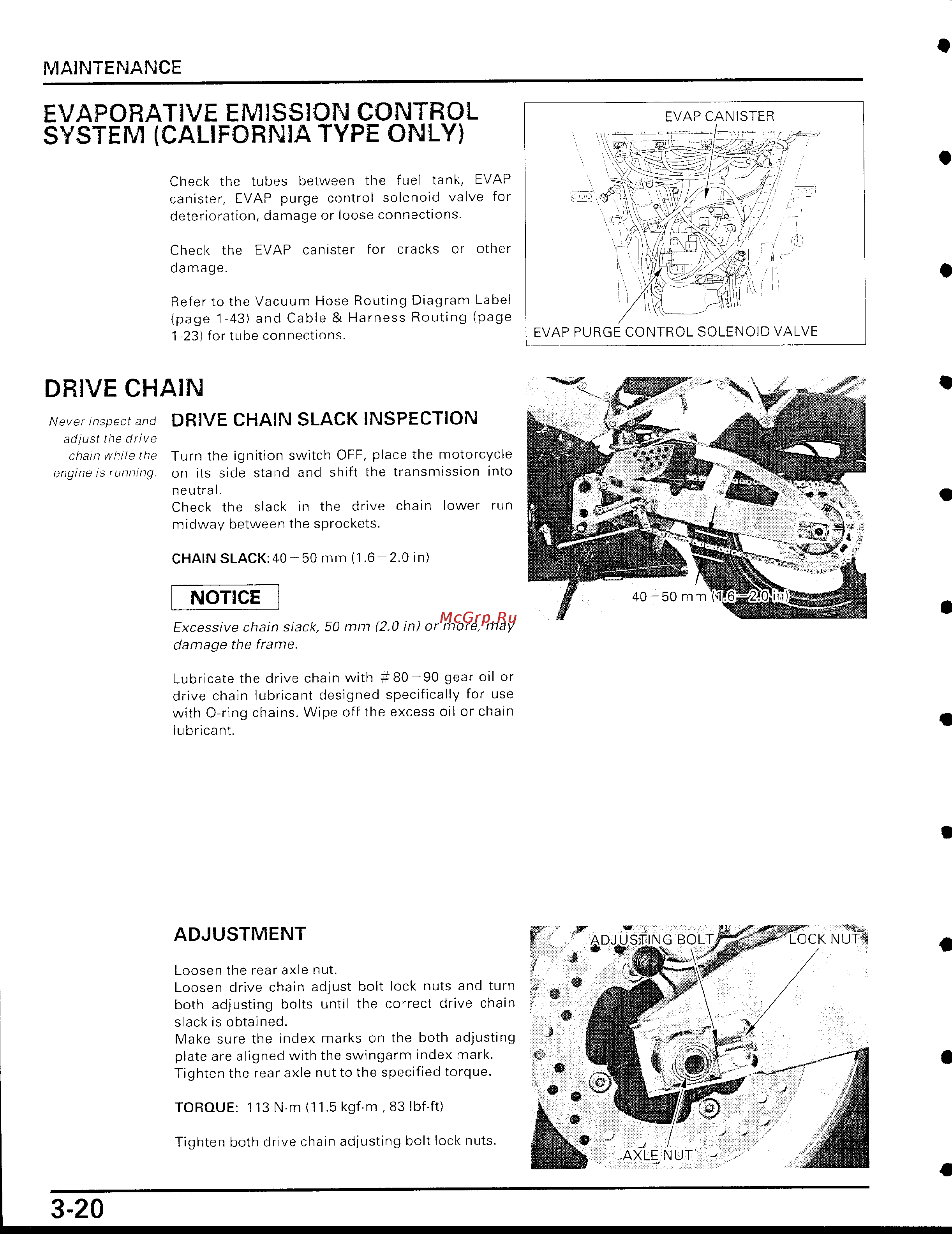

MAINTENANCE
EVAPORATIVE EMISSION CONTROL
SYSTEM (CALIFORNIA TYPE ONLY)
Check the tubes between the fuel tank, EVAP
canister, EVAP purge control solenoid valve for
deterioration, damage or loose connections
.
Check the EVAP canister for cracks or other
damage
.
Refer to the Vacuum Hose Routing Diagram Label
(page 1-43) and Cable & Harness Routing (page
1-23) for tube connections
.
DRIVE CHAIN
Never inspect and
adjust the drive
chain while the
engine is running
.
DRIVE CHAIN SLACK INSPECTION
Turn the ignition switch OFF, place the motorcycle
on its side stand and shift the transmission into
neutral
.
Check the slack in the drive chain lower run
midway between the sprockets
.
CHAIN SLACK
:
40-50 mm (1
.6-2
.0 in)
NOTICE
Excessive chain slack, 50 mm (2
.0 in) or more, may
damage the frame
.
Lubricate the drive chain with =80-90 gear oil or
drive chain lubricant designed specifically for use
with O-ring chains
. Wipe off the excess oil or chain
lubricant
.
ADJUSTMENT
Loosen the rear axle nut
.
Loosen drive chain adjust bolt lock nuts and turn
both adjusting bolts until the correct drive chain
slack is obtained
.
Make sure the index marks on the both adjusting
plate are aligned with the swingarm index mark
.
Tighten the rear axle nut to the specified torque
.
TORQUE
:
113 N
•m
(11 .5 kgf
.m
,
83 Ibf
.ft)
Tighten both drive chain adjusting bolt lock nuts
.
EVAP CANISTER
T7
I
EVAP PURGE CONTROL SOLENOID VALVE
USTI' i BOL
~
LOCK NUT-'h
~
.
1
40
50 mm U
_AXLE NUT
r
0
0
i
I*
0
A*
