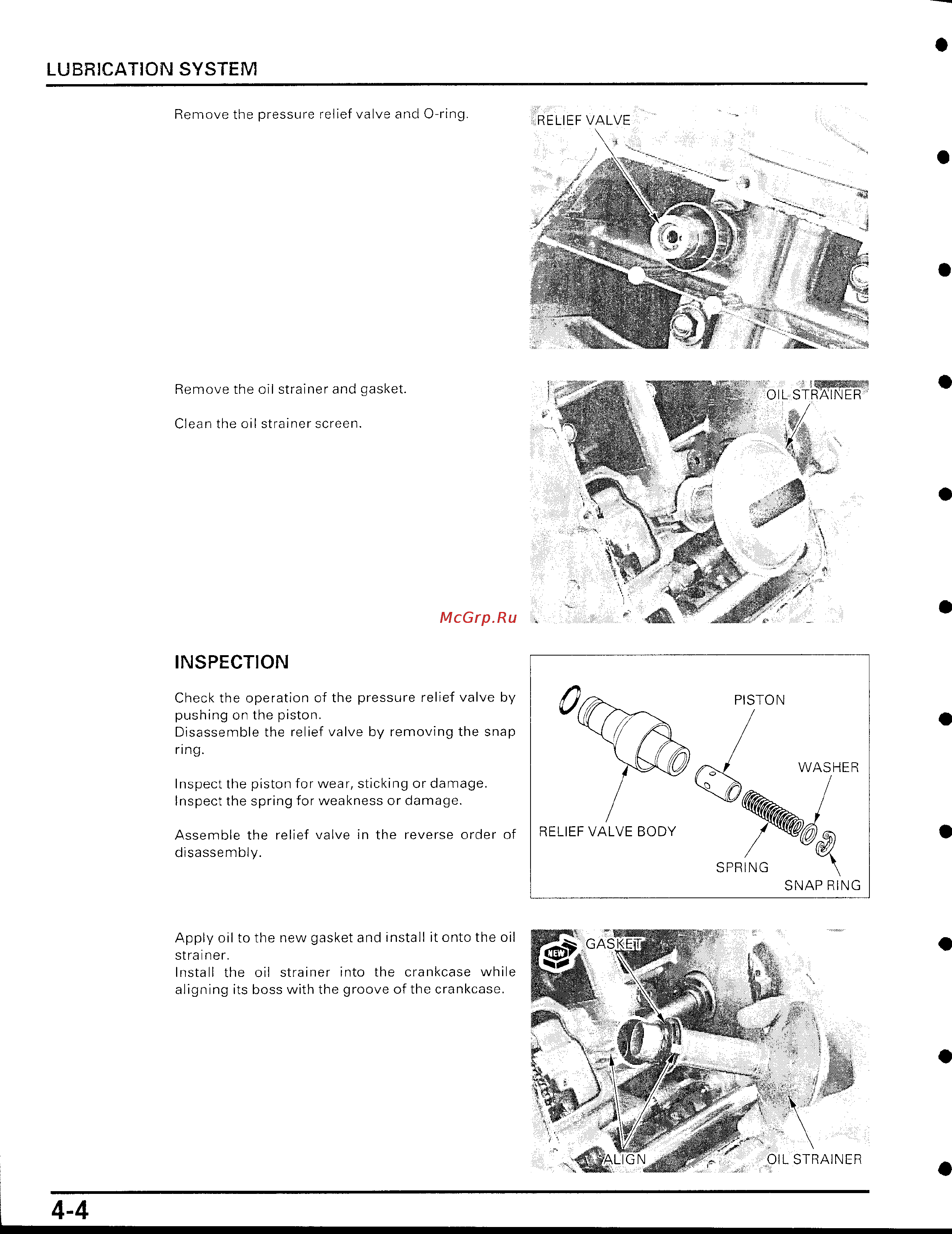

LUBRICATION SYSTEM
Remove the pressure relief valve and O-ring
.
Remove the oil strainer and gasket
.
Clean the oil strainer screen
.
INSPECTION
Check the operation of the pressure relief valve by
pushing on the piston
.
Disassemble the relief valve by removing the snap
ring
.
Inspect the piston for wear, sticking or damage
.
Inspect the spring for weakness or damage
.
Assemble the relief valve in the reverse order of
disassembly
.
Apply oil to the new gasket and install it onto the oil
strainer
.
Install the oil strainer into the crankcase while
aligning its boss with the groove of the crankcase
.
RELIEF VALVE
0
q
x&
RELIEF VALVE BODY
SPRING
SNAP RING
0
PISTON
WASHER
0
GASI<
E1 I '3
N
~
OIL STRAINER
