![Honda CBR929RR [241/488] Page 17](/views2/1121098/page241/bgf1.png)
0
0
0
100
i
W
0

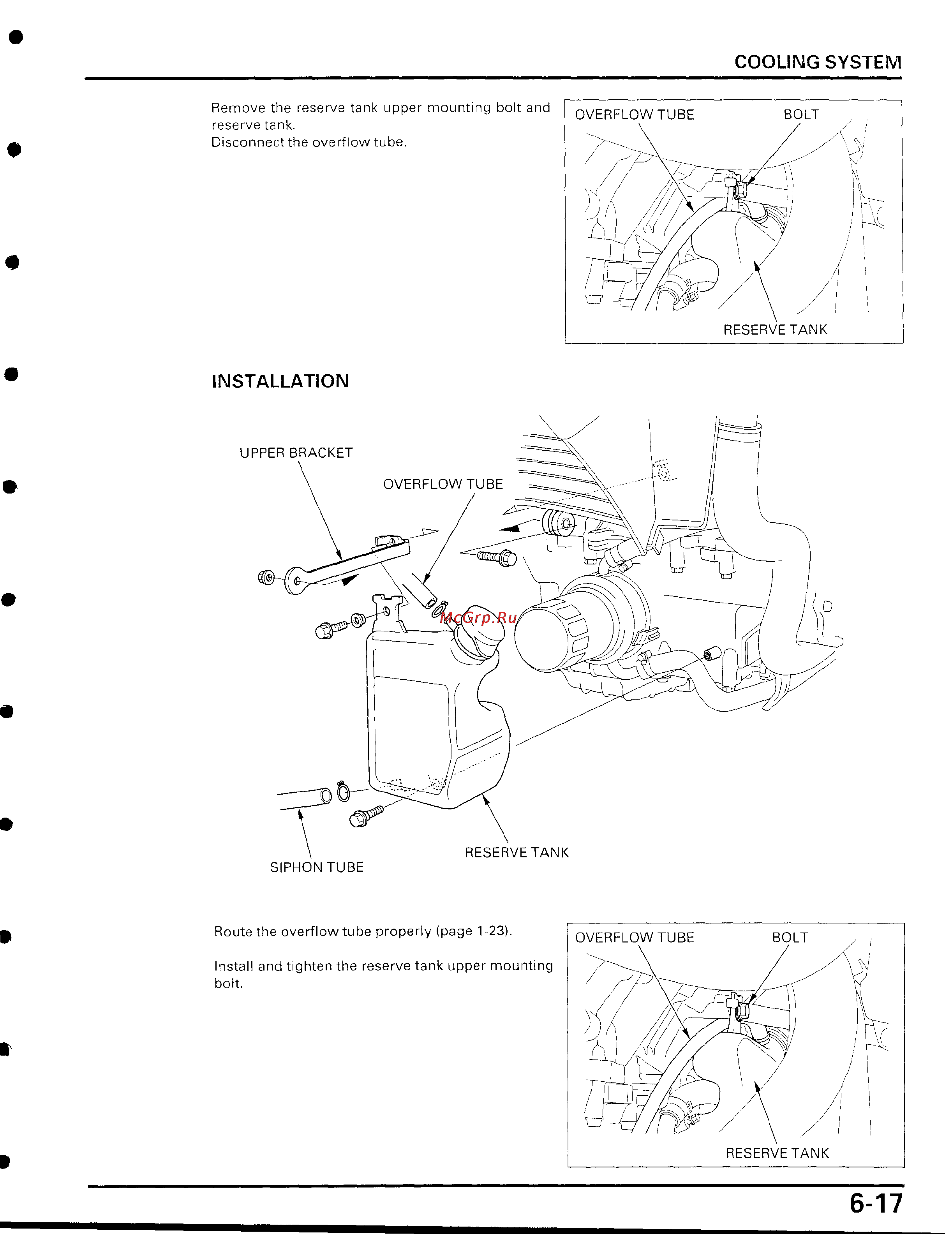

Remove the reserve tank upper mounting bolt and
reserve tank
.
Disconnect the overflow tube
.
INSTALLATION
UPPER BRACKET
*10, 01)
a
~
00"
,
SIPHON TUBE
OVERFLOW TUBE
0
RESERVE TANK
Route the overflow tube properly (page 1-23)
.
Install and tighten the reserve tank upper mounting
bolt
.
COOLING SYSTEM
OVERFLOW TUBE
~
BOLT
RESERVE TANK
0
0
OVERFLOW TUBE
0
J
ME
A
r
BOLT
0
o
RESERVE TANK
