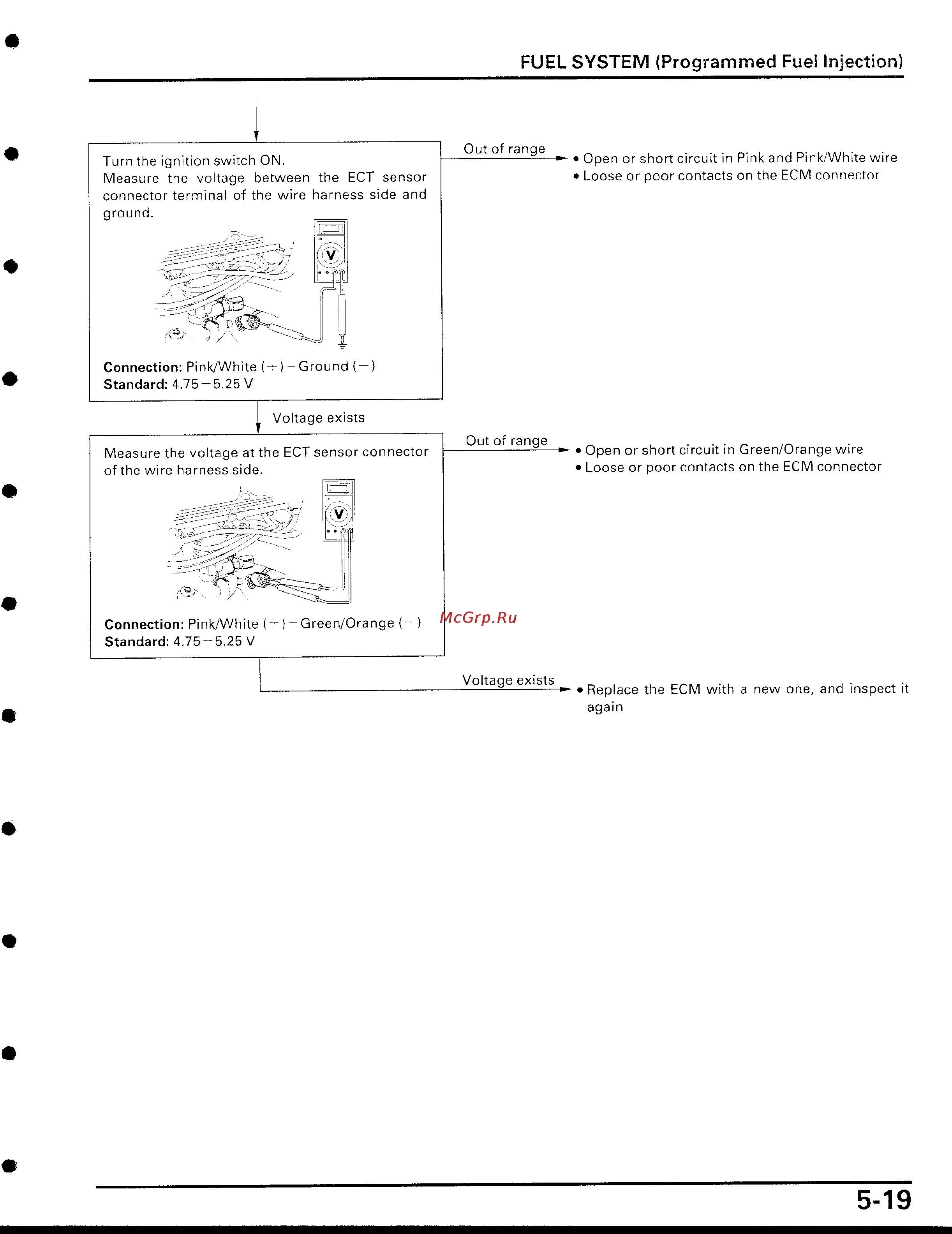

Turn the ignition switch ON
.
Measure the voltage between the ECT sensor
connector terminal of the wire harness side and
ground
.
Connection
:
Pink/White (+)-Ground
(-)
Standard
:
4
.75-5
.25 V
T
Measure the voltage at the ECT sensor connector
of the wire harness side
.
Connection
:
Pink/White (+)-Green/Orange
(-)
Standard
:
4
.75-5
.25 V
Voltage exists
Ou of range
Out of range
Voltage exists
FUEL SYSTEM (Programmed Fuel Injection)
•
~
Open or short circuit in Pink and Pink/White wire
•
~
Loose or poor contacts on the ECM connector
•
~
Open or short circuit in Green/Orange wire
•
~
Loose or poor contacts on the ECM connector
I
•
~
Replace the ECM with a new one, and inspect it
again
