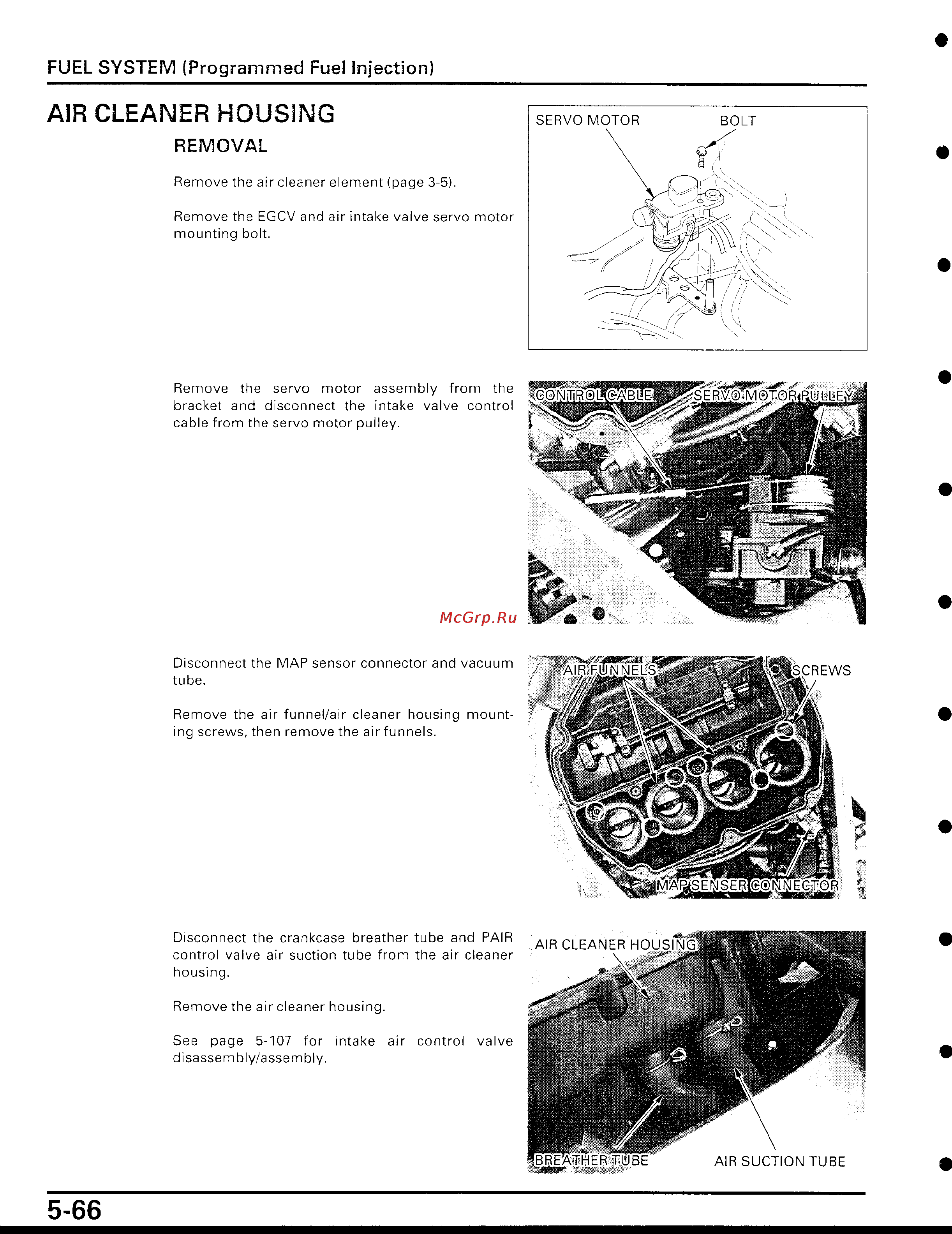

FUEL SYSTEM (Programmed
Fuel Injection)
AIR CLEANER HOUSING
REMOVAL
Remove the air cleaner element (page
3-5)
.
Remove the EGCV and air intake valve servo motor
mounting bolt
.
Remove the servo motor assembly from the
bracket and disconnect the intake valve control
cable from the servo motor pulley
.
Disconnect the MAP sensor connector and vacuum
tube
.
Remove the air funnel/air cleaner housing mount-
ing screws, then remove the air funnels
.
Disconnect the crankcase breather tube and PAIR
control valve air suction tube from the air cleaner
housing
.
Remove the air cleaner housing
.
See page 5-107 for intake air control valve
disassembly/assembly
.
SERVO MOTOR
~
BOLT
AIR CLEANER HC1 J l
B E
e- BLI
I
MOTOR PULL
REWS
1A SENSER CC l,
~
F R
i IBE
~
AIR SUCTION TUBE
