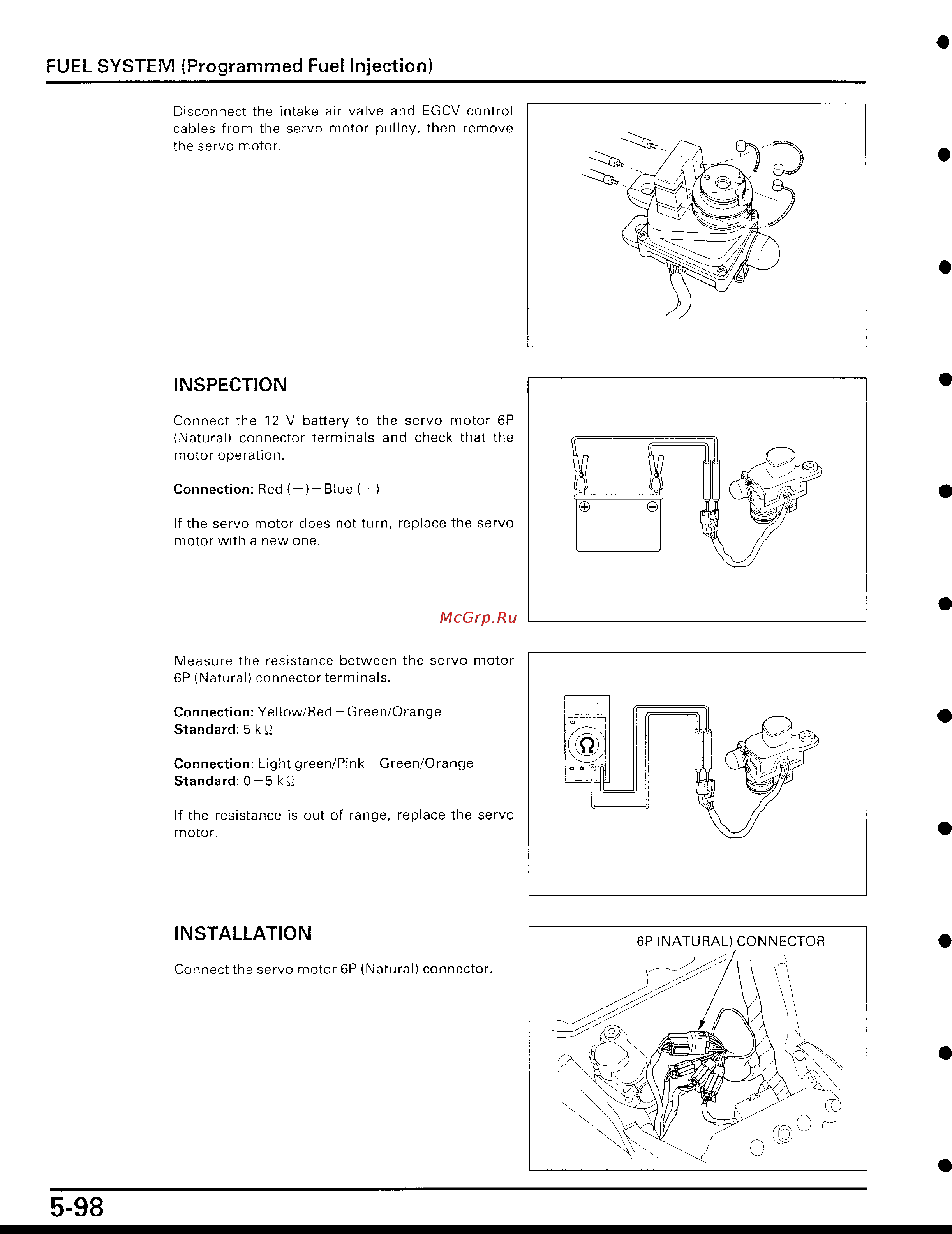

![Honda CBR929RR [211/488] Motor operatio](/views2/1121098/page211/bgd3.png)
FUEL SYSTEM (Programmed Fuel Injection)
Disconnect the intake air valve and EGCV control
cables from the servo motor pulley, then remove
the servo motor
.
INSPECTION
Connect the 12 V battery to the servo motor 6P
(Natural) connector terminals and check that the
motor operation
.
Connection
:
Red (+)-Blue
(-)
If the servo motor does not turn, replace the servo
motor with a new one
.
Measure the resistance between the servo motor
6P (Natural) connector terminals
.
Connection
:
Yellow/Red-Green/Orange
Standard
: 5 k
2
Connection
:
Light green/Pink-Green/Orange
Standard
:
0-5 k2
If the resistance is out of range, replace the servo
motor
.
INSTALLATION
Connect the servo motor 6P (Natural) connector
.
004
1010
a
J
t/
O
~
O
n
~
o
~
u∎
OOH
6P (NATURAL) CONNECTOR
mar_1141W
,
1
0
0
