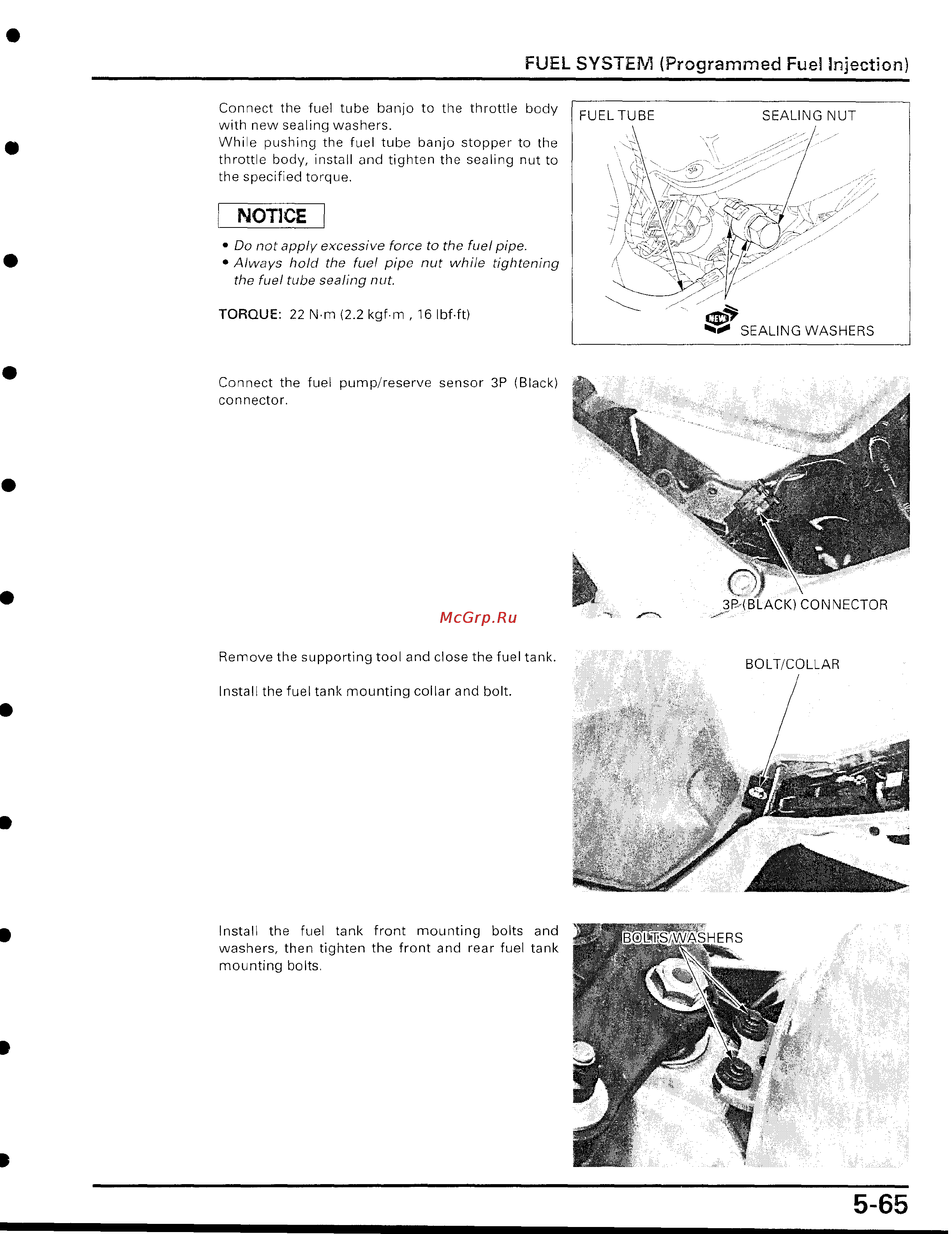

Honda CBR929RR [178/488] Page 65
![Honda CBR929RR [178/488] Page 65](/views2/1121098/page178/bgb2.png)
Connect the fuel tube banjo to the throttle body
with new sealing washers
.
While pushing the fuel tube banjo stopper to the
throttle body, install and tighten the sealing nut to
the specified torque
.
•
~
Do not apply excessive force to the fuel pipe
.
•
~
Always hold the fuel pipe nut while tightening
the fuel tube sealing nut
.
TORQUE
: 22 N
•m
(2
.2 kgf
•m
, 16 lbf
•f t)
40
0
0
0
S
NOTICE
Connect the fuel pump/reserve sensor 3P (Black)
connector
.
Remove the supporting tool and close the fuel tank
.
Install the fuel tank mounting collar and bolt
.
FUEL SYSTEM (Programmed Fuel Injection)
FUELTUBE
~
SEALING NUT
11
SEALING WASHERS
•
~
Install the fuel tank front mounting bolts and ERS
washers, then tighten the front and rear fuel tank
mounting bolts
.
I
3R (BLACK) CONNECTOR
BOLT/COLLAR
