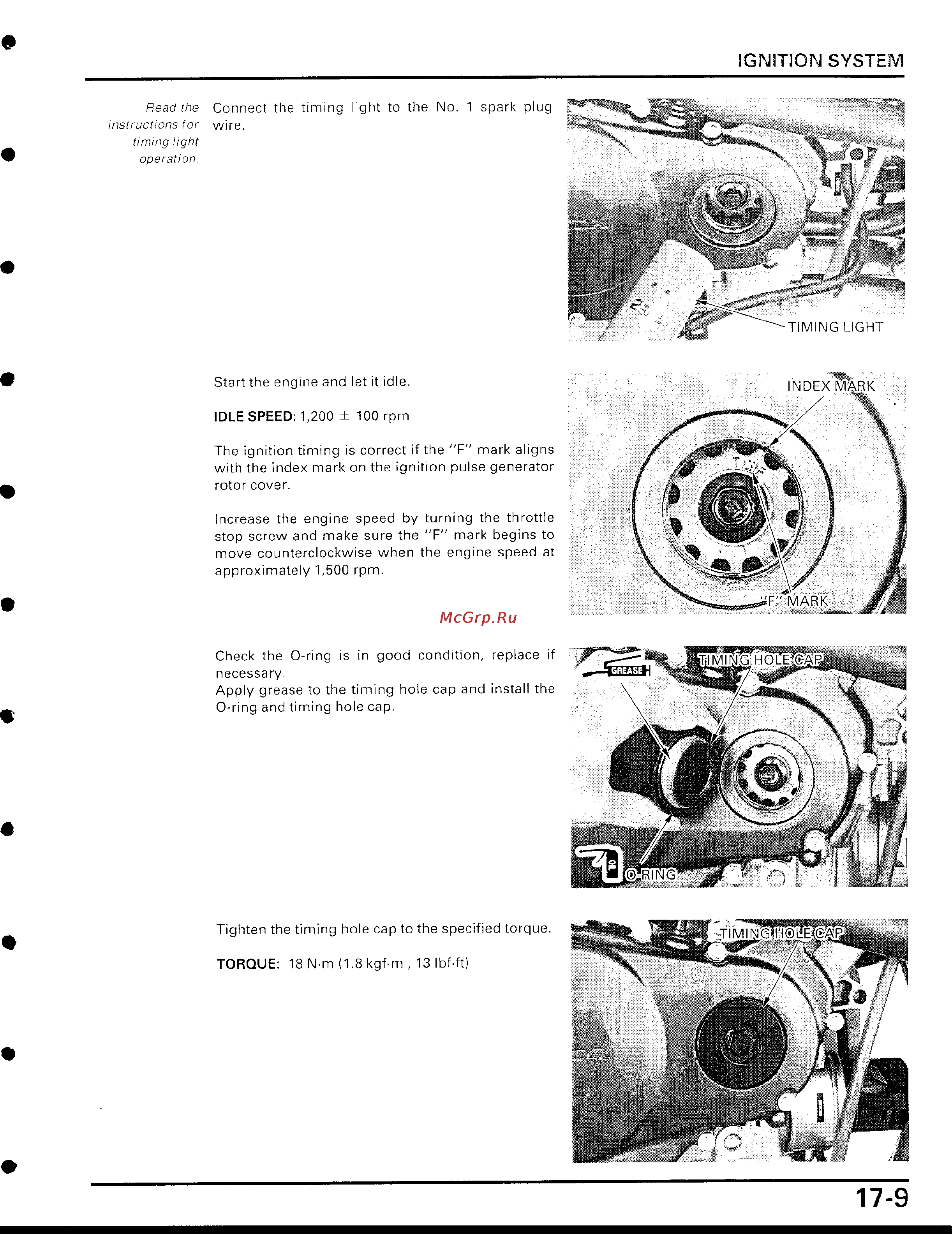

Connect the timing light to the No
. 1 spark plug
wire
.
Start the engine and let it idle
.
IDLE SPEED
:
1,200 ± 100 rpm
The ignition timing is correct if the "F" mark aligns
with the index mark on the ignition pulse generator
rotor cover
.
Increase the engine speed by turning the throttle
stop screw and make sure the "F" mark begins to
move counterclockwise when the engine speed at
approximately 1,500 rpm
.
Check the O-ring is in good condition, replace if
necessary
.
Apply grease to the timing hole cap and install the
0-ring and timing hole cap
.
Tighten the timing hole cap to the specified torque
.
TORQUE
: 18 N
•m
(1
.8 kgf
•m
,
13 Ibf
•f t)
IGNITION SYSTEM
IP,'I
~
L
--TIMING LIGHT
INDEX MARK
F MARK
1'
I
