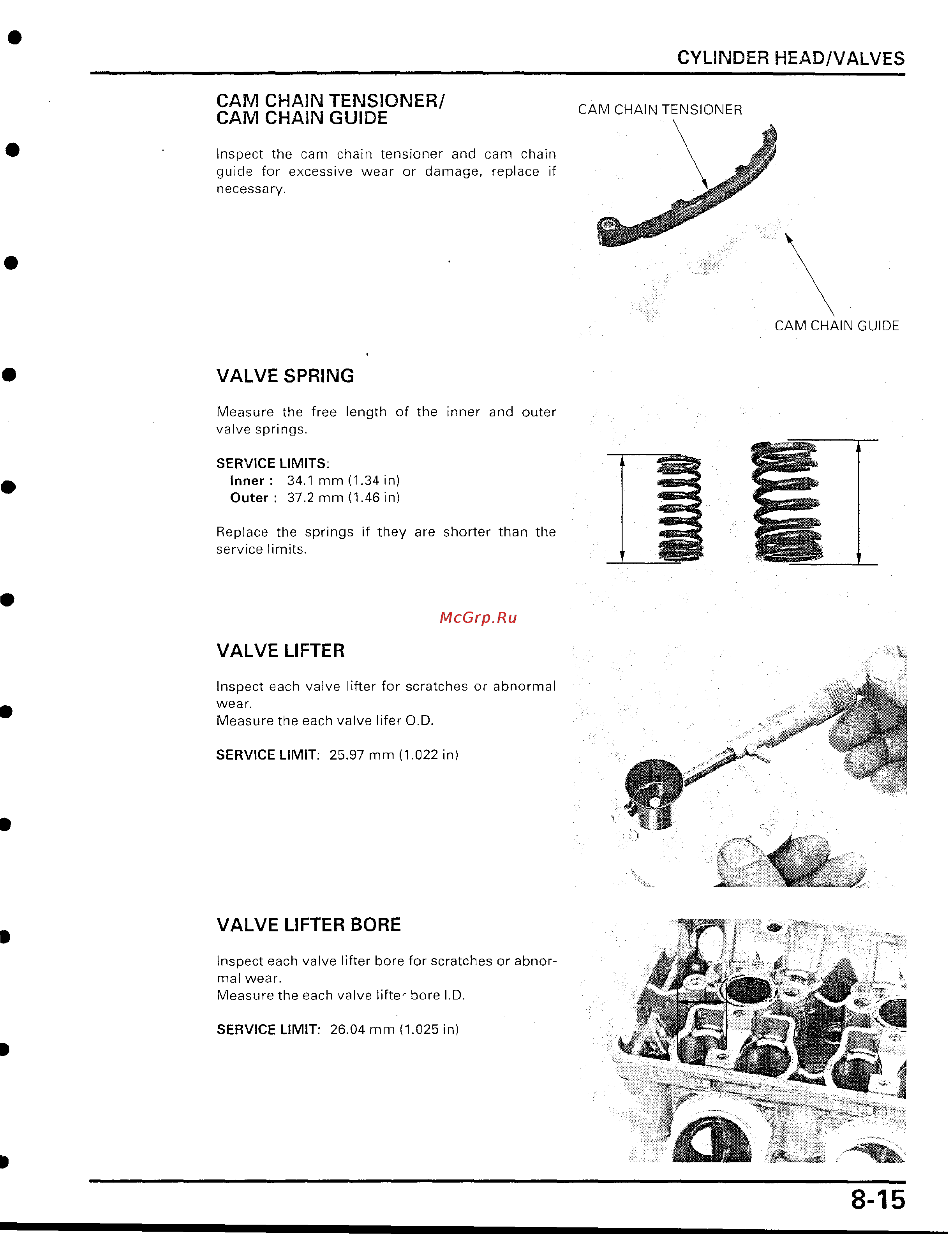

CAM CHAIN TENSIONER/
CAM CHAIN GUIDE
Inspect
the
cam
chain tensioner
and
cam
chain
guide
for
excessive
wear
or
damage,
replace
if
necessary
.
VALVE SPRING
Measure the free length of the inner and
outer
valve springs
.
SERVICE LIMITS
:
Inner
:
34
.1 mm (1
.34 in)
Outer
:
37
.2 mm (1
.46 in)
Replace the springs if they are shorter than the
service limits
.
VALVE LIFTER
Inspect each valve lifter for scratches or abnormal
wear
.
Measure the each valve lifer O
.D
.
SERVICE LIMIT
:
25
.97 mm (1
.022 in)
VALVE LIFTER BORE
Inspect each valve lifter bore for scratches or abnor-
mal wear
.
Measure the each valve lifter bore I
.D
.
SERVICE LIMIT
:
26
.04 mm (1
.025 in)
CAM CHAIN TENSIONER
CYLINDER HEAD/VALVES
CAM CHAIN GUIDE
