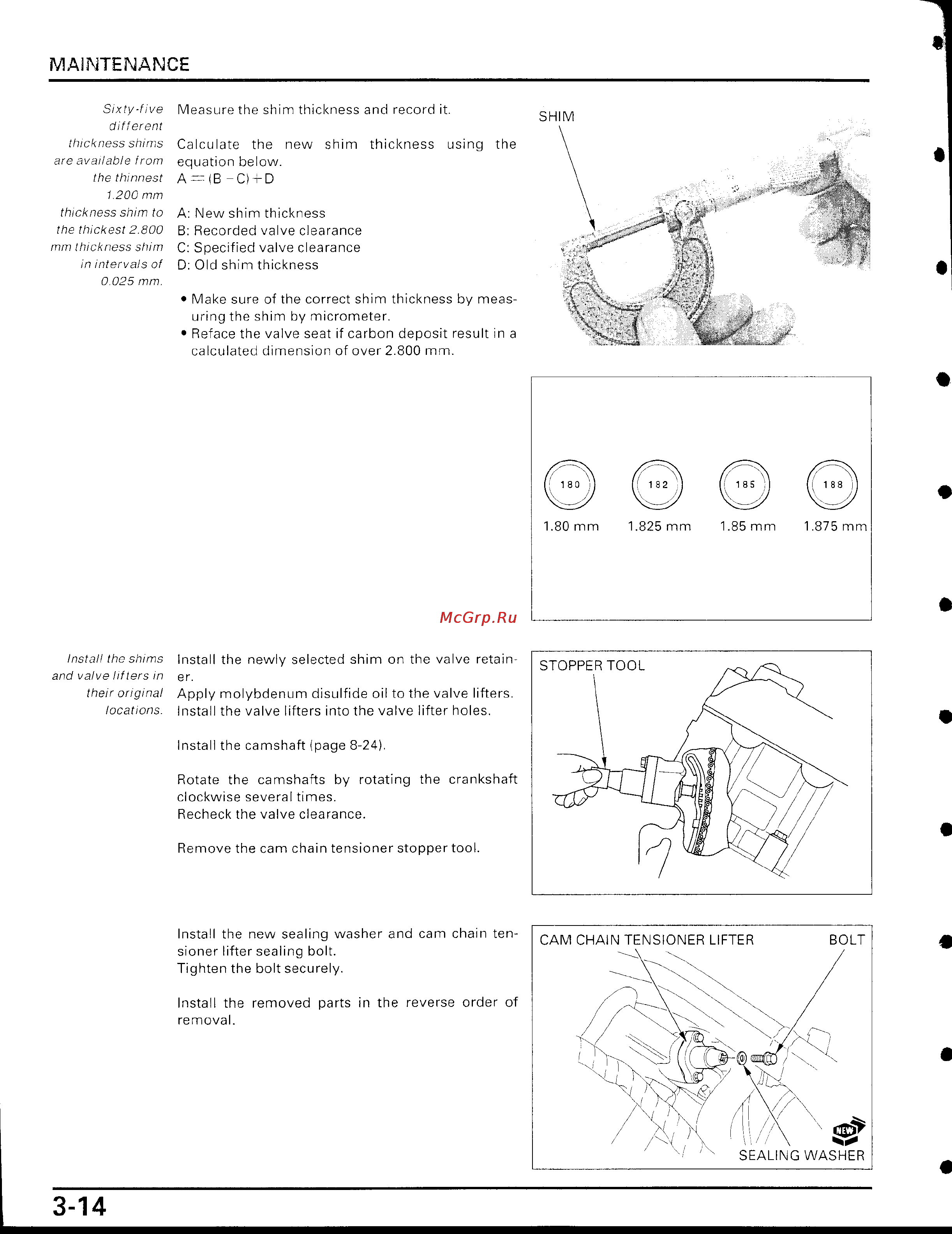

MAINTENANCE
Sixty-five
different
thickness shims
are available from
the thinnest
1
.200 mm
thickness shim to
the thickest 2
.800
mm thickness shim
in intervals of
0
.025 mm
.
Install the shims
and valve lifters in
their original
locations
.
Measure the shim thickness and record it
.
Calculate the new shim thickness using the
equation below
.
A=(B-C)--D
A
: New shim thickness
B
: Recorded valve clearance
C
: Specified valve clearance
D
: Old shim thickness
•
~
Make sure of the correct shim thickness by meas-
uring the shim by micrometer
.
•
~
Reface the valve seat if carbon deposit result in a
calculated dimension of over 2
.800 mm
.
Install the newly selected shim on the valve retain-
er
.
Apply molybdenum disulfide oil to the valve lifters
.
Install the valve lifters into the valve lifter holes
.
Install the camshaft (page 8-24)
.
Rotate the camshafts by rotating the crankshaft
clockwise several times
.
Recheck the valve clearance
.
Remove the cam chain tensioner stopper tool
.
Install the new sealing washer and cam chain ten-
sioner lifter sealing bolt
.
Tighten the bolt securely
.
Install the removed parts in the reverse order of
removal
.
SHIM
182
~
185
1
.80 mm
~
1
.825 mm
~
1
.85 mm
~
1
.875 mm
STOPPER TOOL
CAM CHAIN TENSIONER LIFTER
/
SEALING WASHER
BOLT
T
0
0
7
0
0
4
