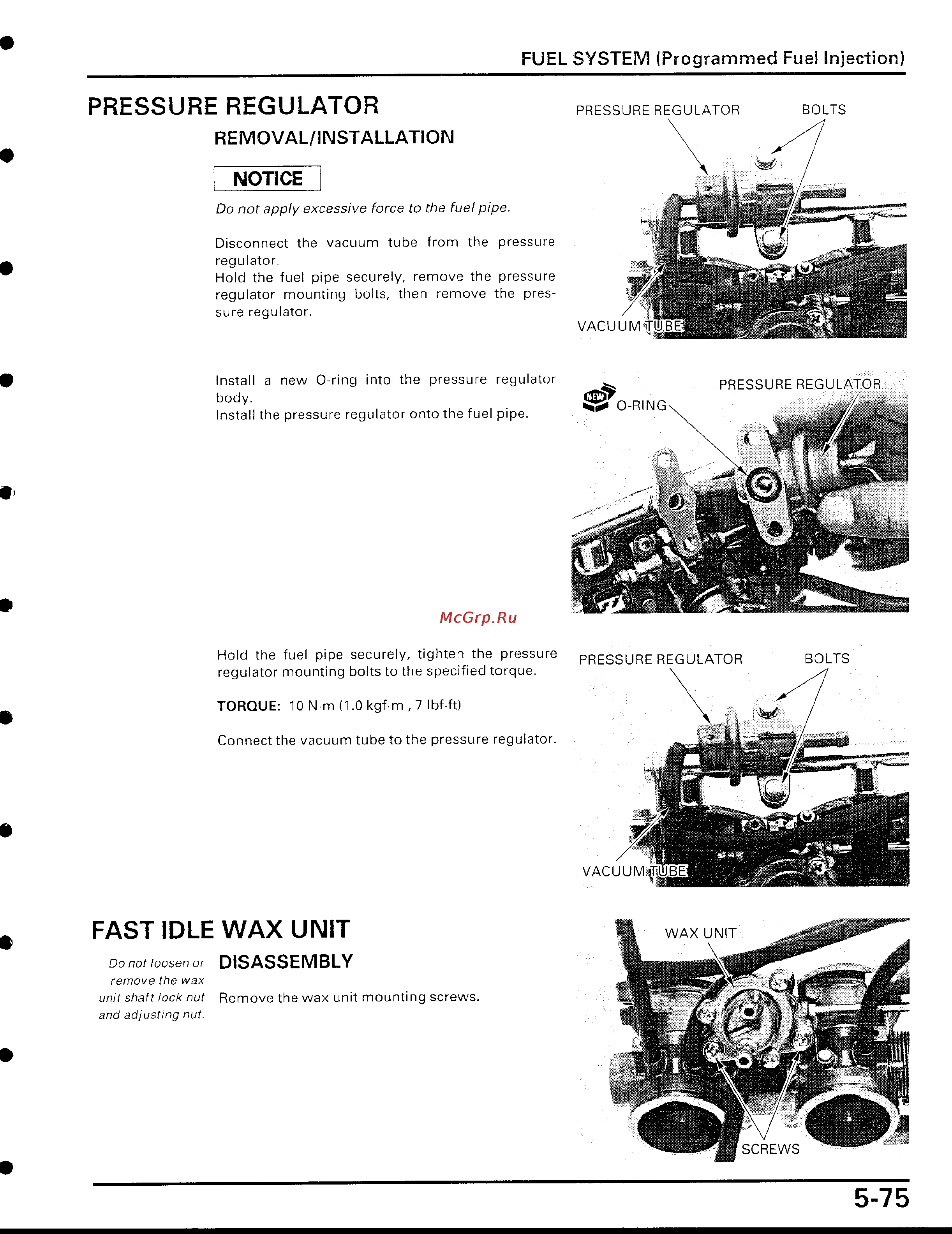

PRESSURE REGULATOR
REMOVAL/INSTALLATION
Do not loosen or
remove the wax
unit shaft lock nut
and adjusting nut
.
NOTICE
Do not apply excessive force to the fuel pipe
.
Disconnect the vacuum tube from the pressure
regulator
.
Hold the fuel pipe securely, remove the pressure
regulator mounting bolts, then remove the pres-
sure regulator
.
~
/
VACUUM
~
F2
Install a new O-ring into the pressure regulator
body
.
Install the pressure regulator onto the fuel pipe
.
FUEL SYSTEM (Programmed Fuel Injection)
PRESSURE REGULATOR
~
BOLTS
7
O-RING
Hold the fuel pipe securely, tighten the pressure
regulator mounting bolts to the specified torque
.
TORQUE
:
10 N
.m (1
.0 kgf
.m, 7 Ibf
.ft)
Connect the vacuum tube to the pressure regulator
.
FAST IDLE WAX UNIT
DISASSEMBLY
Remove the wax unit mounting screws
.
PRESSURE REGULATOR
~
BOLTS
VACUUM
4N
1B
Y
.Y
PRESSURE REGULATOR
WAX UNIT
V
SCREWS
t
i
A
