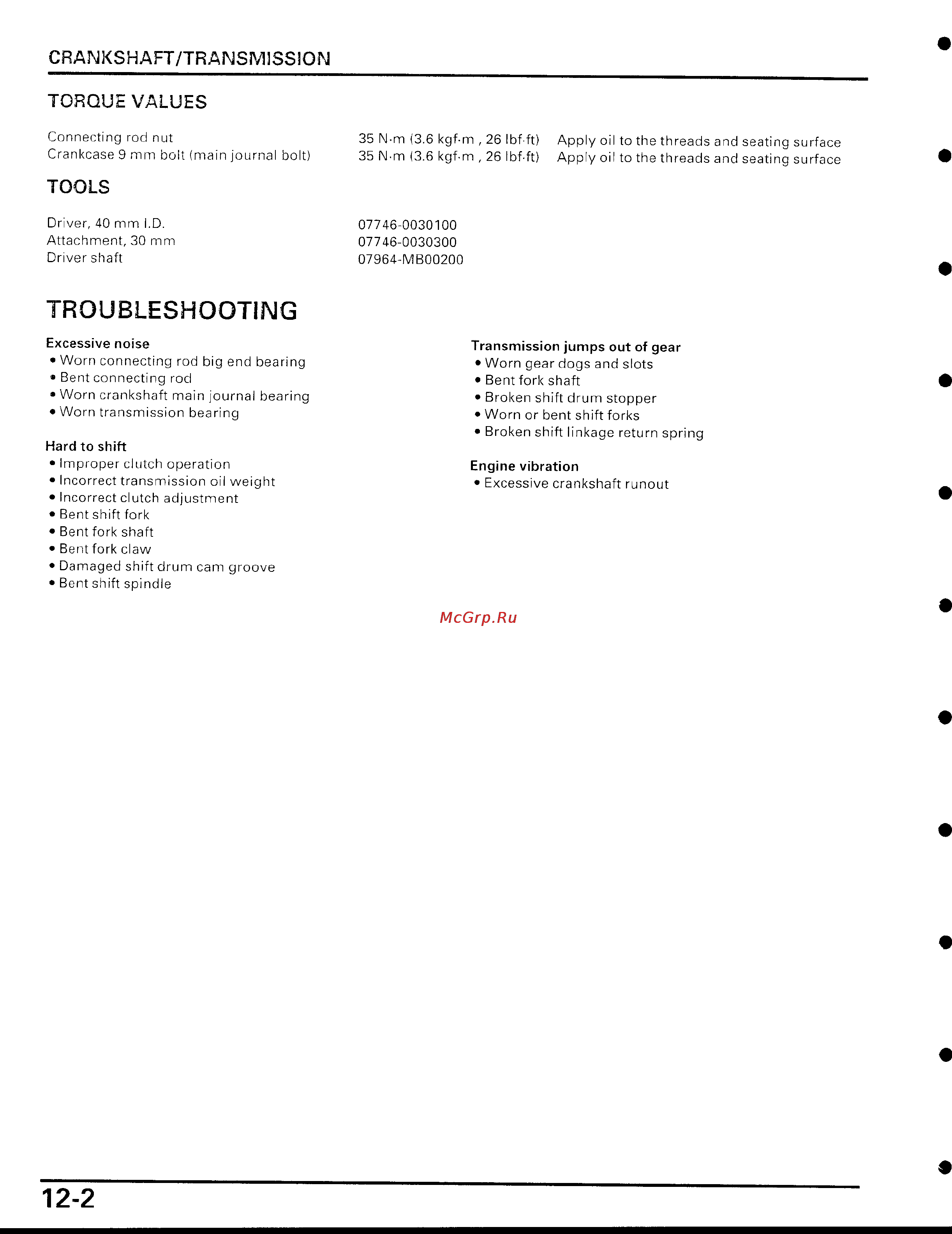

CRANKSHAFT/TRANSMISSION
TORQUE
VALUES
Connecting rod nut
Crankcase 9 mm bolt (main journal bolt)
TOOLS
Driver, 40 mm I
.D
.
Attachment, 30 mm
Driver shaft
TROUBLESHOOTING
Excessive noise
•
~
Worn connecting rod big end bearing
•
~
Bent connecting rod
•
~
Worn crankshaft main journal bearing
•
~
Worn transmission bearing
Hard to shift
•
~
Improper clutch operation
•
~
Incorrect transmission oil weight
•
~
Incorrect clutch adjustment
•
~
Bent shift fork
•
~
Bent fork shaft
•
~
Bent fork claw
•
~
Damaged shift drum cam groove
•
~
Bent shift spindle
35 N
.m (3
.6 kgf
•m
,
26 Ibf
.ft) Apply oil to the threads and seating surface
35 N
•m
(3
.6 kgf
.m
,
26 lbf-ft)
Apply oil to the threads and seating surface
07746-0030100
07746-0030300
07964-MB00200
Transmission
jumps out of gear
•
~
Worn gear dogs and slots
•
~
Bent fork shaft
•
~
Broken shift drum stopper
•
~
Worn or bent shift forks
•
~
Broken shift linkage return spring
Engine vibration
•
~
Excessive crankshaft runout
