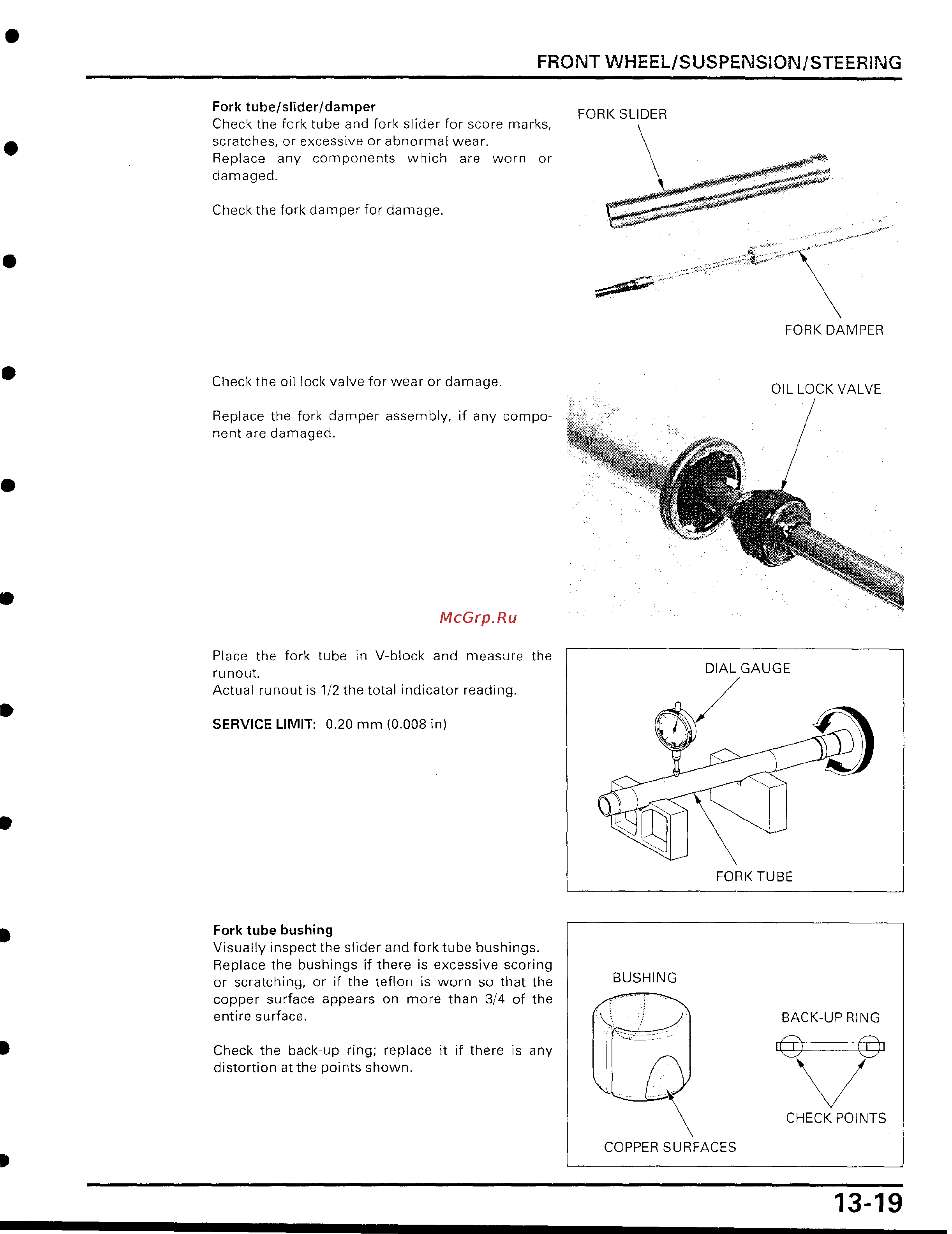

Fork tube/slider/damper
Check the fork tube and fork slider for score marks,
scratches, or excessive or abnormal wear
.
Replace any components
which are worn
or
damaged
.
Check the fork damper for damage
.
Check the oil lock valve for wear or damage
.
Replace the fork damper assembly, if any compo-
nent are damaged
.
Place the fork tube in V-block and measure the
runout
.
Actual runout is 1/2 the total indicator reading
.
SERVICE LIMIT
:
0
.20 mm (0
.008 in)
Fork tube bushing
Visually inspect the slider and fork tube bushings
.
Replace the bushings if there is excessive scoring
or scratching, or if the teflon is worn so that the
copper surface appears on more than 3/4 of the
entire surface
.
Check the back-up ring
; replace it if there is any
distortion at the points shown
.
FRONT WHEEL/SUSPENSION/STEERING
FORK SLIDER
FORK DAMPER
OIL LOCK VALVE
DIAL GAUGE
0
I
Ifti
FORK TUBE
BUSHING
BACK-UP RING
CHECK POINTS
COPPER SURFACES
