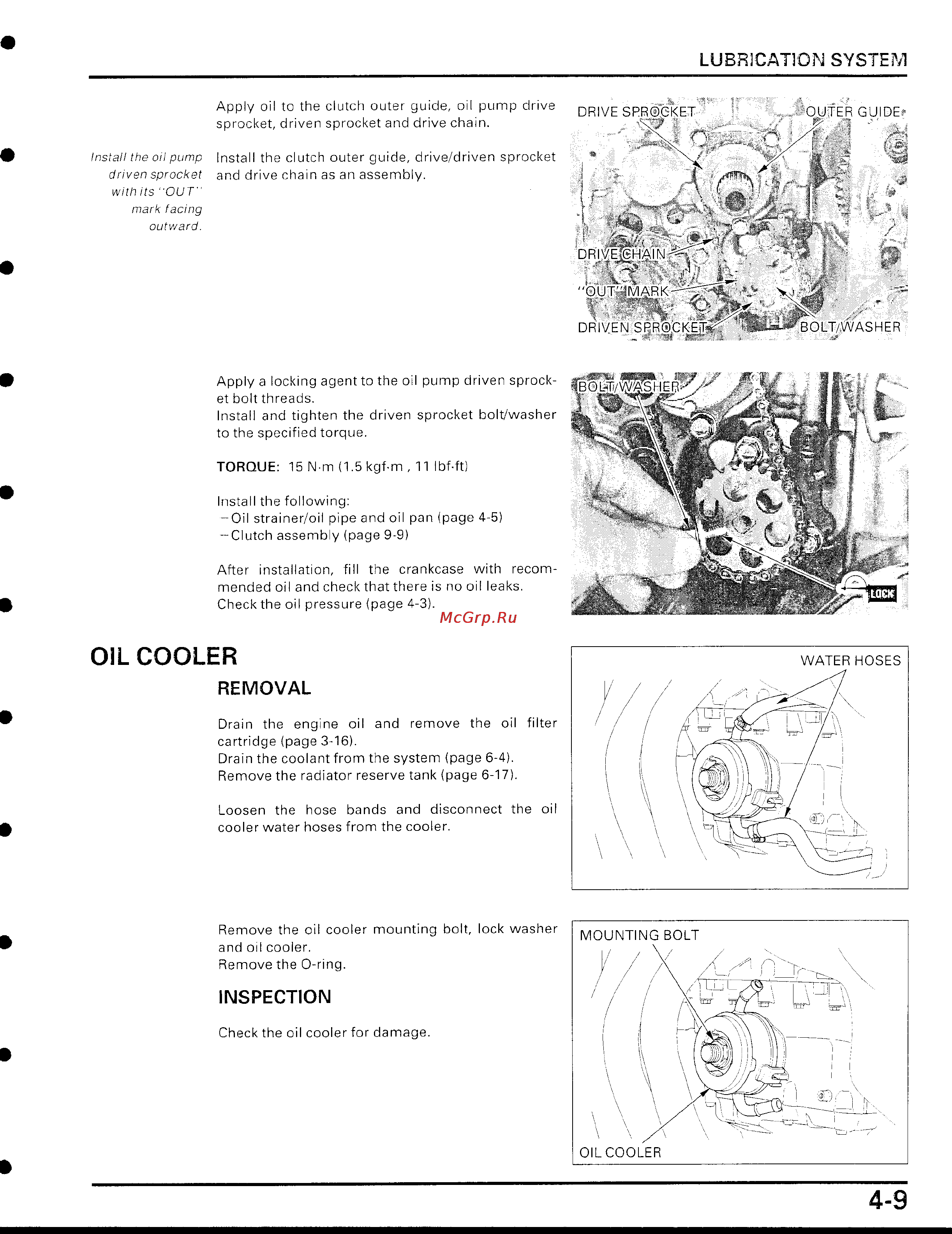

Install the oil pump
Install the clutch outer guide, drive/driven sprocket
driven sprocket
and drive chain as an assembly
.
with its 'OUT''
mark facing
outward
.
0
0
0
s
S
OIL COOLER
REMOVAL
Apply oil to the clutch outer guide, oil pump drive
sprocket, driven sprocket and drive chain
.
Apply a locking agent to the oil pump driven sprock-
et bolt threads
.
Install and tighten the driven sprocket bolt/washer
to the specified torque
.
TORQUE
:
15 N-m (1
.5 kgf
.m, 11 lbf
•f
t)
Install the following
:
-Oil strainer/oil pipe and oil pan (page 4-5)
--Clutch assembly (page 9-9)
After installation, fill the crankcase with recom-
mended oil and check that there is no oil leaks
.
Check the oil pressure (page 4-3)
.
Drain the engine oil and remove the oil filter
cartridge (page 3-16)
.
Drain the coolant from the system (page
6-4)
.
Remove the radiator reserve tank (page 6-17)
.
Loosen the hose bands and disconnect the oil
cooler water hoses from the cooler
.
Remove the oil cooler mounting bolt, lock washer
and oil cooler
.
Remove the O-ring
.
INSPECTION
Check the oil cooler for damage
.
DRIVE SPROCI ET
~
OUTER GUIDE
DRI
~
SIN-'
"0L IT
Iv,I
DRIVEN SPRO
~
DLT WASHER
LUBRICATION SYSTEM
M
WATER HOSES
MOUNTING BOLT
OIL COOLER
