Always replace the
sealing washers
when the fuel tube
banjo bolt is
removed or
loosened
.

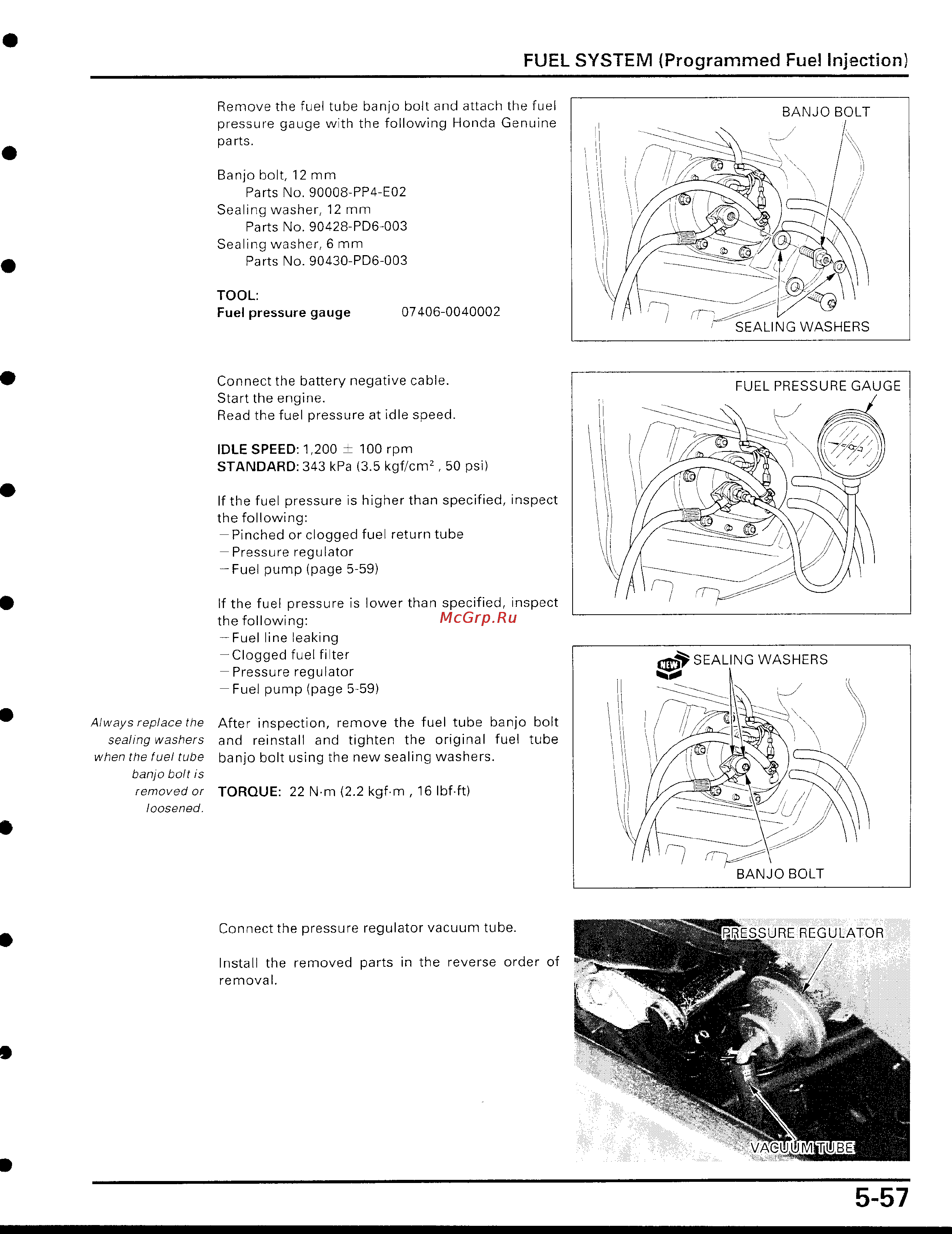

Remove the fuel tube banjo bolt and attach the fuel
pressure gauge with the following Honda Genuine
parts
.
Banjo bolt, 12 mm
Parts No
. 90008-PP4-E02
Sealing washer, 12 mm
Parts No
. 90428-PD6-003
Sealing washer, 6 mm
Parts No
. 90430-PD6-003
TOOL
:
Fuel pressure gauge
~
07406-0040002
Connect the battery negative cable
.
Start the engine
.
Read the fuel pressure at idle speed
.
IDLE SPEED
:
1,200 ± 100 rpm
STANDARD
:
343 kPa (3
.5 kgf/cmz, 50 psi)
If the fuel pressure is higher than specified,
the following
:
-Pinched or clogged fuel return tube
-Pressure regulator
-Fuel pump (page 5-59)
If the fuel pressure is lower than specified,
the following
:
-Fuel line leaking
-Clogged fuel filter
-Pressure regulator
-Fuel pump (page 5-59)
After inspection, remove the fuel tube banjo bolt
and reinstall and tighten the original fuel tube
banjo bolt using the new sealing washers
.
TORQUE
:
22 N
•m
(2
.2 kgf
.m, 16 Ibf
•f
t)
Connect the pressure regulator vacuum tube
.
Install the removed parts in the reverse order of
removal
.
FUEL SYSTEM (Programmed Fuel Injection)
inspect
inspect
BANJO BOLT
e ®<
-<
J
SEALING WASHERS
FUEL PRESSURE GAUGE
i
i
j
BANJO BOLT
P-SSURE REGULATOR
CU M TUBE
