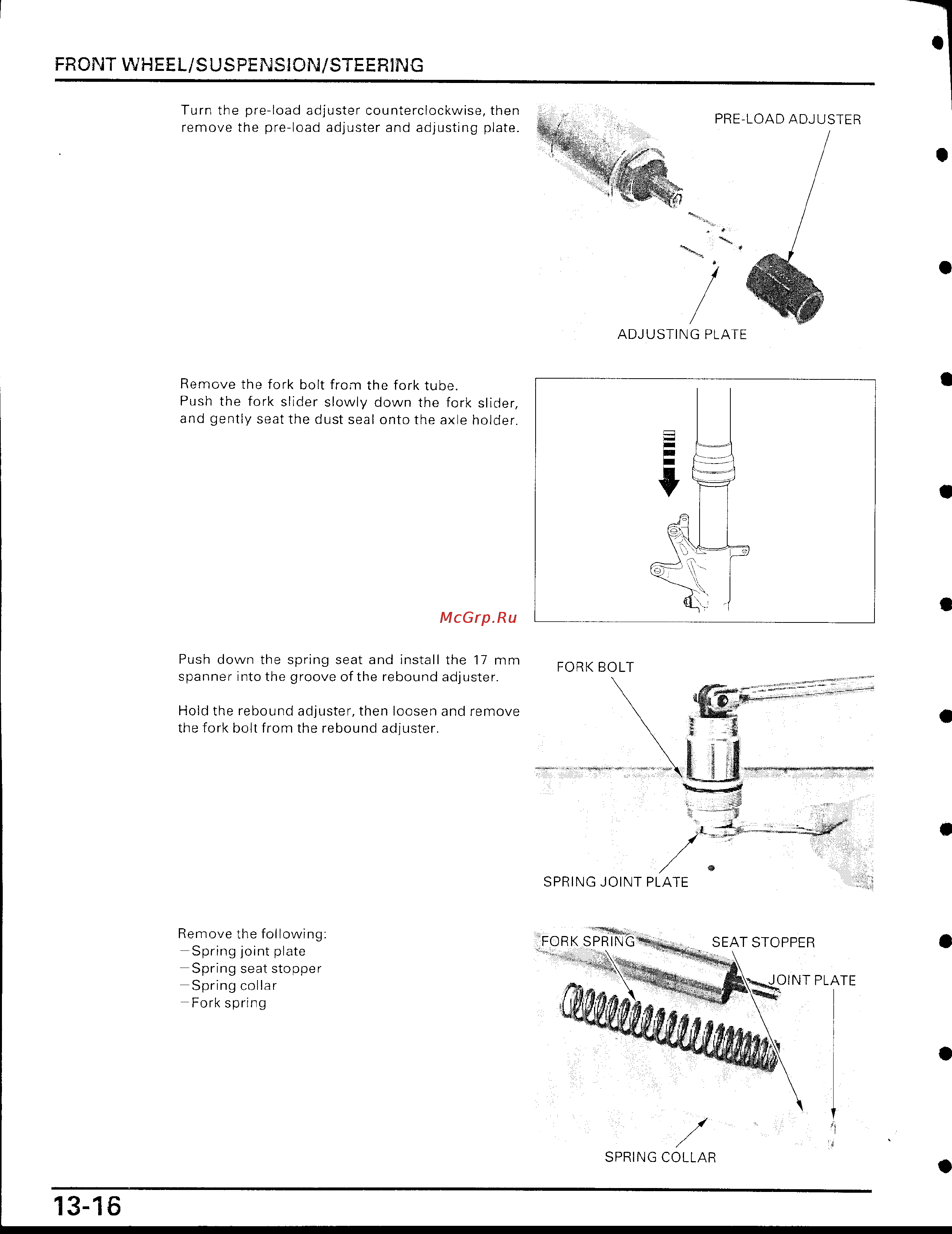

FRONT WHEEL/SUSPENSION/STEERING
Turn the pre-load adjuster counterclockwise, then
remove the pre-load adjuster and adjusting plate
.
Remove the fork bolt from the fork tube
.
Push the fork slider slowly down the fork slider,
and gently seat the dust seal onto the axle holder
.
Push down the spring seat and install the 17 mm
spanner into the groove of the rebound adjuster
.
Hold the rebound adjuster, then loosen and remove
the fork bolt from the rebound adjuster
.
Remove the following
:
-Spring joint plate
-
Spring seat stopper
-
Spring collar
-Fork spring
ADJUSTING PLATE
1
FORK BOLT
SPRING JOINT PLATE
FORK SPRING
~
SEAT STOPPER
~
S
SPRING COLLAR
PRE-LOAD ADJUSTER
V
JOINT PLATE
0
0
0
0
0
