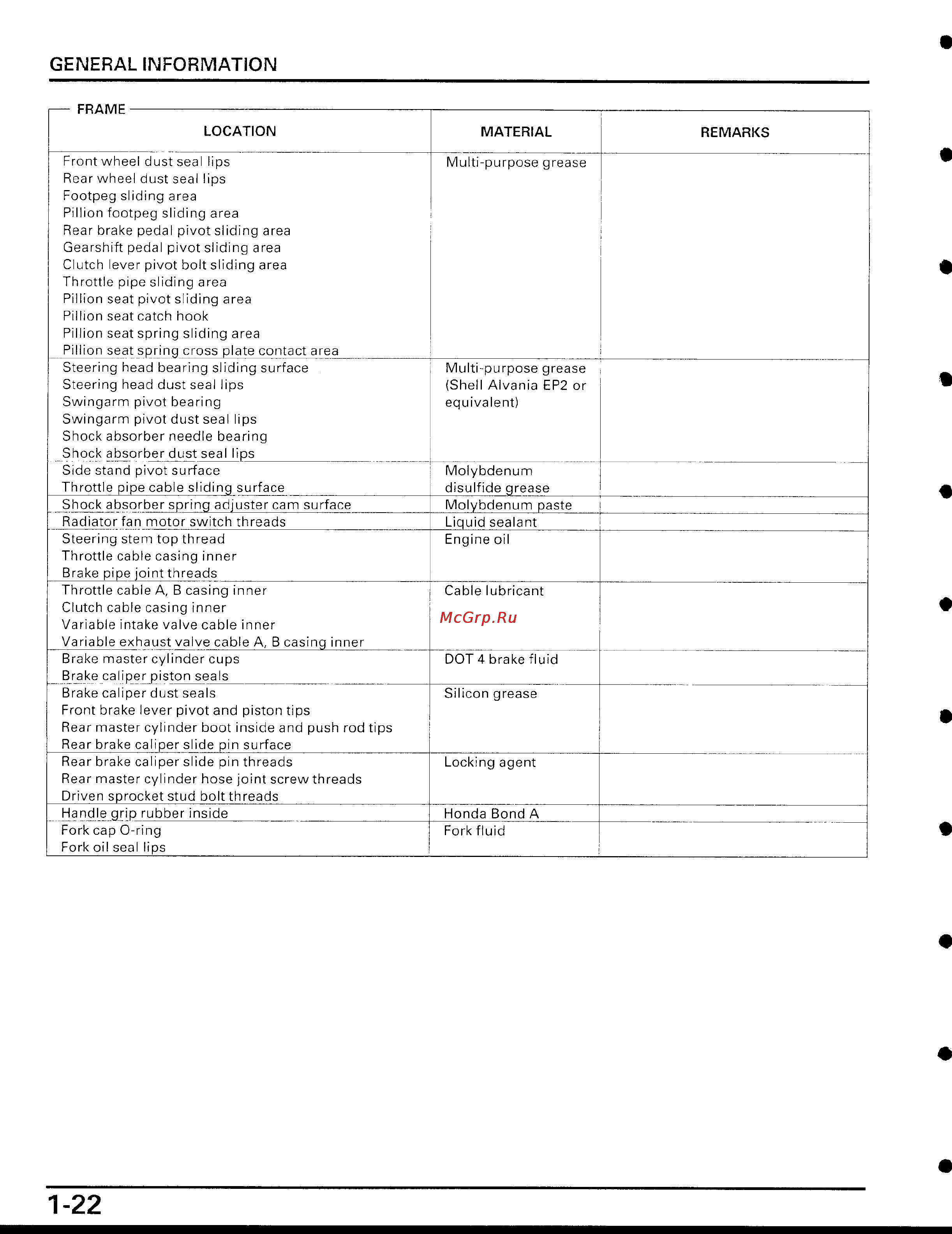

GENERAL INFORMATION
-
FRAME
LOCATION
Front wheel dust seal lips
Rear wheel dust seal lips
Footpeg sliding area
Pillion footpeg sliding area
Rear brake pedal pivot sliding area
Gearshift pedal pivot sliding area
Clutch lever pivot bolt sliding area
Throttle pipe sliding area
Pillion seat pivot sliding area
Pillion seat catch hook
Pillion seat spring sliding area
~
Pillion seat
spring
cross plate contact area
Steering head bearing sliding surface
Steering head dust seal lips
Swingarm pivot bearing
Swingarm pivot dust seal lips
Shock absorber needle bearing
Shock absorber dust
seal lips
~
Side stand pivot surface
~
Throttle pipe cable sliding
-
surface
Shock
absorber spring adjuster cam surface
Radiator
fan
motor switch threads
~
Steering stem top thread
Throttle cable casing inner
~
Brake pipe
joint threads
Throttle cable A, B casing inner
Clutch cable casing inner
Variable intake valve cable inner
~
Variable exhaust
valve cable A, B casing inner
~
Brake master cylinder cups
Brake caliper
_piston seals
~
Brake caliper dust seals
Front brake lever pivot and piston tips
Rear master cylinder boot inside and push rod tips
~
Rear brake caliper
slide
-
pin surface
Rear brake caliper slide pin threads
Rear master cylinder hose joint screw threads
~
Driven sprocket stud bolt threads
Handle grip
rubber inside
~
Fork cap O-ring
Fork oil seal lips
MATERIAL
Multi-purpose grease
Multi-purpose grease
(Shell Alvania EP2 or
equivalent)
Molybdenum
disulfide grease
Molybdenum paste
Liquid sealant
~
Engine oil
I
Cable lubricant
DOT 4 brake fluid
Silicon grease
Locking agent
Honda Bond
A
_
Fork fluid
REMARKS
