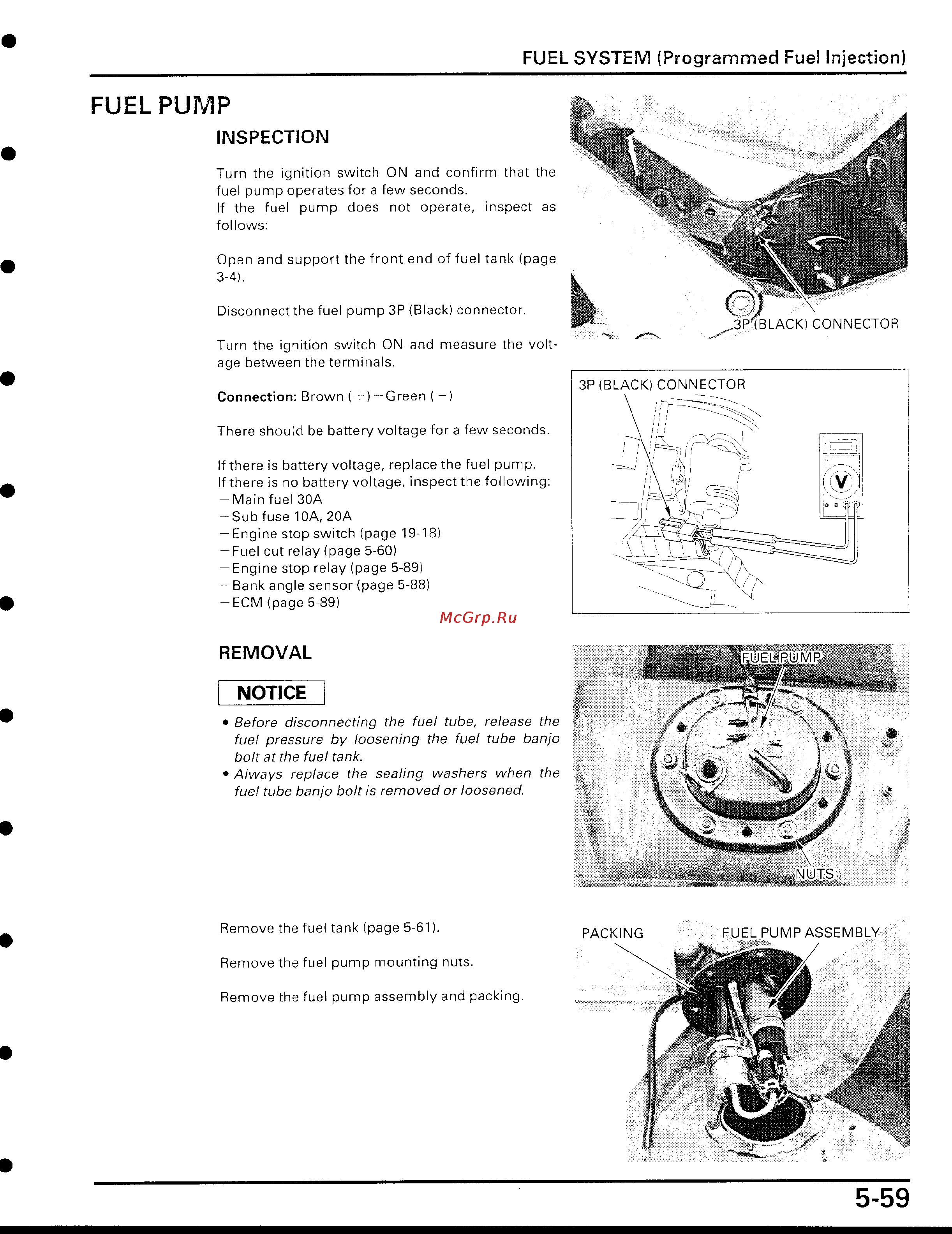

FUEL PUMP
INSPECTION
Turn the ignition switch ON and confirm that the
fuel pump operates for a few seconds
.
If the fuel pump does not operate, inspect as
follows
:
Open and support the front end of fuel tank (page
3-4)
.
Disconnect the fuel pump 3P (Black) connector
.
Turn the ignition switch ON and measure the volt-
age between the terminals
.
Connection
:
Brown (+ )-Green
(--)
There should be battery voltage for a few seconds
.
If there is battery voltage, replace the fuel pump
.
If there is no battery voltage, inspect the following
:
-Main fuel 30A
-Sub fuse 10A, 20A
-Engine stop switch (page 19-18)
-Fuel cut relay (page 5-60)
-Engine stop relay (page 5-89)
-Bank angle sensor (page 5-88)
-ECM (page 5-89)
REMOVAL
NOTICE
•
~
Before disconnecting the fuel tube, release the
fuel pressure by loosening the fuel tube banjo
bolt at the fuel tank
.
•
~
Always replace the sealing washers when the
fuel tube banjo bolt is removed or loosened
.
Remove the fuel tank (page 5-61)
.
Remove the fuel pump mounting nuts
.
Remove the fuel pump assembly and packing
.
FUEL SYSTEM (Programmed Fuel Injection)
3P`(BLACK) CONNECTOR
3P (BLACK) CONNECTOR
11
zi
., ALL F
~
,
PACKING
~
FUEL PUMP ASSEMBLY
li iTI
