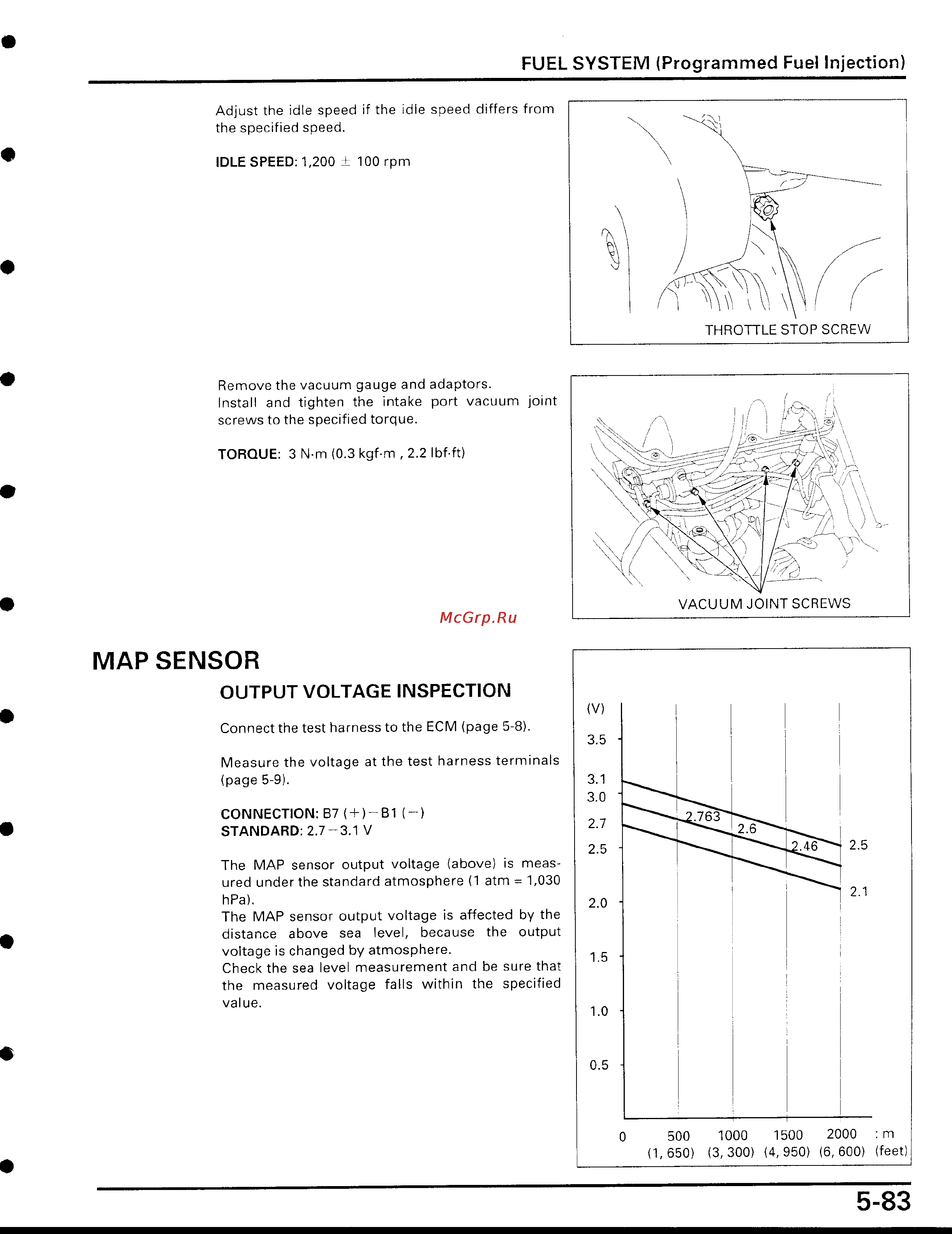

Adjust the idle speed if the idle speed differs from
the specified speed
.
IDLE SPEED
:
1,200 ± 100 rpm
Remove the vacuum gauge and adaptors
.
Install and tighten the intake port vacuum joint
screws to the specified torque
.
TORQUE
:
3 N
•m
(0
.3 kgf
•m
,
2
.2 Ibf
.ft)
MAP SENSOR
OUTPUT VOLTAGE INSPECTION
Connect the test harness to the ECM (page
5-8)
.
Measure the voltage at the test harness terminals
(page
5-9)
.
CONNECTION
:
B7 (+)-B1
(-)
STANDARD
:
2
.7-3
.1 V
The MAP sensor output voltage (above) is meas-
ured under the standard atmosphere (1 atm = 1,030
hPa)
.
The MAP sensor output voltage is affected by the
distance above sea level, because the
output
voltage is changed by atmosphere
.
Check the sea level measurement and be sure that
the measured voltage falls within the specified
value
.
FUEL SYSTEM (Programmed Fuei Injection)
1W
THROTTLE STOP SCREW
VACUUM JOINT SCREWS
(V)
3
.5
-
3
.1
3
.0
2 .7
2 .5
-
2
.0
-
1
.5
1
.0
0
.5
0
~
500
~
1000
~
1500
~
2000
: m
(1, 650) (3, 300) (4, 950) (6, 600) (feet)
.763
2 .6
.46
2
.5
2
.1
5-83
