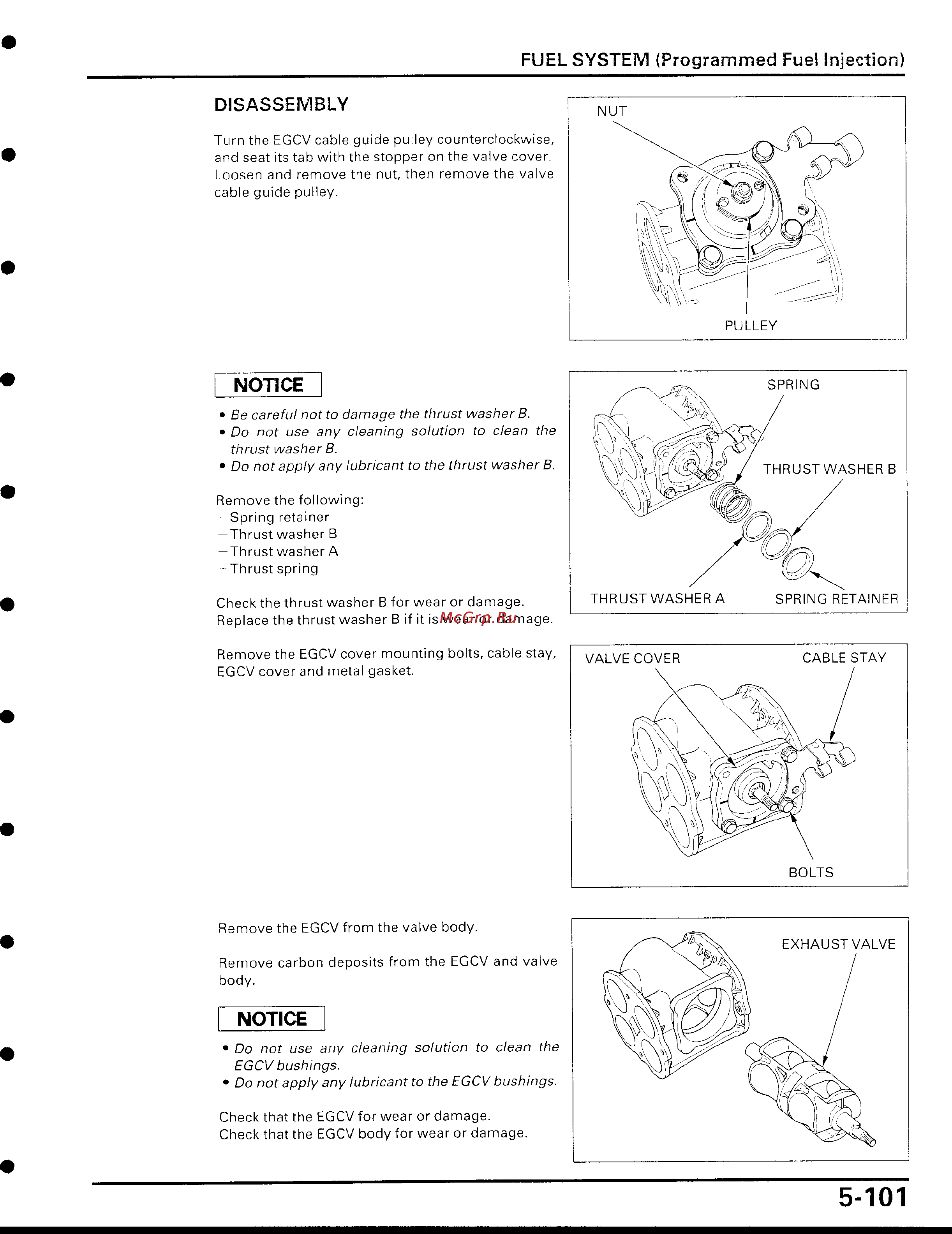

DISASSEMBLY
Turn the EGCV cable guide pulley counterclockwise,
and seat its tab with the stopper on the valve cover
.
Loosen and remove the nut, then remove the valve
cable guide pulley
.
NOTICE
•
~
Be careful not to damage the thrust washer B
.
•
~
Do not use any cleaning solution to clean the
thrust washer B
.
•
~
Do not apply any lubricant to the thrust washer B
.
Remove the following
:
-Spring retainer
-Thrust washer B
-Thrust washer A
--Thrust spring
Check the thrust washer B for wear or damage
.
Replace the thrust washer B if it is wear or damage
.
Remove the EGCV cover mounting bolts, cable stay,
EGCV cover and metal gasket
.
Remove the EGCV from the valve body
.
Remove carbon deposits from the EGCV and valve
body
.
NOTICE
•
~
Do not use any cleaning solution to clean the
EGCV bushings
.
•
~
Do not apply any lubricant to the EGCV bushings
.
Check that the EGCV for wear or damage
.
Check that the EGCV body for wear or damage
.
FUEL SYSTEM (Programmed Fuel Injection)
NUT
PULLEY
SPRING
THRUST WASHER B
i
THRUST WASHER A
SPRING RETAINER
VALVE COVER
a
a
CABLE STAY
1
BOLTS
H
EXHAUST VALVE
0
5-101
