0
0

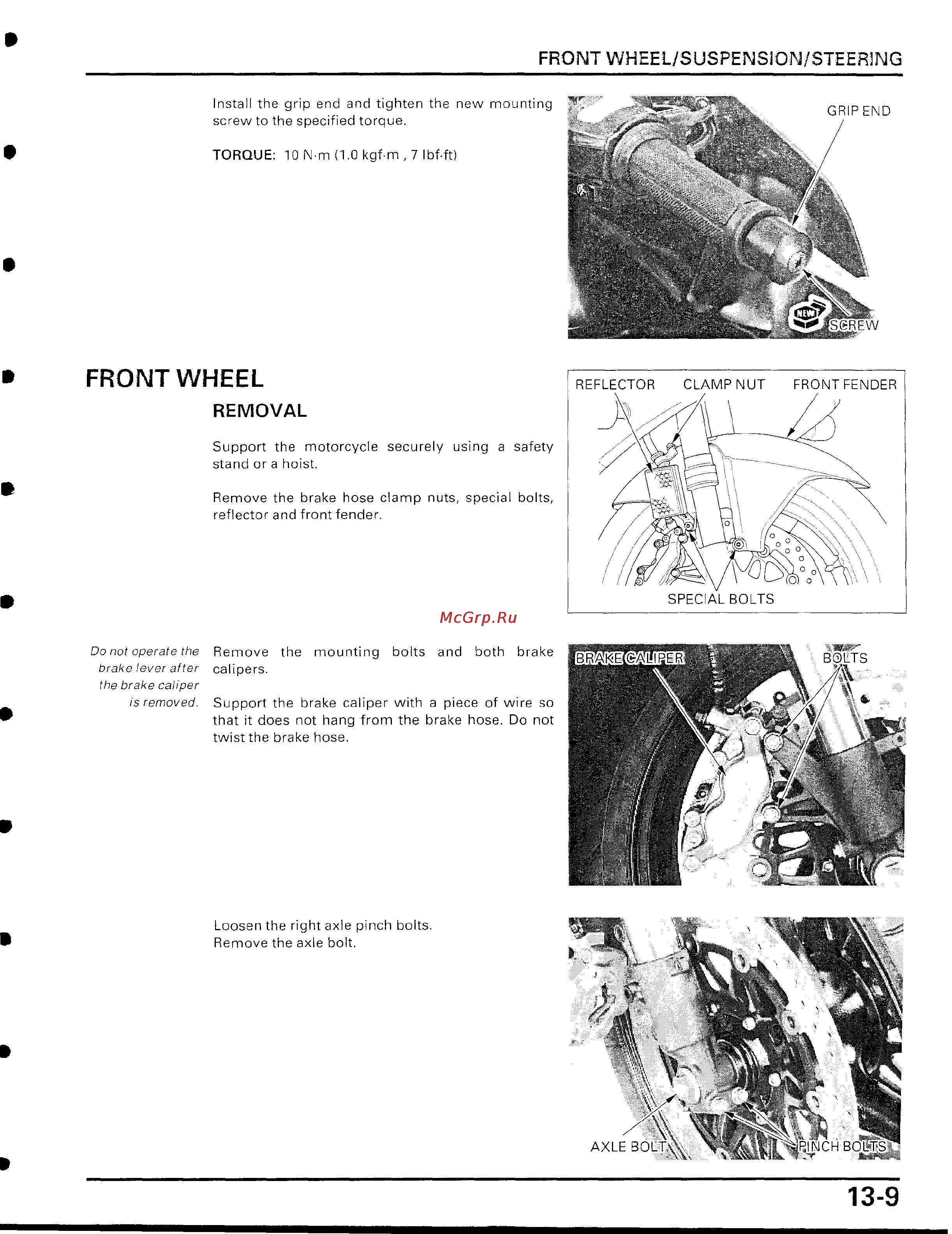

Install the grip end and tighten the new mounting
screw to the specified torque
.
10
~
TORQUE
:
10 N-m (1
.0 kgf
.m
,
7 Ibf
.ft)
0
FRONT WHEEL
REMOVAL
Support the motorcycle securely using a safety
stand or a hoist
.
Remove the brake hose clamp nuts, special bolts,
reflector and front fender
.
Do not operate the
Remove the mounting bolts and both brake
brake lever after
calipers
.
the brake caliper
is removed
.
Support the brake caliper with a piece of wire so
that it does not hang from the brake hose
. Do not
twist the brake hose
.
Loosen the right axle pinch bolts
.
1
~
Remove the axle bolt
.
I
1
FRONT WHEEL/SUSPENSION/STEERING
REFLECTOR
~
CLAMP NUT
~
FRONT FENDER
0
1
(j L-)
0
0
r
AXLE BOLT
-
00
-ft
1
SPECIAL BOLTS
GRIP END
A
~
B-)LTS
V
11301
13-9
