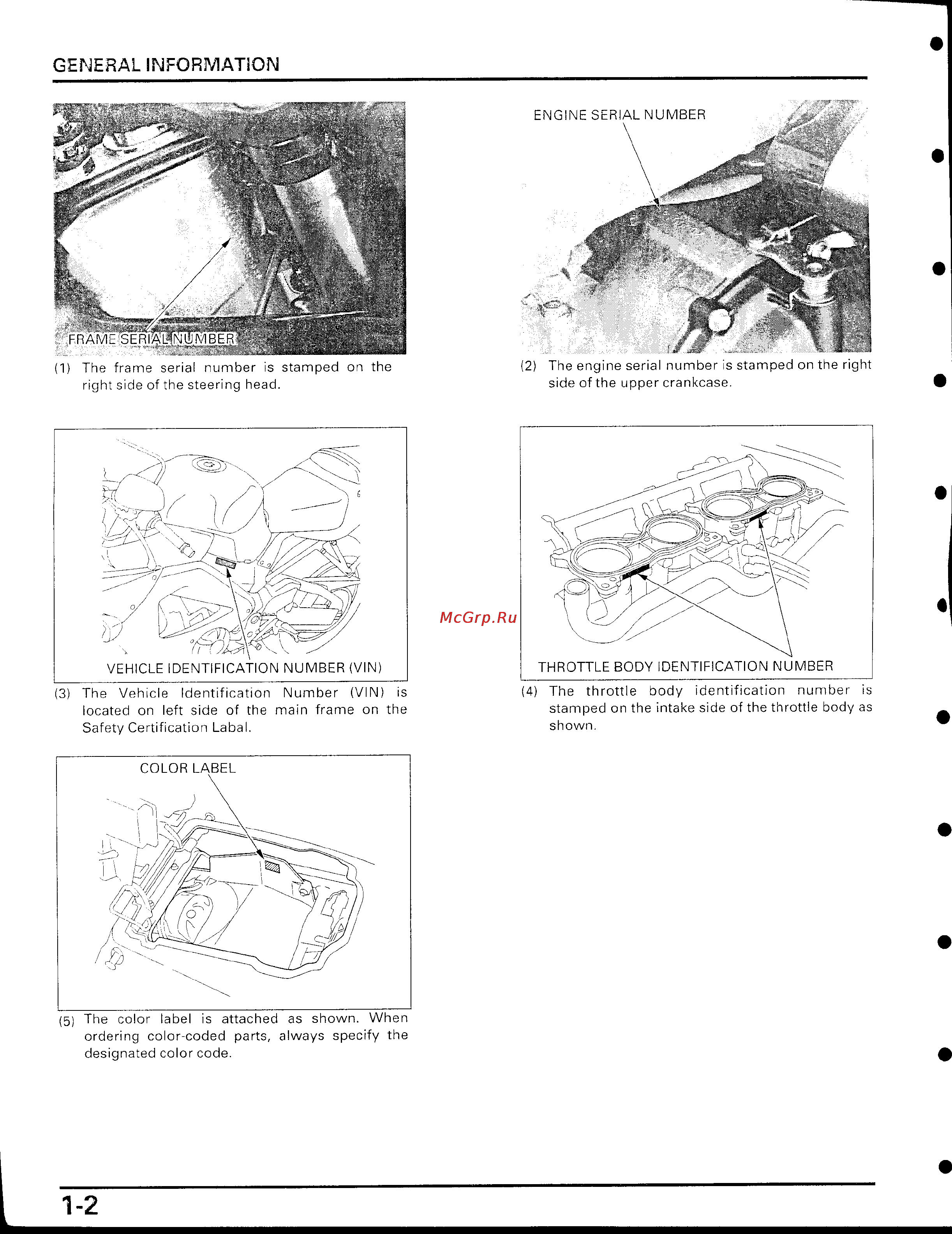

GENERAL
INFORMATION
FHAIVML 5EiiIAL Jill r„IHE-
(1)
The frame serial number is stamped on the
right side of the steering head
.
I
VEHICLE IDENTIFICATION NUMBER (VIN)
(3) The Vehicle Identification Number (VIN) is
located on left side of the main frame on the
Safety Certification Labal
.
COLOR LABEL
i
(5) The color label is attached as shown
. When
ordering color-coded parts, always specify the
designated color code
.
ENGINE SERIAL NUMBER
(2) The engine serial number is stamped on the right
side of the upper crankcase
.
THROTTLE BODY IDENTIFICATION NUMBER
(4) The throttle body identification number is
stamped on the intake side of the throttle body as
shown
.
0
0
0
