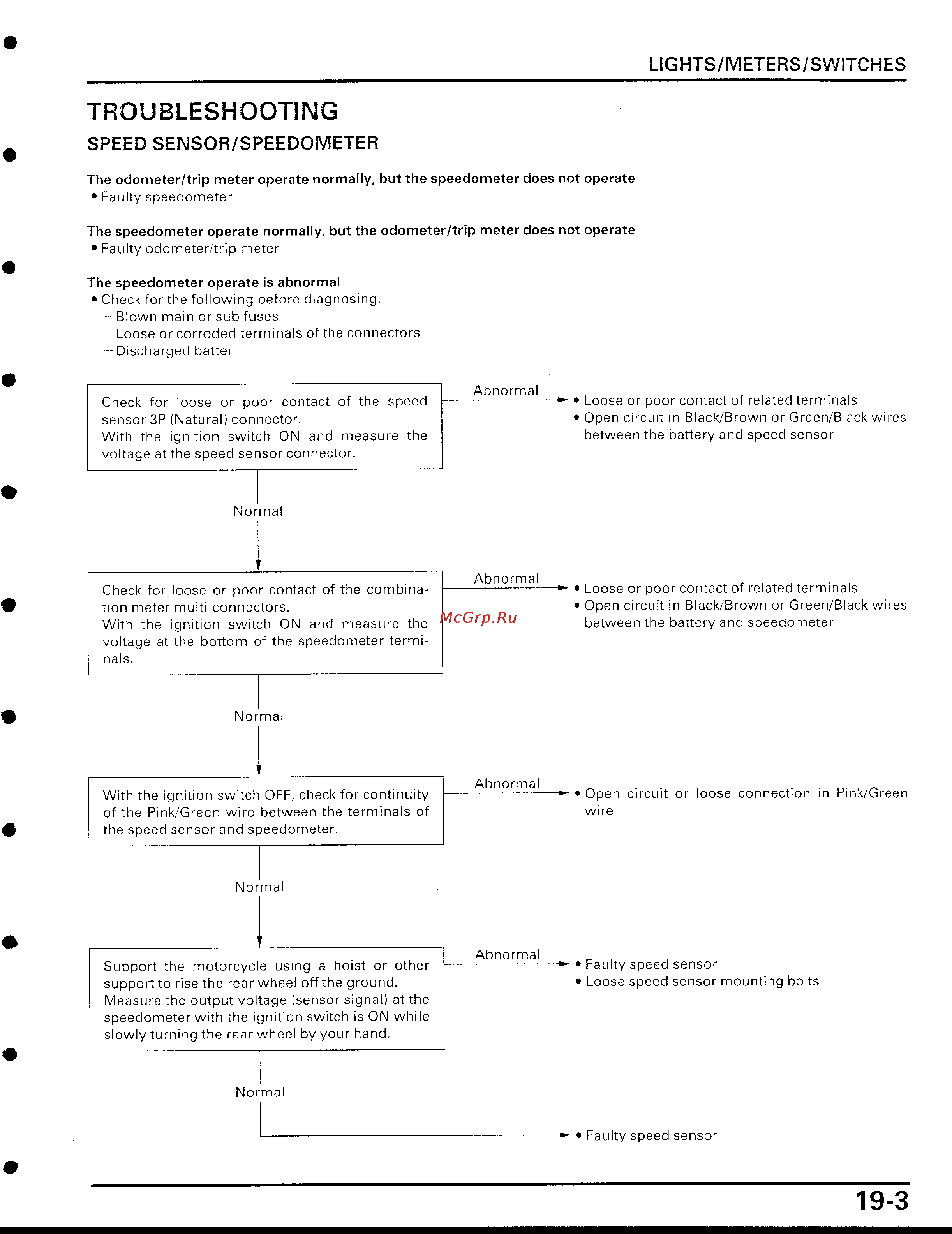

TROUBLESHOOTING
SPEED SENSOR/SPEEDOMETER
The odometer/trip meter operate normally, but the speedometer does not operate
•
~
Faulty speedometer
The speedometer operate normally, but the odometer/trip meter does not operate
•
~
Faulty odometer/trip meter
The speedometer operate is abnormal
•
~
Check for the following before diagnosing
.
--Blown main or sub fuses
--Loose or corroded terminals of the connectors
--Discharged batter
Check for loose or poor contact of the speed
sensor 3P (Natural) connector
.
With the ignition switch ON and measure the
voltage at the speed sensor connector
.
Normal
Check for loose or poor contact of the combina-
tion meter multi-connectors
.
With the ignition switch ON and measure the
voltage at the bottom of the speedometer termi-
nals
.
Normal
With the ignition switch OFF, check for continuity
of the Pink/Green wire between the terminals of
the speed sensor and speedometer
.
Normal
Support the motorcycle using a hoist or other
support to rise the rear wheel off the ground
.
Measure the output voltage (sensor signal) at the
speedometer with the ignition switch is ON while
slowly turning the rear wheel by your hand
.
Normal
Abnormal
Abnormal
Abnormal
Abnormal
•
~
Loose or poor contact of related terminals
•
~
Open circuit in Black/Brown or Green/Black wires
between the battery and speed sensor
•
~
Loose or poor contact of related terminals
•
~
Open circuit in Black/Brown or Green/Black wires
between the battery and speedometer
•
~
Open circuit or loose connection in Pink/Green
wi re
•
~
Faulty speed sensor
•
~
Loose speed sensor mounting bolts
•
~
Faulty speed sensor
LIGHTS/METERS/SWITCHES
