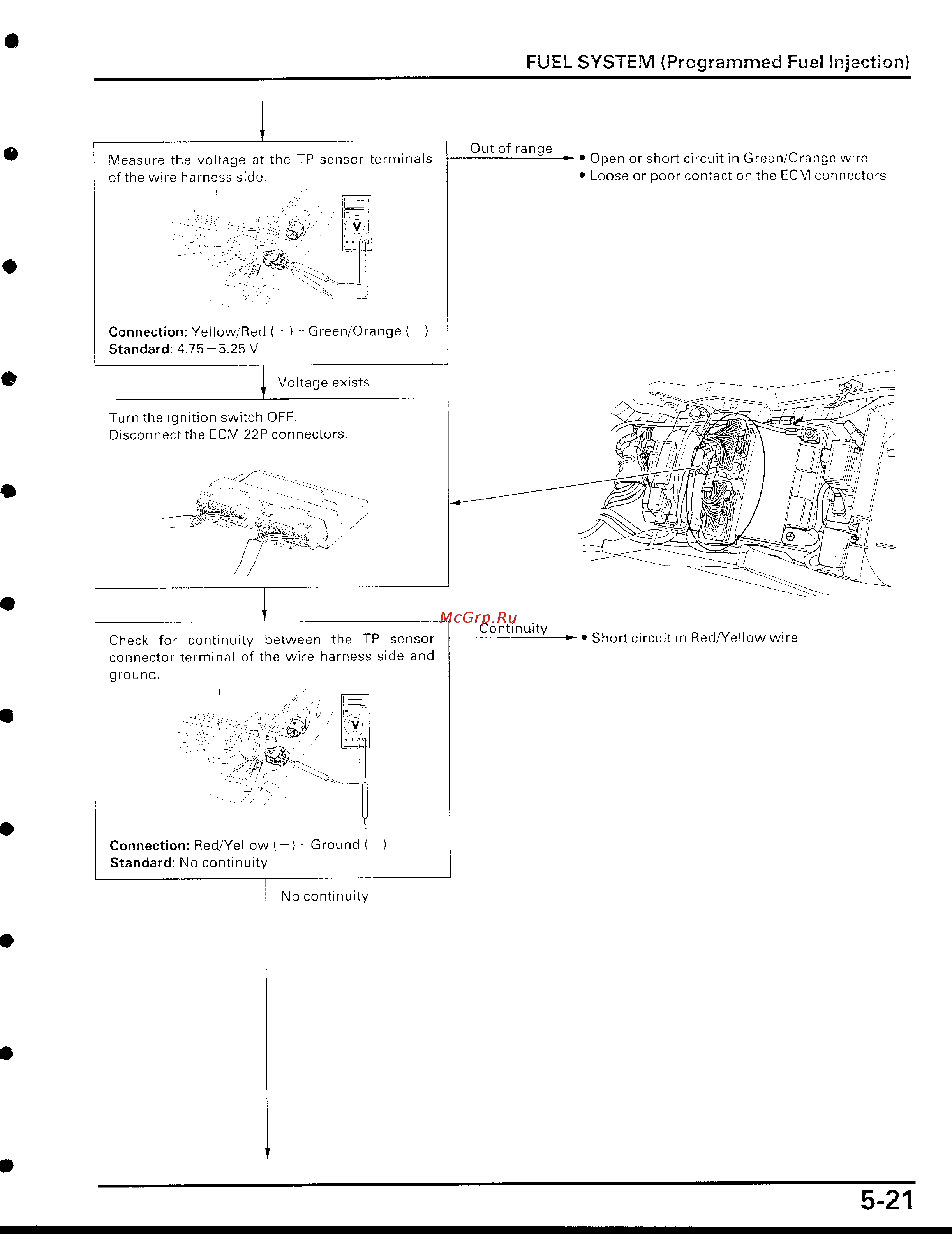

Honda CBR929RR [134/488] Page 21
![Honda CBR929RR [134/488] Page 21](/views2/1121098/page134/bg86.png)
0
0
Check
for
continuity
between
the
TP
sensor
connector terminal of the wire harness side and
ground
.
Connection
:
Red/Yellow (+)-
-
Ground
(-)
Standard
:
No continuity
Measure the voltage at the TP sensor terminals
of the wire harness side
.
Connection
:
Yellow/Red (+)
-
Green/Orange
(-)
Standard
:
4
.75-5
.25 V
1
Voltage exists
Turn the ignition switch OFF
.
Disconnect the ECM 22P connectors
.
No continuity
Out of range
Continuity
FUEL SYSTEM (Programmed Fuel Injection)
•
~
Open or short circuit in Green/Orange wire
•
~
Loose or poor contact on the ECM connectors
qrl
12
~
e -
--
4
a
~
Ck&
I
a
•
~
Short circuit in Red/Yellow wire
