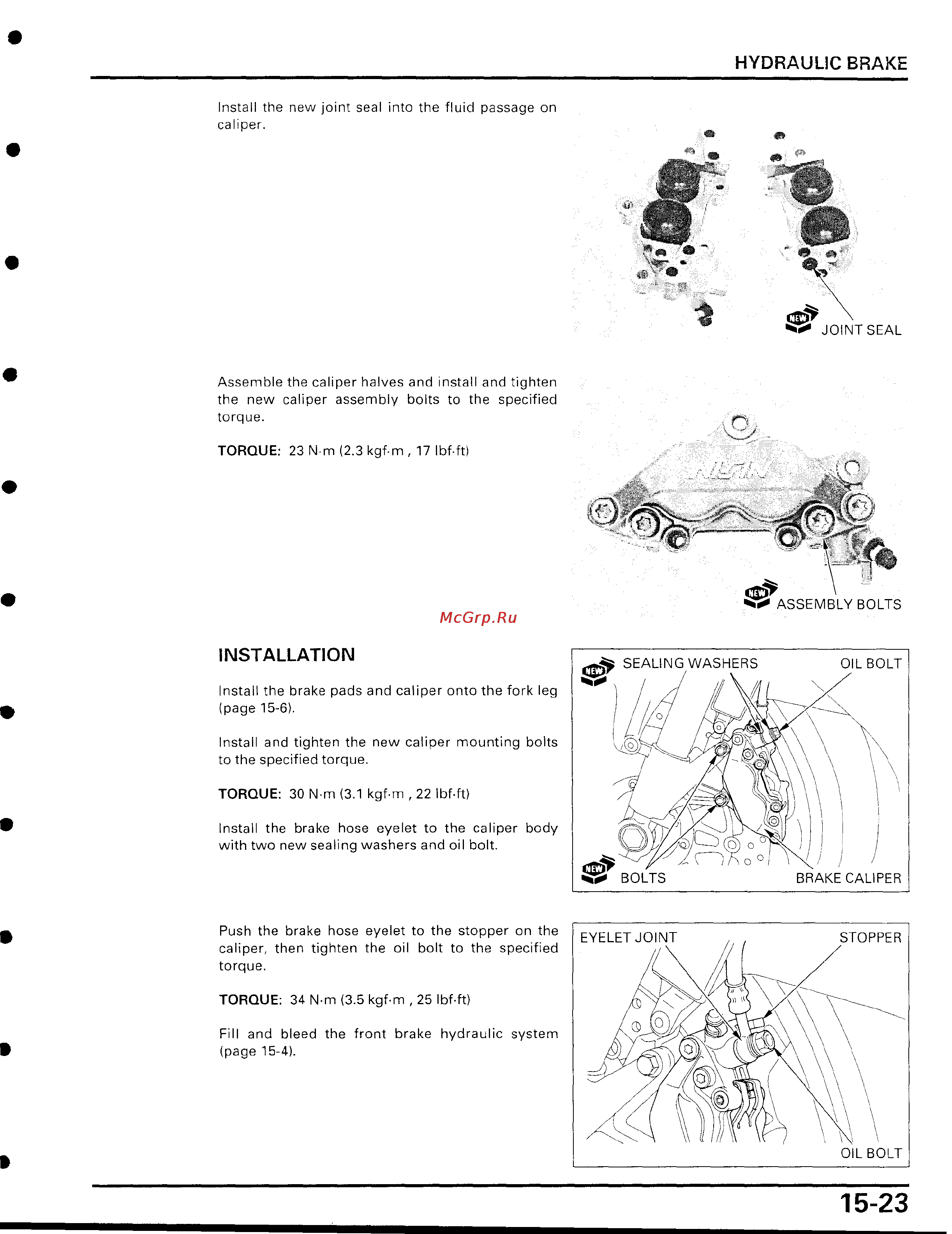

Install the new joint seal into the fluid passage on
caliper
.
Assemble the caliper halves and install and tighten
the new caliper assembly bolts to the specified
torque
.
TORQUE
: 23
N•m
(2 .3
kgf
.m, 17 Ibf
•f t)
INSTALLATION
Install the brake pads and caliper onto the fork leg
(page
15-6)
.
Install and tighten the new caliper mounting bolts
to the specified torque
.
TORQUE
: 30
N-m
(3
.1
kgf
.m,
22
Ibf
.ft)
Install the brake hose eyelet to the caliper body
with two new sealing washers and oil bolt
.
Push the brake hose eyelet to the stopper on the
caliper, then tighten the oil bolt to the specified
torque
.
TORQUE
: 34
N.m
(3
.5
kgf
.m,
25
Ibf
.ft)
Fill and bleed the front brake hydraulic system
(page
15-4)
.
HYDRAULIC BRAKE
a
Q
JOINT SEAL
0 ASSEMBLY BOLTS
SEALING WASHERS
0
0
o
BRAKE CALIPER
OIL BOLT
N
EYELET JOINT
STOPPER
V
1
BOLTS
15-23
