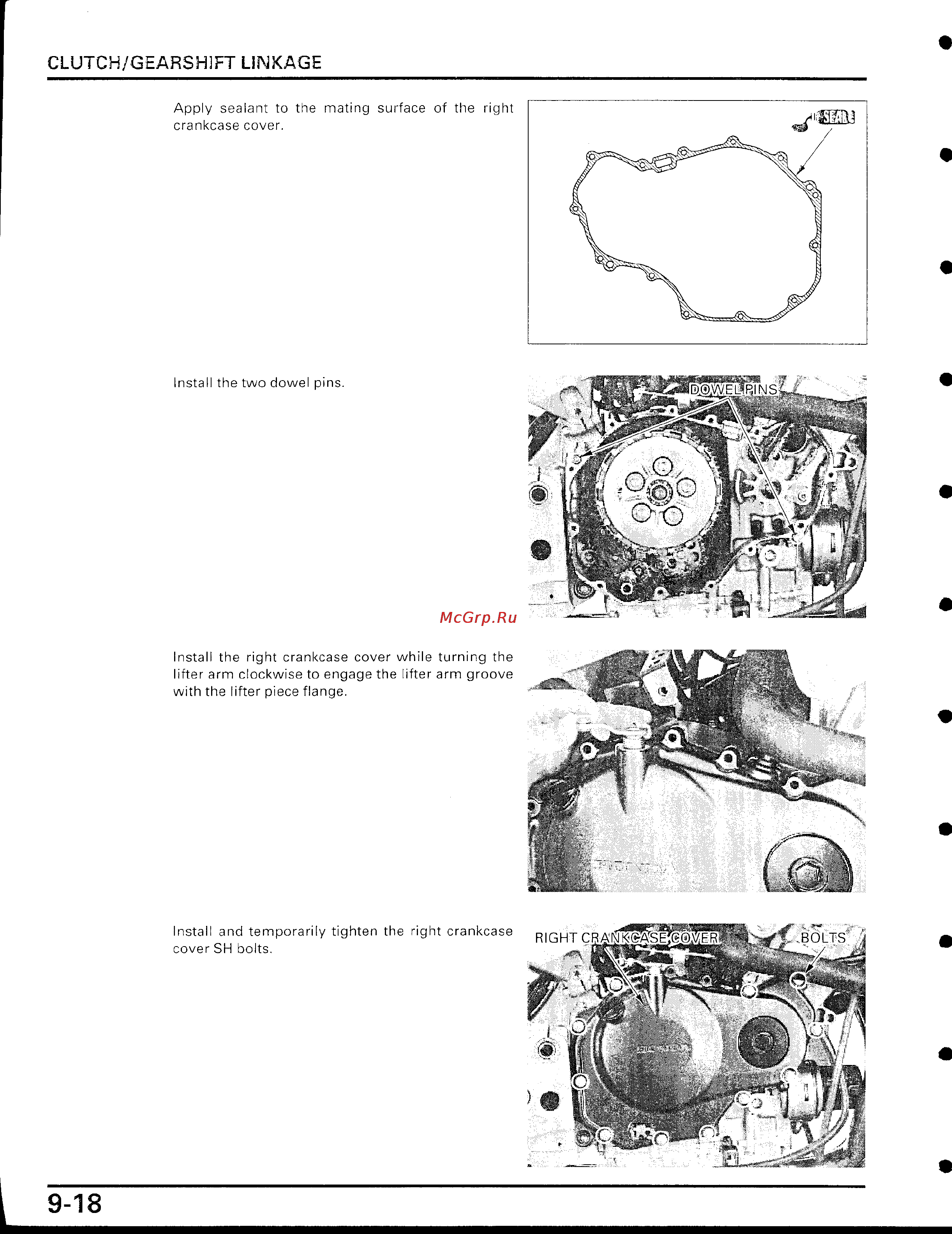

CLUTCH/GEARSHIFT
LINKAGE
Apply sealant to the mating surface of the right
crankcase cover
.
Install and temporarily tighten the right crankcase
cover SH bolts
.
:Z
e
Install the two dowel pins
.
~
I
-ff
Install the right crankcase cover while turning the
lifter arm clockwise to engage the lifter arm groove
with the lifter piece flange
.
RIGHT C
DLTS
0
0
10
0
0
