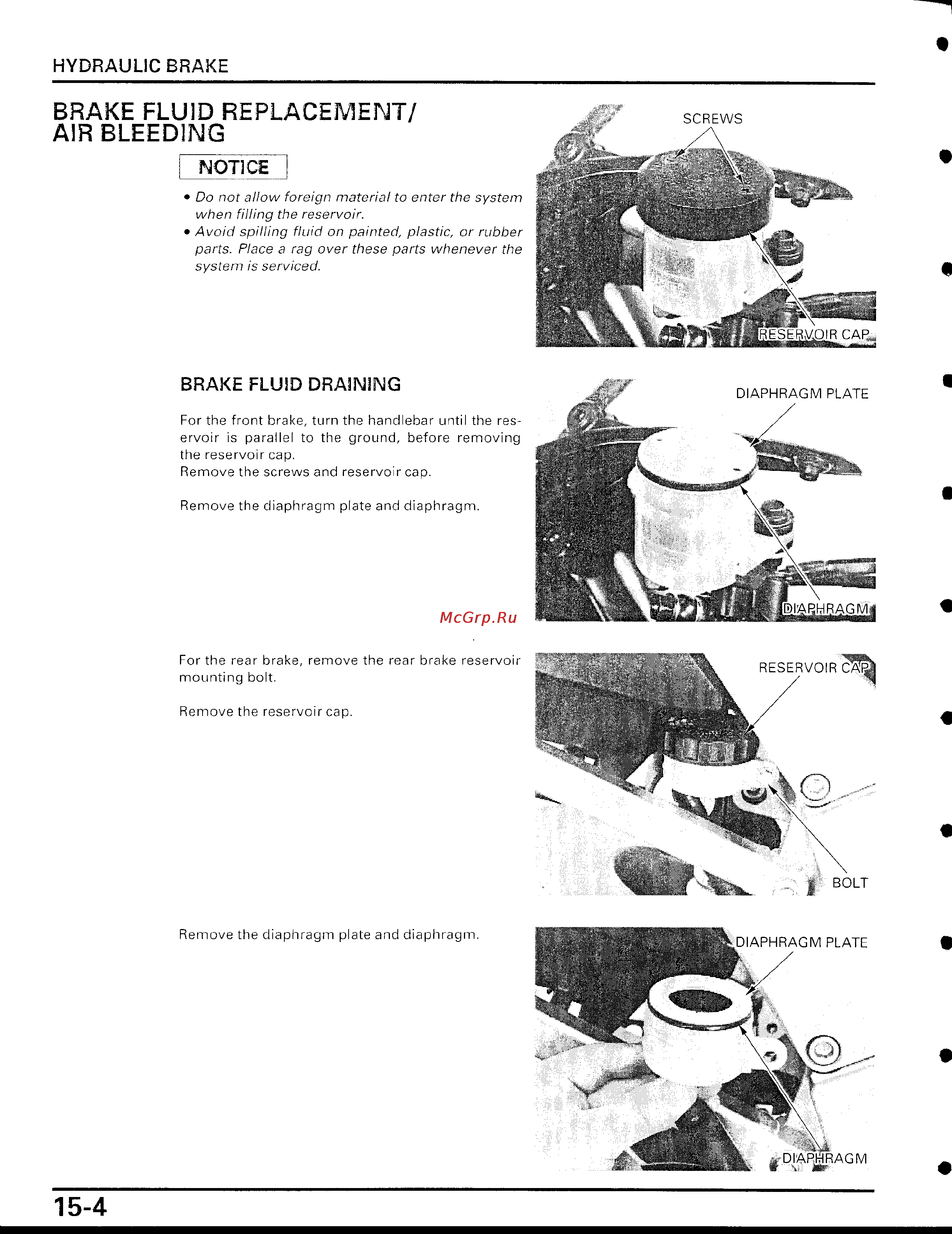

HYDRAULIC
BRAKE
BRAKE FLUID REPLACEMENT/
AIR BLEEDING
NOTICE
•
~~
Do not allow foreign material to enter the system
when filling the reservoir
.
•
~~
Avoid spilling fluid on painted, plastic, or rubber
parts
. Place a rag over these parts whenever the
system is serviced
.
BRAKE FLUID DRAINING
For the front brake, turn the handlebar until the res-
ervoir is parallel to the ground, before removing
the reservoir cap
.
Remove the screws and reservoir cap
.
Remove the diaphragm plate and diaphragm
.
For the rear brake, remove the rear brake reservoir
mounting bolt
.
Remove the reservoir cap
.
Remove the diaphragm plate and diaphragm
.
SCREWS
J
IAPHRoG
~
a
DIAPHRAGM PLATE
RESERVOIR CA!
BOLT
DIAPHRAGM PLATE
0
0
1
4
0
0
0
0
DIAPHRAGM
X
