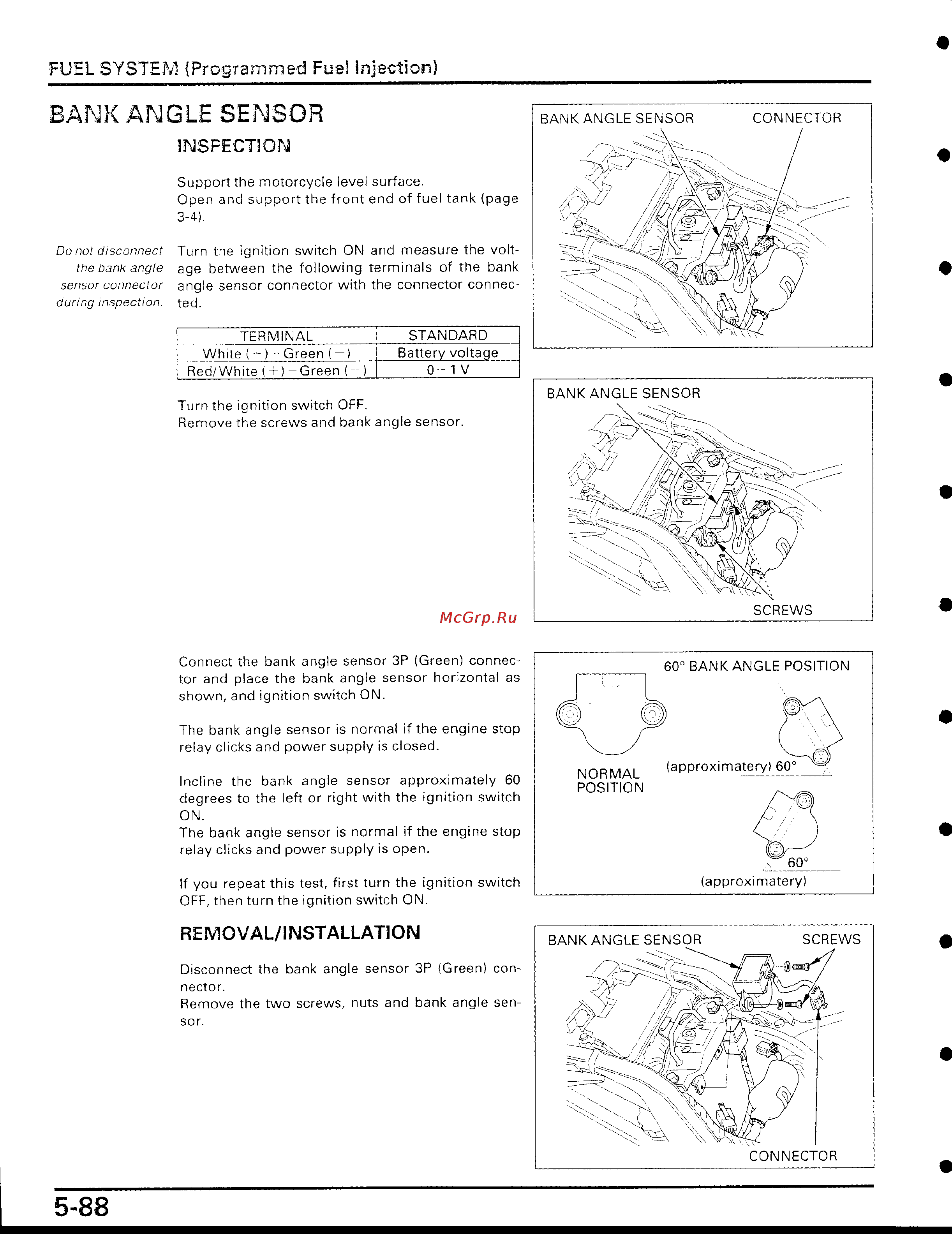

FUEL SYSTEM (Programmed Fuel Injection)
BANK ANGLE SENSOR
INSPECTION
Support the motorcycle level surface
.
Open and support the front end of fuel tank (page
3-4)
.
Do not disconnect
Turn the ignition switch ON and measure the volt-
the bank angle
age between the following terminals of the bank
sensor connector
angle sensor connector with the connector connec-
during inspection
.
ted
.
5-88
~
TERMINAL
~
STANDARD
White (-)-Green
(-)
~
Battery voltage
Red/White
(-)
-
Green (--)
~
0--1 V
Turn the ignition switch OFF
.
Remove the screws and bank angle sensor
.
Connect the bank angle sensor 3P (Green) connec-
tor and place the bank angle sensor horizontal as
shown, and ignition switch ON
.
The bank angle sensor is normal if the engine stop
relay clicks and power supply is closed
.
Incline the bank angle sensor approximately 60
degrees to the left or right with the ignition switch
ON
.
The bank angle sensor is normal if the engine stop
relay clicks and power supply is open
.
If you repeat this test, first turn the ignition switch
OFF, then turn the ignition switch ON
.
REMOVAL/INSTALLATION
Disconnect the bank angle sensor 3P (Green) con-
nector
.
Remove the two screws, nuts and bank angle sen-
sor
.
BANK ANGLE SENSOR
CONNECTOR
BANK ANGLE SENSOR
SCREWS
60° BANK ANGLE POSITION
NORMAL
~
(approxima
ter
y) 60°
POSITION
60°
(approximatery)
BANK ANGLE SENSOR
J
X
J
F
SCREWS
CONNECTOR
