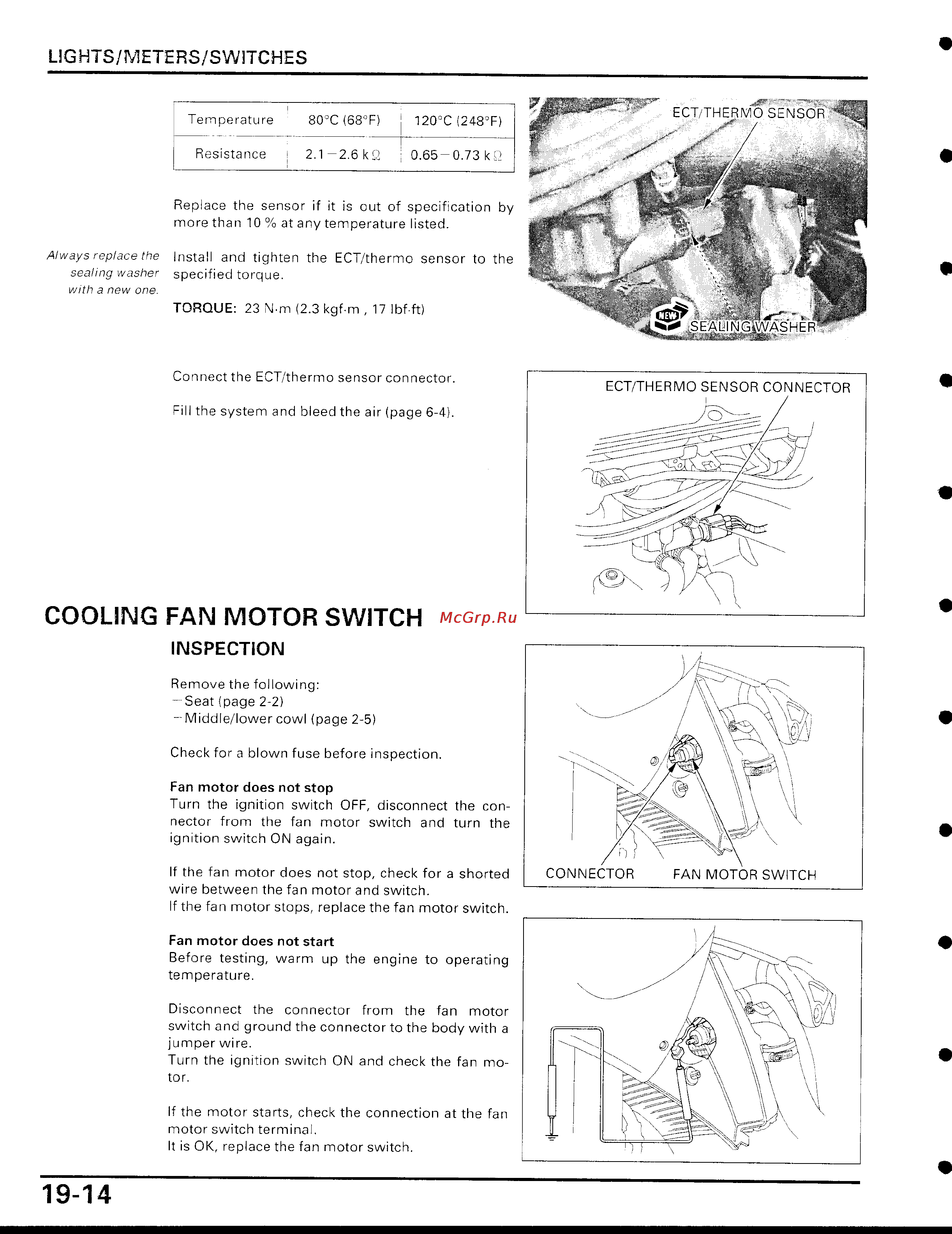

LIGHTS/METERS/SWITCHES
Temperature
~
80°C (68°F)
~
120°C (248°F)
Resistance
~
2
.1
-
2
.6kS
~
0
.65-0
.73kQ
Replace the sensor if it is out of specification by
more than 10 % at any temperature listed
.
Always replace the
Install and tighten the ECT/thermo sensor to the
sealing washer
specified torque
.
with a new one
.
TORQUE
:
23 N
.m (2
.3 kgf
.m, 17 lbf
.ft)
Connect the ECT/thermo sensor connector
.
Fill the system and bleed the air (page
6-4)
.
COOLING FAN MOTOR SWITCH
INSPECTION
Remove the following
:
Seat (page 2-2)
Middle/lower cowl (page 2-5)
Check for a blown fuse before inspection
.
Fan motor does not stop
Turn the ignition switch OFF, disconnect the con-
nector from the fan motor switch and turn the
ignition switch ON again
.
If the fan motor does not stop, check for a shorted
wire between the fan motor and switch
.
If the fan motor stops, replace the fan motor switch
.
Fan motor does not start
Before testing, warm up the engine to operating
temperature
.
Disconnect the connector from the fan motor
switch and ground the connector to the body with a
jumper wire
.
Turn the ignition switch ON and check the fan mo-
tor
.
If the motor starts, check the connection at the fan
motor switch terminal
.
It is OK, replace the fan motor switch
.
ECT/THFRfV1O SENSOR
ASHEF
ECT/THERMO SENSOR CONNECTOR
i
1
1
CONNECTOR
~
FAN MOTOR SWITCH
I
0
I
i
