![Honda CBR929RR — инструкция по подключению датчика скорости мотоцикла [140/488]](/icons/site-icon-64.png){kind=icon}
Honda CBR929RR — инструкция по подключению датчика скорости мотоцикла [140/488]
Превью страниц
Страница 140 /
488

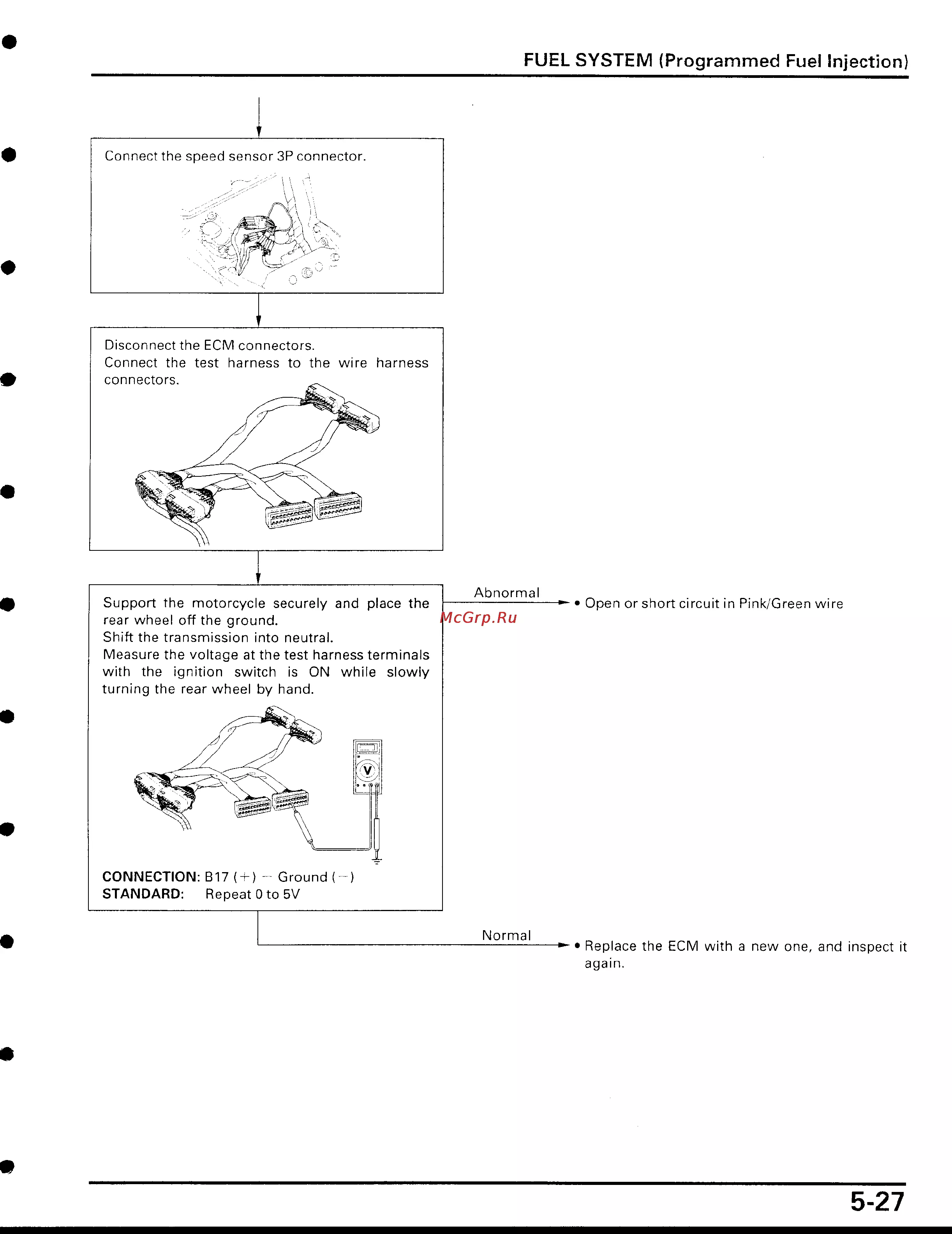

![Honda CBR929RR [140/488] Turning the rear wheel by han](/views2/1121098/page140/bg8c.png)
Connect the speed sensor 3P connector
.
1
Disconnect the ECM connectors
.
Connect the test harness to the wire harness
connectors
.
\T
Support the motorcycle securely and place the
rear wheel off the ground
.
Shift the transmission into neutral
.
Measure the voltage at the test harness terminals
with the ignition switch is ON while slowly
turning the rear wheel by hand
.
1771
CONNECTION
:
B17 (+)
--
Ground
(-)
STANDARD
:
Repeat 0 to 5V
Abnormal
Normal
FUEL SYSTEM (Programmed Fuel Injection)
•
~
Open or short circuit in Pink/Green wire
I
*Replace the ECM with a new one, and inspect it
again
.
