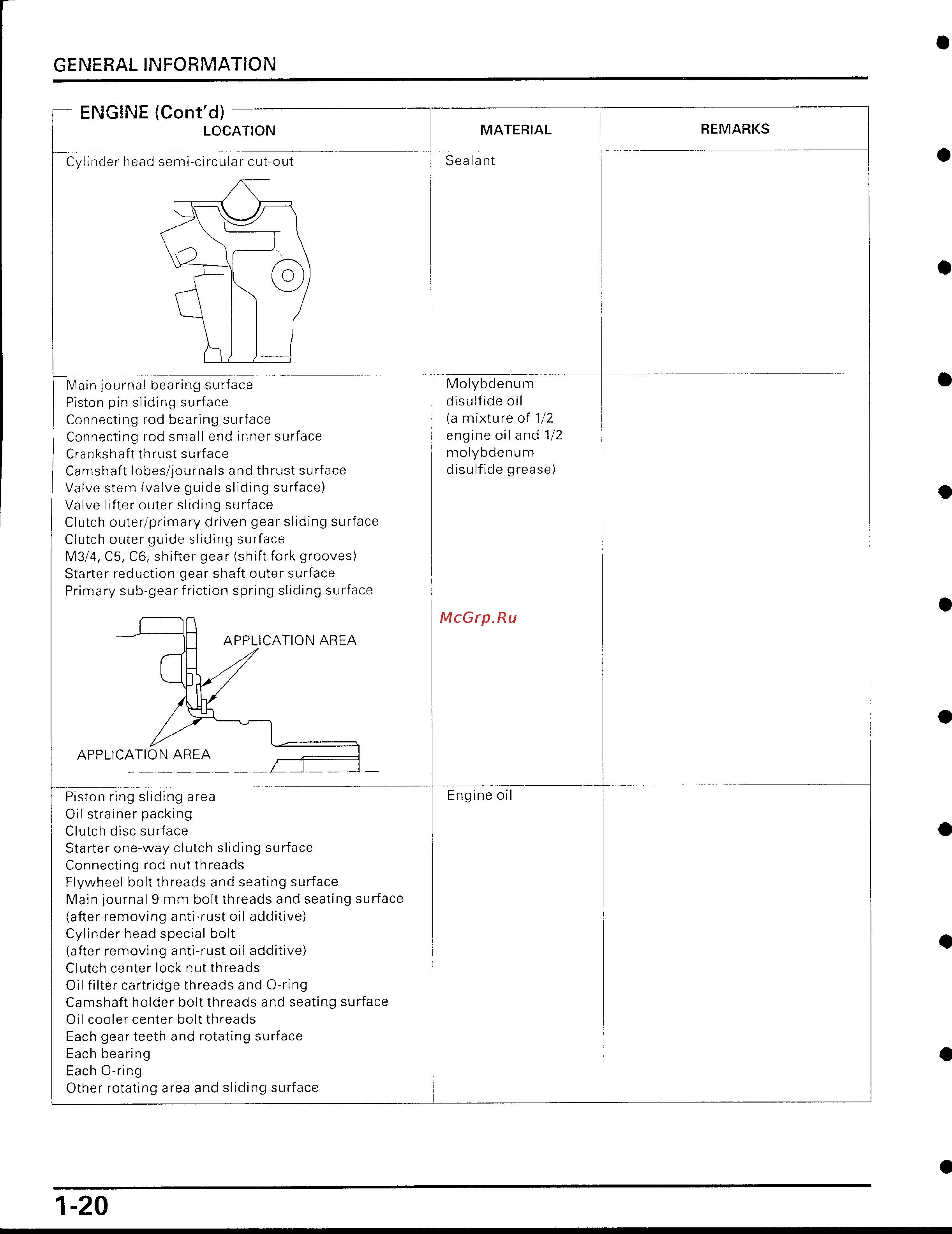

GENERAL INFORMATION
ENGINE (Cont'd)
LOCATION
Cylinder head semi-circular cut-out
Main journal bearing surface
Piston pin sliding surface
Connecting rod bearing surface
Connecting rod small end inner surface
Crankshaft thrust surface
Camshaft lobes/journals and thrust surface
Valve stem (valve guide sliding surface)
Valve lifter outer sliding surface
Clutch outer/primary driven gear sliding surface
Clutch outer guide sliding surface
M3/4, C5, C6, shifter gear (shift fork grooves)
Starter reduction gear shaft outer surface
Primary sub-gear friction spring sliding surface
APPLICATION AREA
APPLICATION AREA
Piston ring sliding area
Oil strainer packing
Clutch disc surface
Starter one-way clutch sliding surface
Connecting rod nut threads
Flywheel bolt threads and seating surface
Main journal 9 mm bolt threads and seating surface
(after removing anti-rust oil additive)
Cylinder head special bolt
(after removing anti-rust oil additive)
Clutch center lock nut threads
Oil filter cartridge threads and O-ring
Camshaft holder bolt threads and seating surface
Oil cooler center bolt threads
Each gear teeth and rotating surface
Each bearing
Each 0-ring
Other rotating area and sliding surface
Sealant
MATERIAL
Molybdenum
disulfide oil
(a mixture of 1/2
engine oil and 1/2
molybdenum
disulfide grease)
Engine oil
REMARKS
