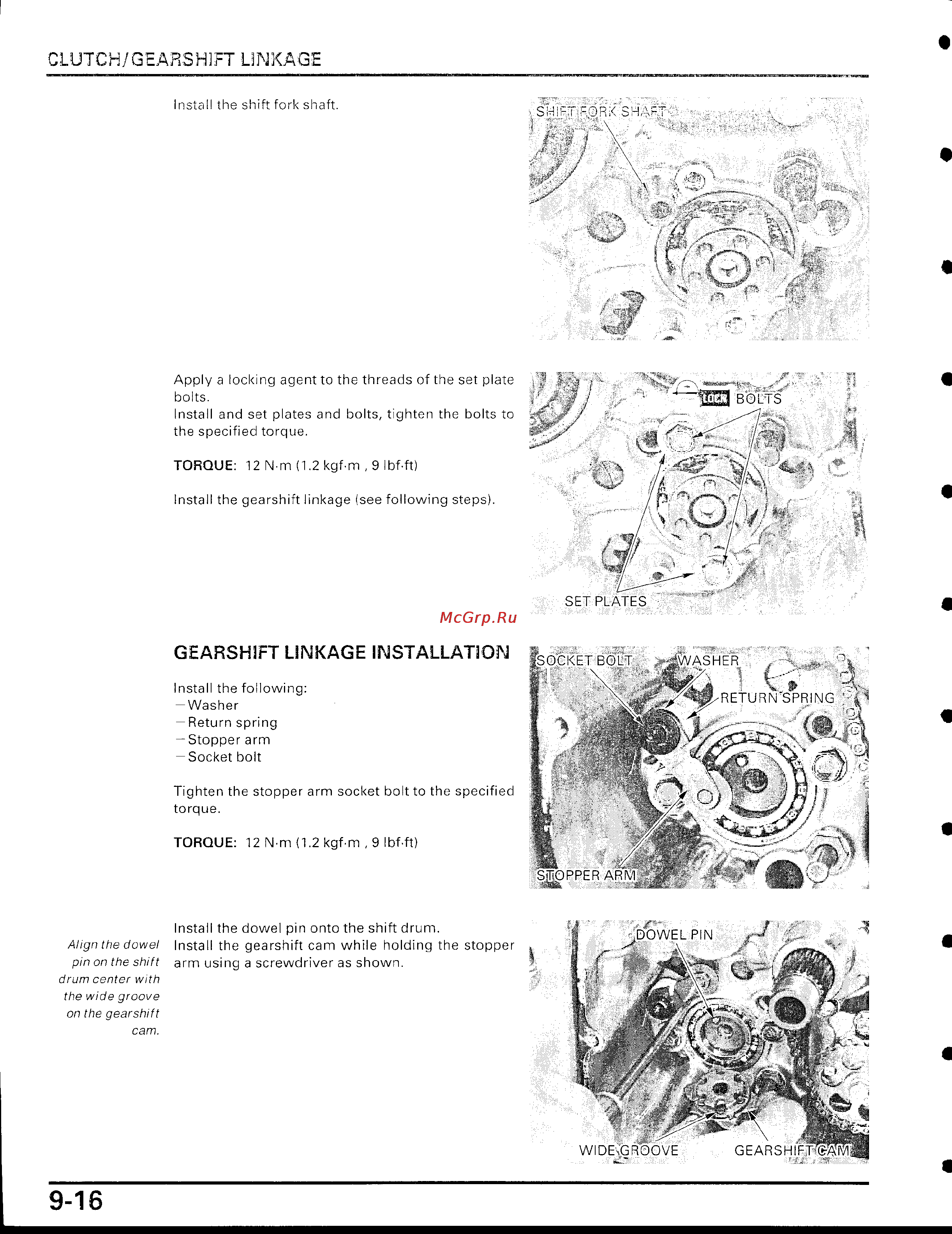

CLUTC-JIGEAFSH]FT LINKAGE
Align the dowel
pin on the shift
drum center with
the wide groove
on the gearshift
cam
.
Install the shift fork shaft
.
Apply a locking agent to the threads of the set plate
bolts
.
Install and set plates and bolts, tighten the bolts to
the specified torque
.
TORQUE
: 12 N-m (1
.2 kgf
.m, 9 lbf
•f
t)
Install the gearshift linkage (see following steps)
.
GEARSHIFT LINKAGE INSTALLATION
Install the following
:
-Washer
-Return spring
-Stopper arm
-Socket bolt
Tighten the stopper arm socket bolt to the specified
torque
.
TORQUE
:
12 N
•m
(1
.2 kgf
•m
,
9 lbf-ft)
Install the dowel pin onto the shift drum
.
Install the gearshift cam while holding the stopper
arm using a screwdriver as shown
.
y
"
J
SET PLATES
SOC <ET BOLT
~
T"IASHER
OPPER AR'
.I
DOWEL PIN
B, STS
RETURN SPRING
WIDE
. GROOVE
~
GEARSHIFT -viv
