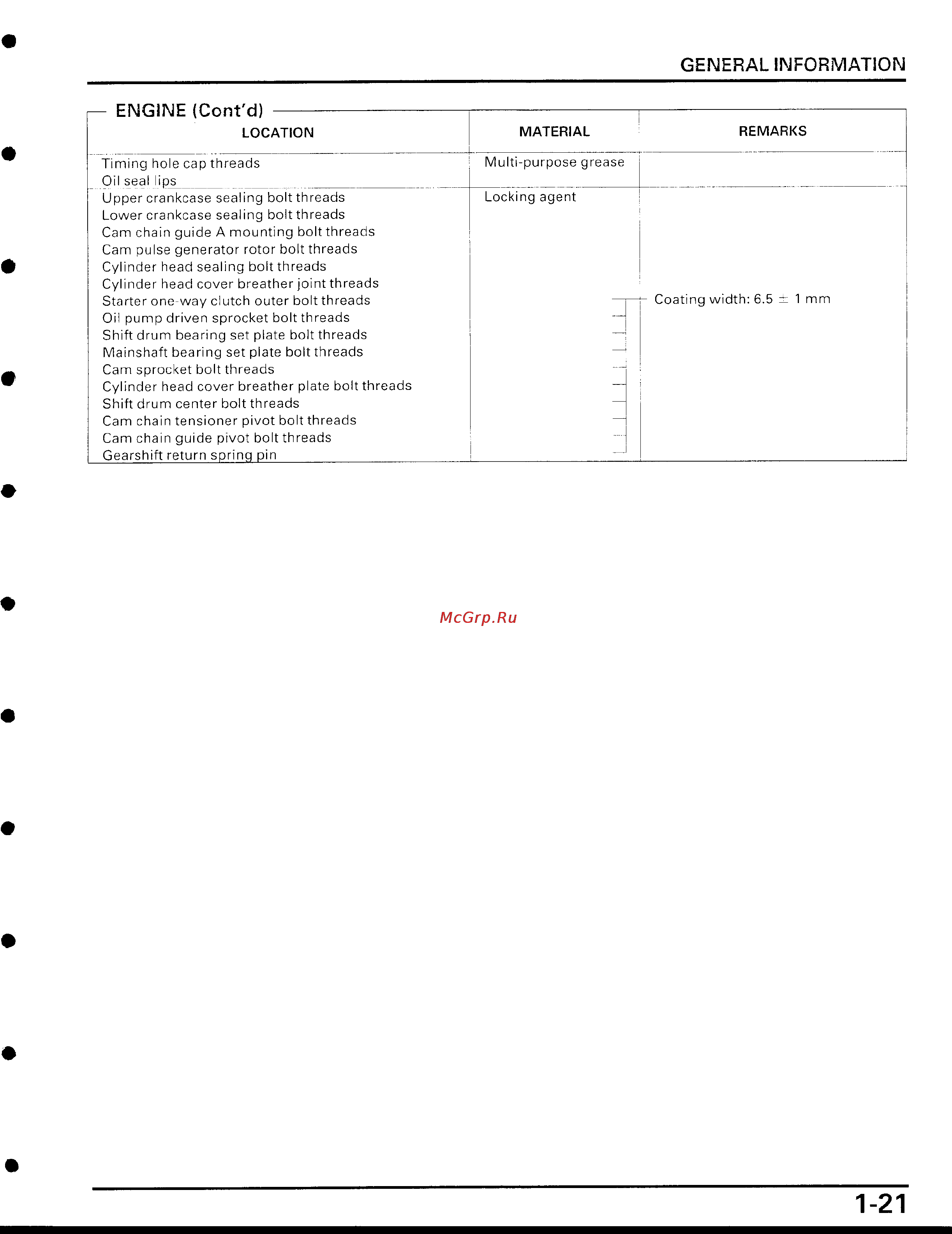

Honda CBR929RR [21/488] Page 21
![Honda CBR929RR [21/488] Page 21](/views2/1121098/page21/bg15.png)
-
ENGINE (Cont'd)
LOCATION
Timing hole cap threads
Oil seal
lips
Upper crankcase sealing bolt threads
Lower crankcase sealing bolt threads
Cam chain guide A mounting bolt threads
Cam pulse generator rotor bolt threads
Cylinder head sealing bolt threads
Cylinder head cover breather joint threads
Starter one-way clutch outer bolt threads
Oil pump driven sprocket bolt threads
Shift drum bearing set plate bolt threads
Mainshaft bearing set plate bolt threads
Cam sprocket bolt threads
Cylinder head cover breather plate bolt threads
Shift drum center bolt threads
Cam chain tensioner pivot bolt threads
Cam chain guide pivot bolt threads
Gearshift return spring pin
MATERIAL
~
REMARKS
Multi-purpose grease
Locking agent
GENERAL
INFORMATION
Coating width
: 6
.5
-
1 mm
