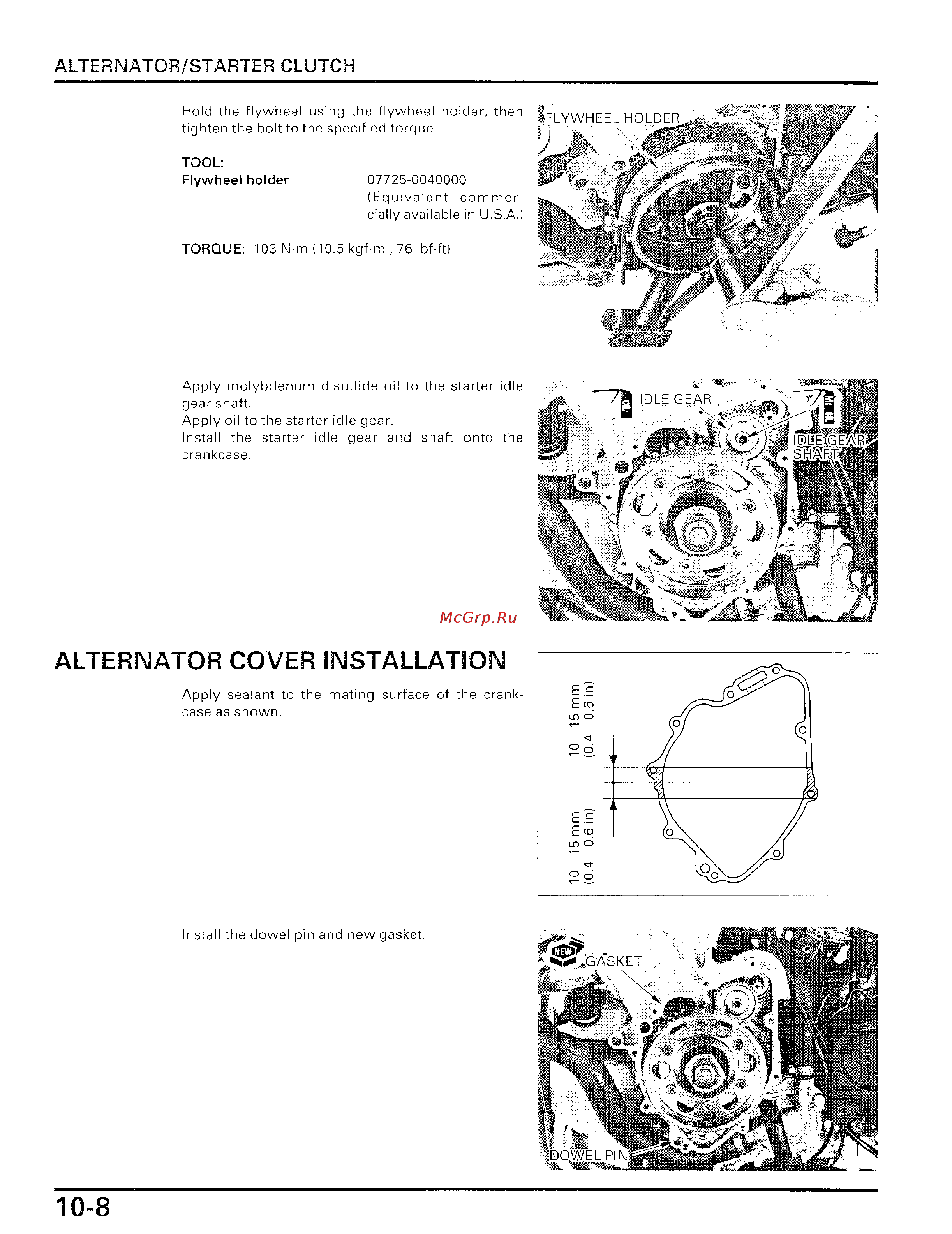

ALTERNATOR/STARTER CLUTCH
Hold the flywheel using the flywheel holder, then
tighten the bolt to the specified torque
.
TOOL
:
Flywheel holder
~
07725-0040000
(Equivalent commer-
cially available in
U
.S .A
.)
TORQUE
:
103 N-m (10
.5 kgf
•m
,
76 lbf
.ft)
Apply molybdenum disulfide oil to the starter idle
gear shaft
.
Apply oil to the starter idle gear
.
Install the starter idle gear and shaft onto the
crankcase
.
ALTERNATOR COVER INSTALLATION
Apply sealant to the mating surface of the crank-
case as shown
.
Install the dowel pin and new gasket
.
FLYWHEEL H01 DER
IDLE GEAR
E
.E
E co
Ln
o
0
E
E
co
~
0
In
o
0
0
0
0
IMP
00
,
0
I
e
0
0
0
%i
GASKET
DObvHl PI
E
4
r
