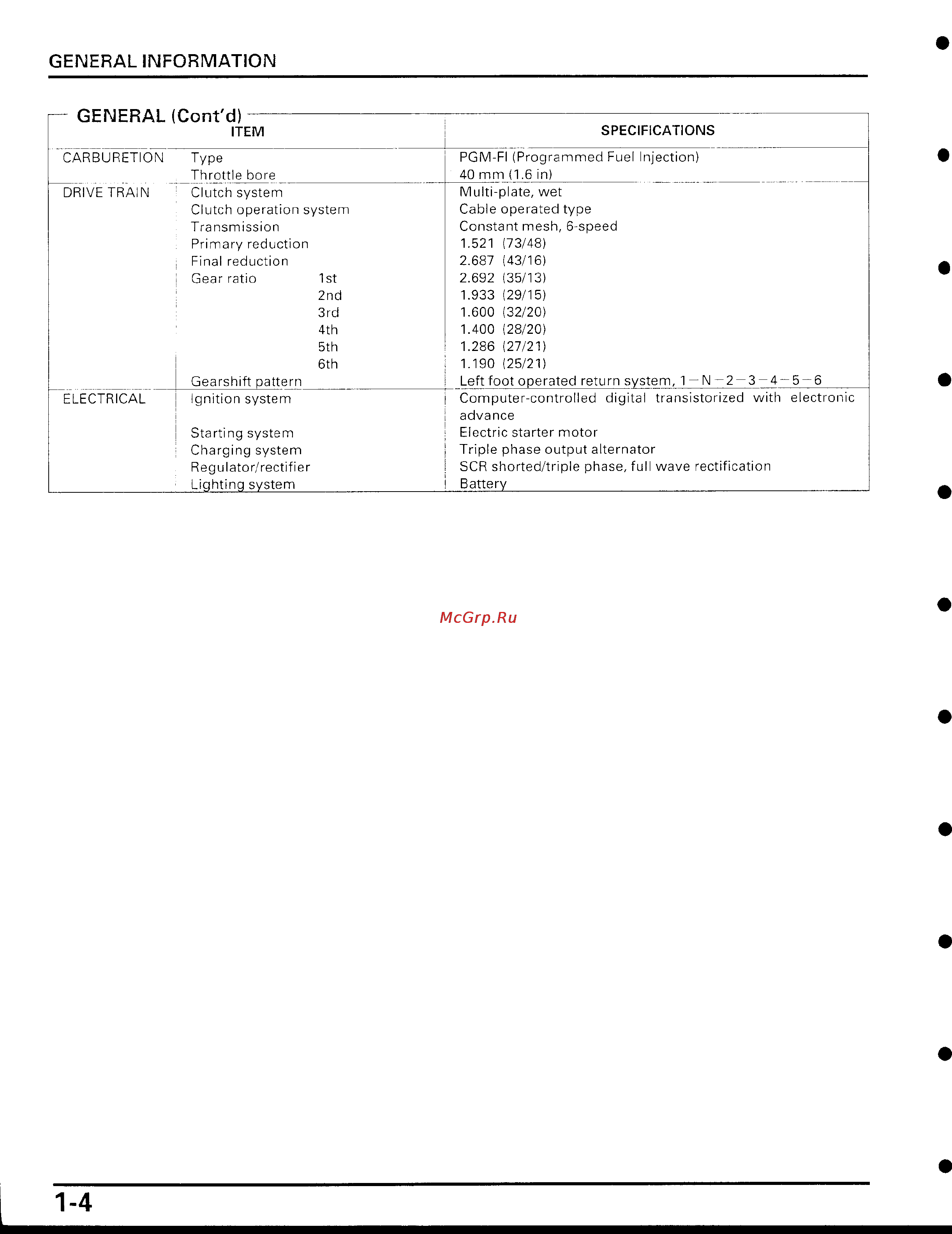

GENERAL INFORMATION
-
GENERAL (Cont'd)
ITEM
CARBURETION
~
Type
Throttl
e
bore
DRIVE TRAIN
~
Clutch system
Clutch operation system
Transmission
Primary reduction
Final reduction
Gear ratio
~
1st
2nd
3rd
4th
5th
6th
Gearshift pattern
ELECTRICAL
~
Ignition system
Starting system
Charging system
Regulator/rectifier
Lighting system
SPECIFICATIONS
PGM-FI (Programmed Fuel Injection)
~
40 mm
(1
.6 in)
~
Multi-plate, wet
Cable operated type
Constant mesh, 6-speed
1
.521 (73/48)
2
.687 (43/16)
2
.692 (35/13)
1
.933 (29/15)
1
.600 (32/20)
1
.400 (28/20)
1
.286 (27/21)
1
.190 (25/21)
Left
foot operated return system, 1-N
-2-3-4-5-6
Computer-controlled digital transistorized with electronic
advance
Electric starter motor
Triple phase output alternator
SCR shorted/triple phase, full wave rectification
Battery
