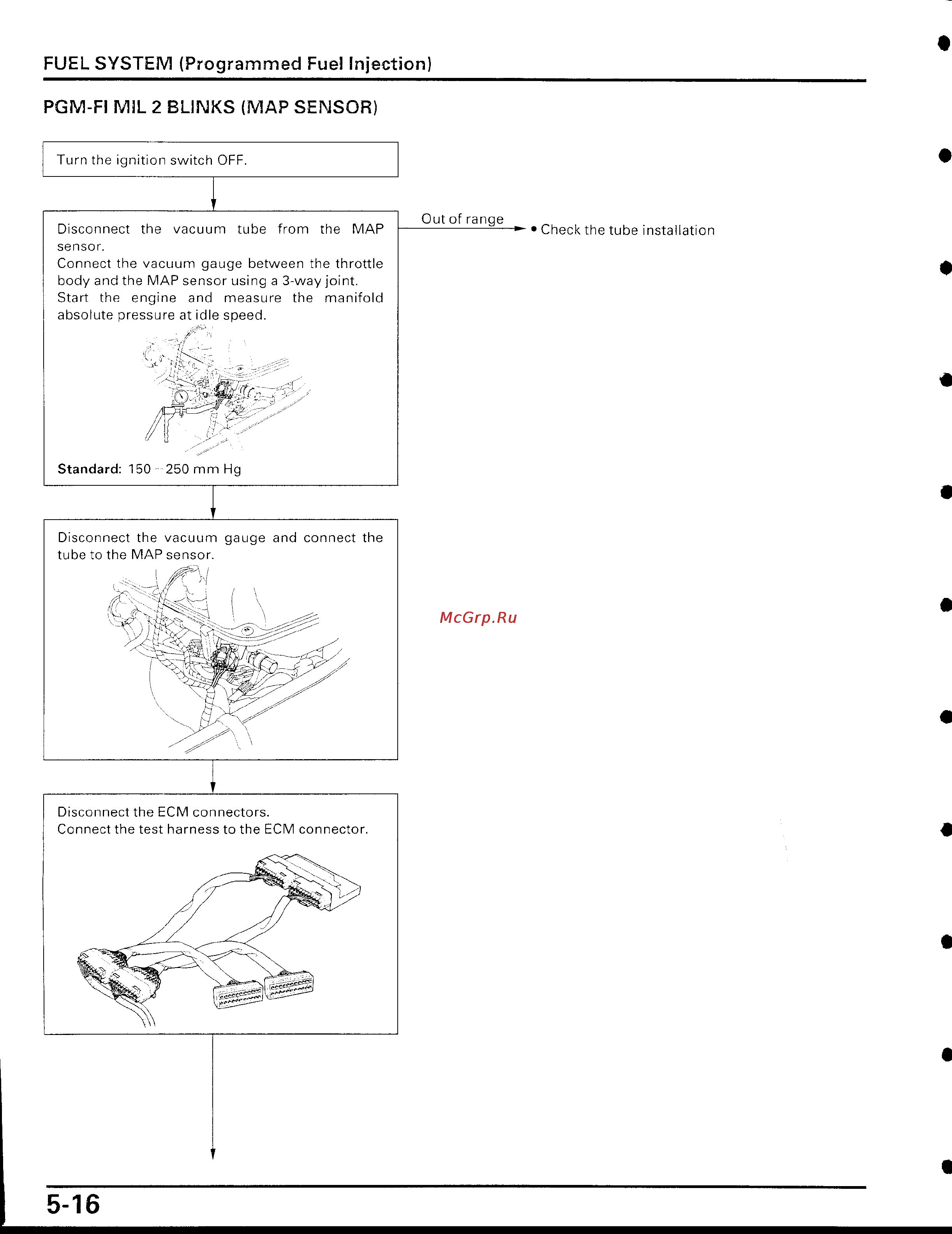

FUEL SYSTEM (Programmed
Fuel Injection)
PGM-Fl MIL 2
BLINKS (MAP SENSOR)
Turn the ignition switch OFF
.
Disconnect the vacuum tube from the MAP
sensor
.
Connect the vacuum gauge between the throttle
body and the MAP sensor using a 3-way joint
.
Start the engine and measure the manifold
absolute pressure at idle speed
.
Standard
:
150--250 mm Hg
Disconnect the vacuum gauge and connect the
tube to the MAP sensor
.
j
Disconnect the ECM connectors
.
Connect the test harness to the ECM connector
.
9
Out of range
•
~
Check the tube installation
