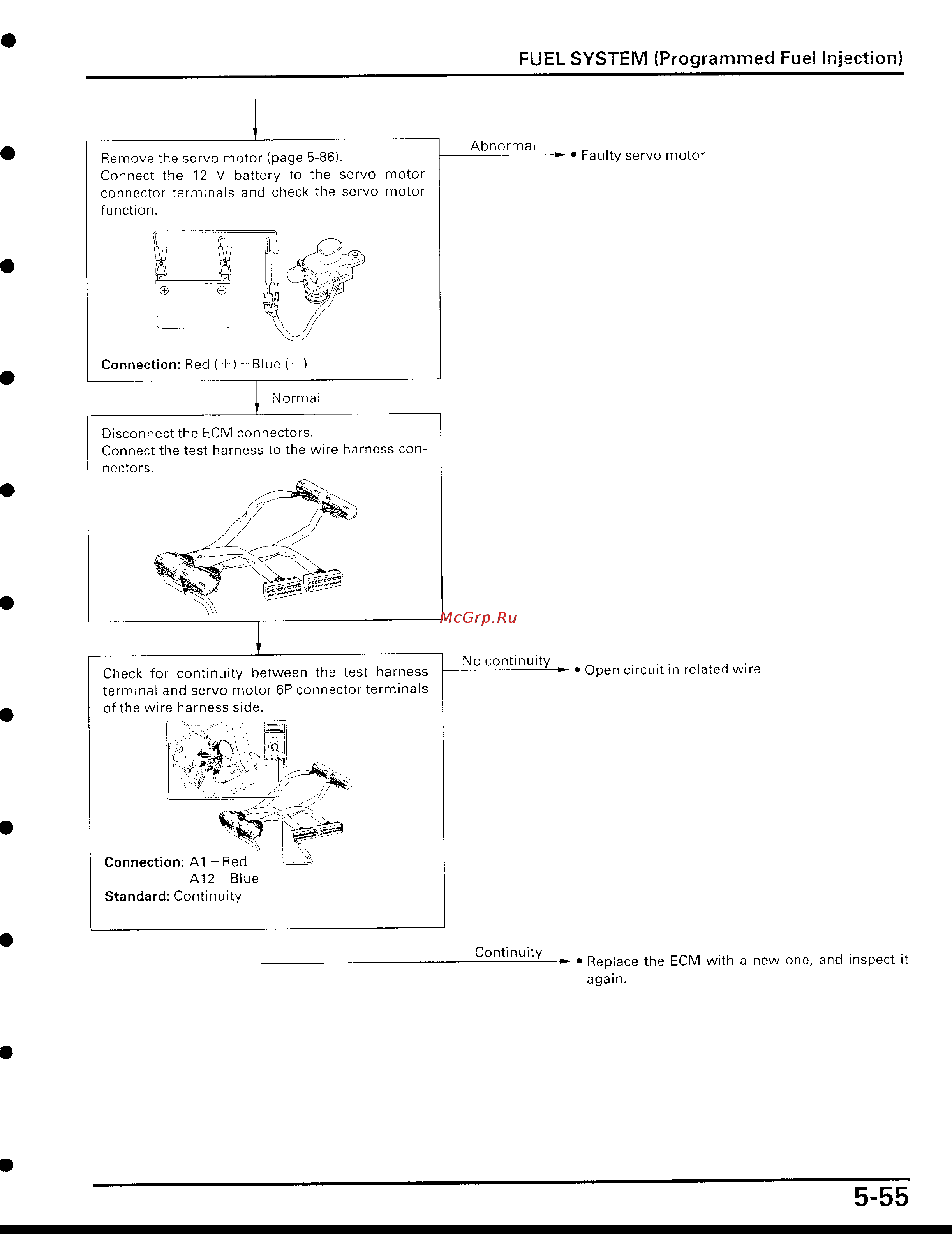

Honda CBR929RR [168/488] Page 55
![Honda CBR929RR [168/488] Page 55](/views2/1121098/page168/bga8.png)
Remove the servo motor (page 5-86)
.
Connect the 12 V battery to the servo motor
connector terminals and check the servo motor
function
.
0+
~
e
Connection
:
Red
(+)- Blue(-)
Disconnect the ECM connectors
.
Connect the test harness to the wire harness con-
nectors
.
Check for continuity between the test harness
terminal and servo motor 6P connector terminals
of the wire harness side
.
F1
_
-1
Connection
:
Al -Red
A12-Blue
Standard
:
Continuity
Normal
Abnormal
No continuity
Continuity
FUEL SYSTEM (Programmed Fuel Injection)
•
~
Faulty servo motor
•
~
Open circuit in related wire
*Replace the ECM with a new one, and inspect it
again
.
