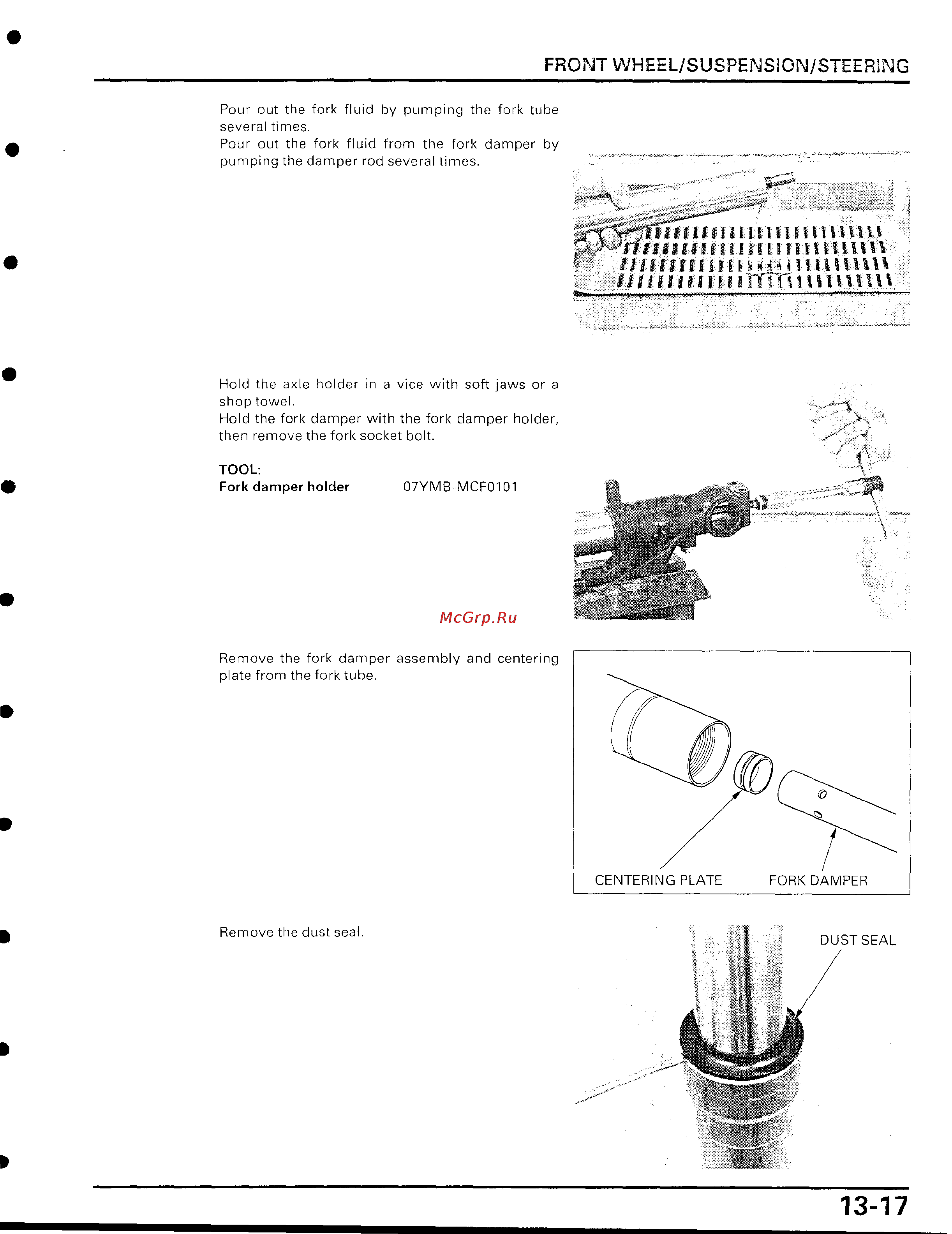

0
Pour out the fork fluid by pumping the fork tube
several times
.
•
~~
Pour out the fork fluid from the fork damper by
pumping the damper rod several times
.
0
Hold the axle holder in a vice with soft jaws or a
shop towel
.
Hold the fork damper with the fork damper holder,
then remove the fork socket bolt
.
TOOL
:
is
~
Fork damper holder
~
07YMB-MCFO101
Remove the fork damper assembly and centering
plate from the fork tube
.
Remove the dust seal
.
FRONT WHEEL/SUSPENSION/STEER] G
In
~
I
f
e
f
*0
CENTERING PLATE
~
FORK DAMPER
DUST SEAL
