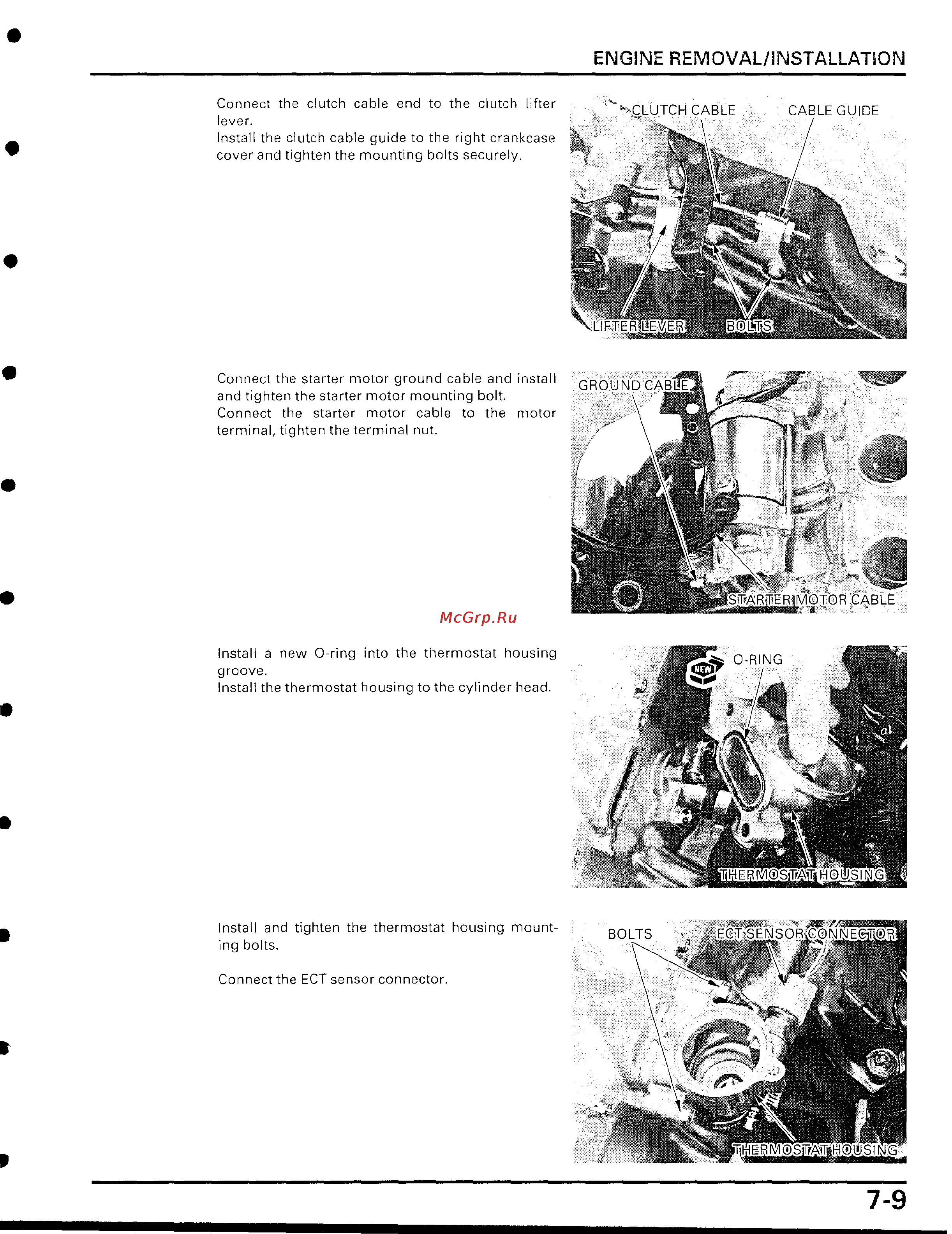

Connect the starter motor ground cable and install
and tighten the starter motor mounting bolt
.
Connect the starter motor cable to the motor
terminal, tighten the terminal nut
.
Connect the clutch cable end to the clutch lifter
lever
.
Install the clutch cable guide to the right crankcase
cover and tighten the mounting bolts securely
.
Install and tighten the thermostat housing mount-
ing bolts
.
Connect the ECT sensor connector
.
GROUND
ENGINE REMOVAL/INSTALLATION
CLUTCH CABLE
~
CABLE GUIDE
k
3
BOLTS
~
F cep,
cn
-
MOTOR CH
LE
Install a new O-ring into the thermostat housing
~
0 RING
groove
.
Install the thermostat housing to the cylinder head
.
~
S
v
r-
HERMOSTTAiT HOUSINt-
niF'
Tn
HERMOSiTHyi_hUVo
vG
