Honda CBR929RR [324/488] Page 8

CRANKCASE/PISTON/CYLINDER

Numbers (A or B)

on the crank

weight are the

codes for the

crankpin O

starting from the

left

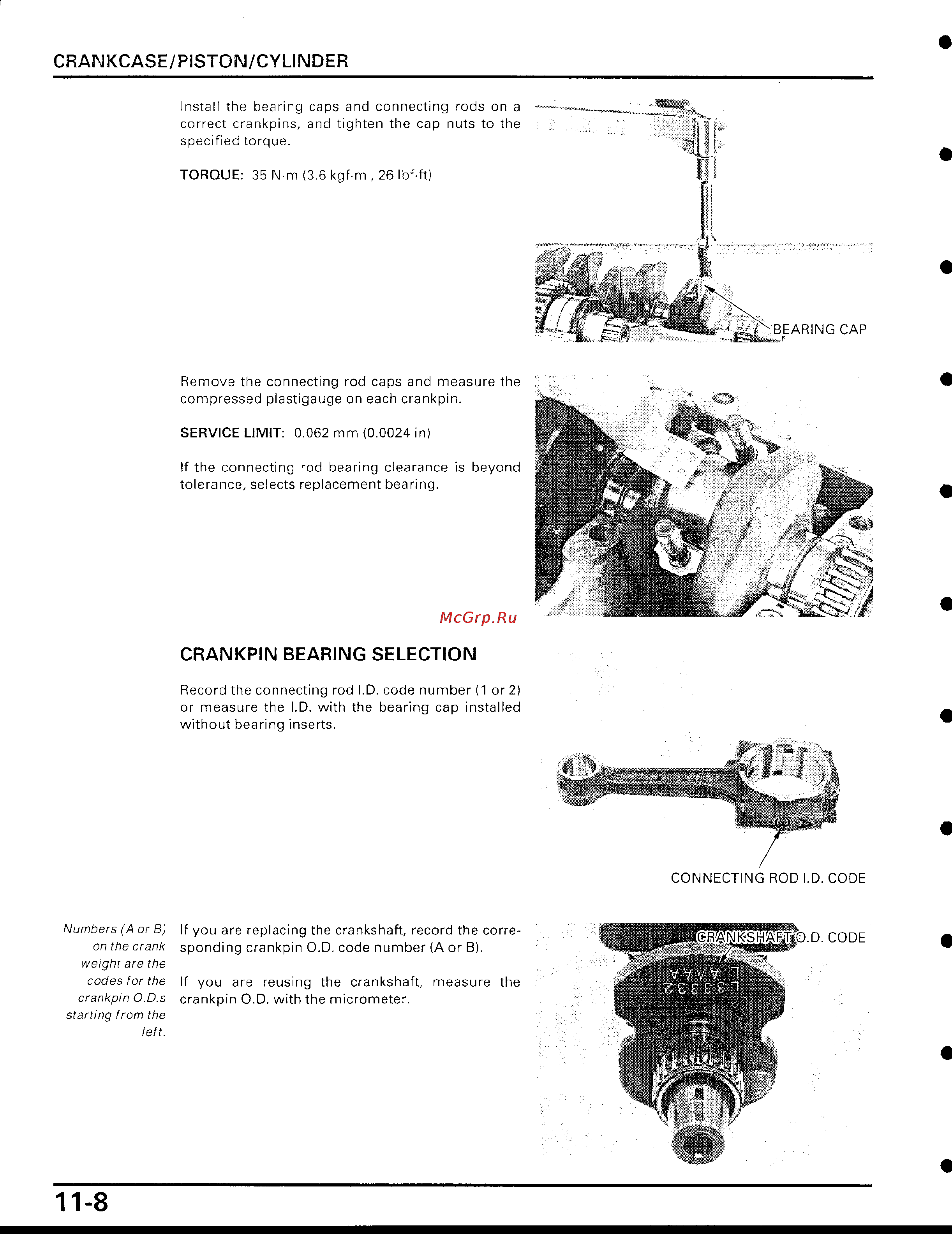

Install the bearing caps and connecting rods on a

correct crankpins, and tighten the cap nuts to the

specified torque

TORQUE

: 35 N

•m

.6 kgf

.m, 26 Ibf

.ft)

CRANKPIN BEARING SELECTION

Record the connecting rod I

. code number (1 or 2)

or measure the I

. with the bearing cap installed

without bearing inserts

If you are replacing the crankshaft, record the corre-

sponding crankpin O

. code number (A or B)

If you are reusing the crankshaft, measure the

crankpin O

. with the micrometer

CONNECTING ROD I

. CODE

BEARING CAP

, r

Remove the connecting rod caps and measure the

compressed plastigauge on each crankpin

SERVICE LIMIT

: 0

.062 mm (0

.0024 in)

If the connecting rod bearing clearance is beyond

tolerance, selects replacement bearing

. CODE
